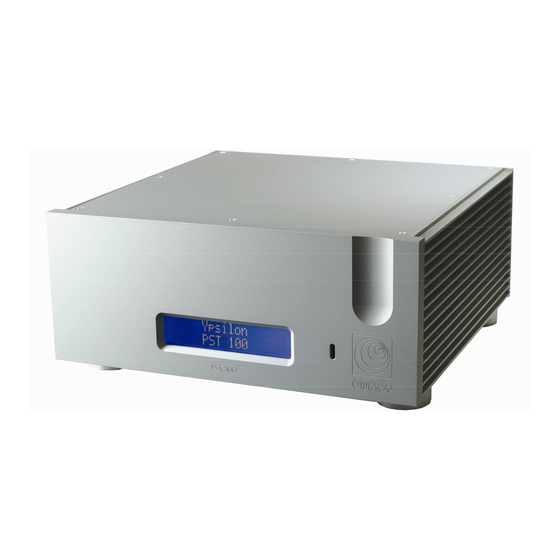

Ypsilon PST 100 MKII Owner's Manual

Ypsilon PST 100 MKII Owner's Manual

Pre amplifier

Advertisement

PST 100
YPSILON
PRE
AMPLIFIER
MKII
OWNERS MANUAL
V2 01/01/2010
©All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PST 100 MKII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ypsilon PST 100 MKII

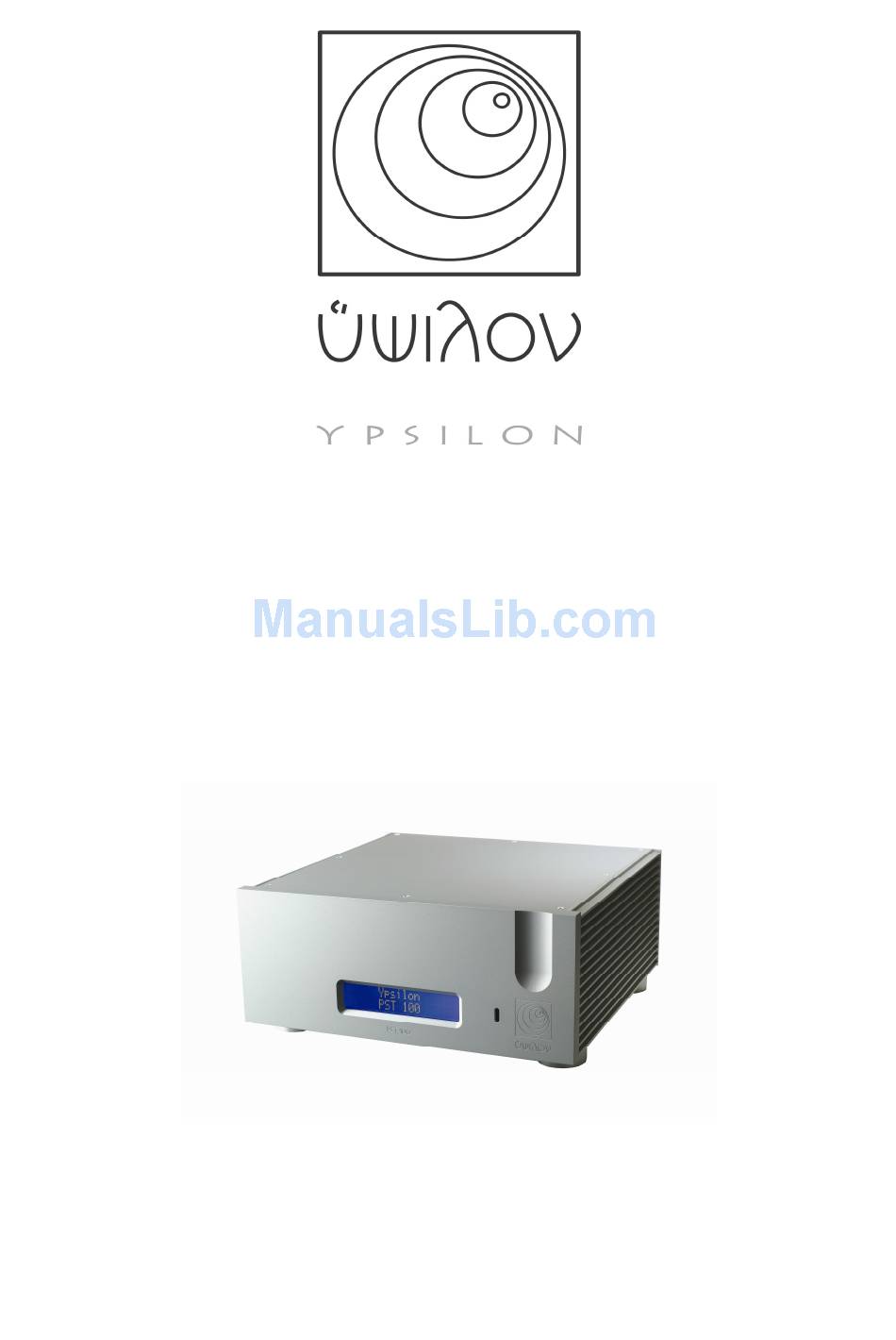

  • Page 1 PST 100 YPSILON AMPLIFIER MKII OWNERS MANUAL V2 01/01/2010 ©All rights reserved...
  • Page 2 INTRODUCTION Thank you for trusting YPSILON ELECTRONICS™. We assure you that you have made an excellent purchase. Your pre-amplifier is made only by the best and most reliable materials and we guarantee it will offer you many hours of music enjoyment.
  • Page 3 PLACEMENT OF THE PST 100 PRE-AMPLIFIER PST-100 pre-amplifier is designed to reduce interference from external magnetic and radio fields. Although placement is not critical, any magnetic fields should be avoided. A solid and sturdy surface should be used as this pre-amplifier has a substantial weight.
  • Page 4: Connecting Cables

    TAKING CARE OF YOUR PST-100 When wanting to clean the PST-100 pre-amplifier always disconnect from the mains electricity and use a clean, slightly damp cloth with no possibility of color running. NEVER CLEAN PRE-AMPLIFIER CASING WHEN DEVICE IS CONNECTED TO MAINS ELECTRICITY. ALWAYS DISCONNECT FROM MAINS ELECTRICITY PRIOR TO ANY SUCH ACT.
  • Page 5: Connecting To The Mains Outlet

    CONNECTING TO THE MAINS OUTLET Your pre-amplifier has a description of the appropriate operation voltage on its back panel. Please make sure not to overlook the specifications. In case you need to operate it in a region with no complying voltage, contact your dealer or the factory. The power cable that you will use must be at least 3 x 1.5 square mm and grounded to the mains outlet.
  • Page 6 CAUTION DO NOT ATTEMPT TO OPEN THIS DEVICE. IN CASE OF ONLY USE THE VOLTAGE MALFUNCTION CONTACT YOUR DEALER OR THE PRINTED ON REAR PANEL MANUFACTURER WARNING: Before any maintenance or placement /connection takes place disconnect the device from electrical outlets. DISCONNECT THE DEVICE WARNING: Never use electrical outlets without earth Use only electrical outlets that are earthed.
  • Page 7: In Case Of Fault

    IN CASE OF FAULT In case of fault never open device. Return to authorized technical agent or manufacturer. In case of part changing only the exact same parts should ever be used and replaced by authorized staff or manufacturer. Otherwise this device is out of Guarantee and will not be compliant with international rules and regulations CONNECTING INPUT CABLES Your PST-100 has six inputs on the back panel.
  • Page 8: Connecting Output Cables

    CONNECTING OUTPUT CABLES There are two types of output connectors on the back panel of the PST-100. Always use only one output type at any one time, either the XLR connector or the RCA connector. It must be pointed out that the XLR connector is unbalanced and pins 1&3 are grounded Only connect to power amplifier.
  • Page 9: Operation

    After completing all the connections on the PST-100 your pre-amplifier is ready to be turned on. When turned on, the front display screen will illuminate and the following message can be read “YPSILON PST-100 mk2” this message will last for 30 seconds and then it will turn to “VOLUME 00 INPUT 1 CD”.
  • Page 10: Remote Control

    REMOTE CONTROL The PST-100 remote control has 6 buttons. Starting from the top the first button is marked “S” and when on “VOL 00” position it is a mode selector for choosing either the ACTIVE or the PASSIVE stage. Further down is the button marked ”D” which is used to turn the display on/off. Further down is the Input selector marked “IN”...
  • Page 11: Program Selection

    PROGRAM SELECTION By using the button “S” on the remote control, when in Vol “00”, either the ACTIVE or the PASSIVE stage of the pre-amplifier can be selected. When choosing the ACTIVE stage the display will illuminate the message “ACTV” and when choosing the PASSIVE stage the message “PASS”...
  • Page 12: Specifications

    SPECIFICATIONS BANDWIDTH 9Hz-100KHz –3db OUTPUT IMPEDANCE 150 ohm INPUT IMPEDANCE 50 Kohm GAIN(in active mode) x 7(16,9db) POWER CONSUMPTION 100 VA maximum DIMENSIONS 400x180x410 (WxHxD)mm WEIGHT 25 Kgr Specifications may change without notice...
