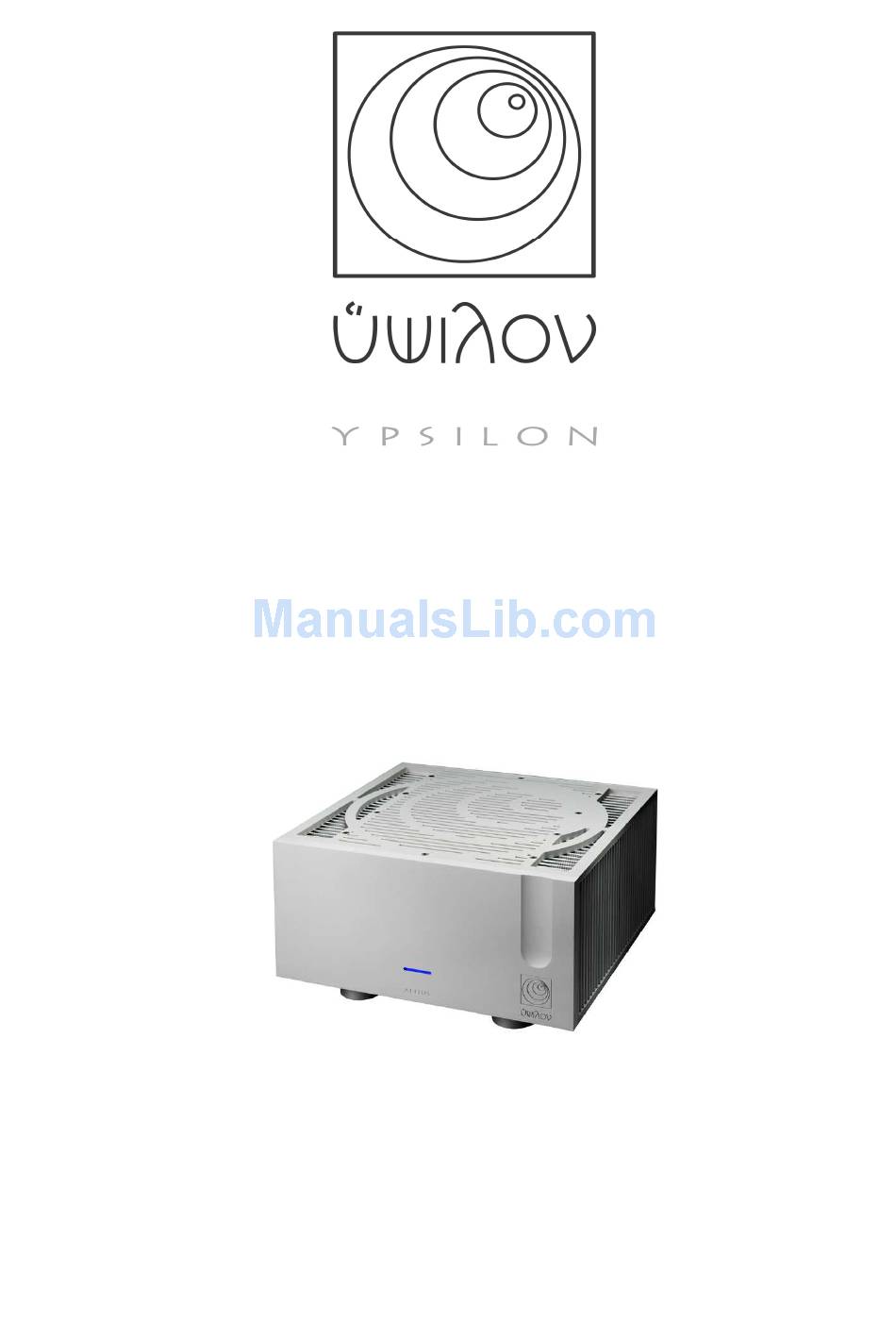

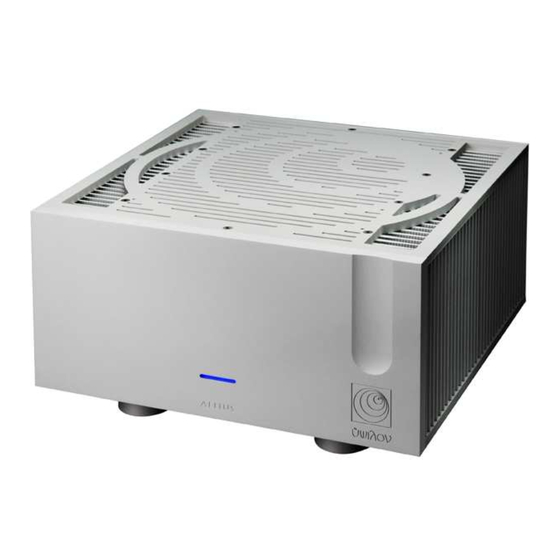

- Page 1 AELIUS YPSILON POWER AMPLIFIER OWNERS MANUAL V1 01/01/20010 ©All rights reserved...
- Page 2 INTRODUCTION Thank you for trusting YPSILON ELECTRONICS™. We assure you that you have made an excellent purchase. Your amplifier is made only by the best and most reliable materials and we guarantee it will offer you many hours of music enjoyment.
-
Page 3: Placement Of The Aelius Power Amplifier
PLACEMENT OF THE AELIUS POWER AMPLIFIER AELIUS power amplifier is designed to reduce interference from external magnetic and radio fields. Although placement is not critical, any magnetic fields should be avoided. A solid and sturdy surface should be used as this amplifier has a substantial weight. - Page 4 TAKING CARE OF YOUR AELIUS POWER AMP When wanting to clean the amplifier always disconnect from the mains electricity and use a clean, slightly damp cloth with no possibility of color running. NEVER CLEAN AMPLIFIER CASING WHEN DEVICE IS CONNECTED TO MAINS ELECTRICITY.
-
Page 5: Connecting To The Mains Outlet
CONNECTING TO THE MAINS OUTLET Your amplifier has a description of the appropriate operation voltage on its back panel. Please make sure not to overlook the specifications. In case you need to operate it in a region with no complying voltage, contact your dealer or the factory. The power cable that you will use must be at least 3 x 1.5 square mm and grounded to the mains outlet. - Page 6 CAUTION DO NOT ATTEMPT TO OPEN THIS DEVICE. IN CASE OF ONLY USE THE VOLTAGE MALFUNCTION CONTACT YOUR DEALER OR THE PRINTED ON REAR PANEL MANUFACTURER WARNING: Before any maintenance or placement /connection takes place disconnect the device from electrical outlets. DISCONNECT THE DEVICE WARNING: Never use electrical outlets without earth.
-
Page 7: Connectivity Inputs
CONNECTIVITY INPUTS AELIUS power amplifier is equipped with two connection inputs. One is XLR and the other is RCA. Do not connect and give signal to both inputs at the same time. Only connect signal from pre-amplifier or home cinema processor. -
Page 8: Balanced/Unbalanced Switch
BALANCED/UNBALANCED SWITCH When using the RCA connector turn the switch located on the back panel of the amplifier to the UNBALANCED position. This is the input the manufacturer recommends. NEVER use RCA inputs with the switch turned to BALANCED position. When using the XLR input turn the switch to the BALANCED position .This is recommended when using long cables from the pre amplifier. - Page 9 CONNECTIVITY OUTPUTS There are two pure copper & gold plated connectors at the rear for connection of speaker cables either by tightening the connector or by using a banana plug. POWERING UP With all the connections made you are ready to turn on the amplifier. The power on switch is located at the backside of the amplifier.
-
Page 10: Break-In Period
BREAK IN PERIOD Every amplifier has had an initial break in time of approximately 100 hours before packing. Still we suggest another 120 to 150 hours of breaking in before reaching its optimum performance. DESCRIPTION The amp’s topology is Push-Pull. It’s input stage is valve and the output stage is with mos-fets. - Page 11 OUTPUT DC VOLTAGE& TEMPERATURE PROTECTION AELIUS is equipped with an electronic circuit that will mute the amplifier in case of DC occurring in the output. This is to protect the speakers from possible damage. If this occurs contact your dealer or the factory.
-
Page 12: Specifications
SPECIFICATIONS OUTPUT POWER BEFORE 200W rms @ 8 ohm CLIPPING 350W rms @4 ohm BANDWIDTH 11Hz -75Khz -3db OUTPUT IMPEDANCE 0,08 ohm INPUT IMPEDANCE 47 Kohm GAIN X20 (26db) INPUTS Balanced/Unbalanced Switchable POWER CONSUMPTION 250W @ idle DIMENSIONS 425x425x230 (W x H x D)mm WEIGHT 50 Kgr (each) Specifications may change without notice.
