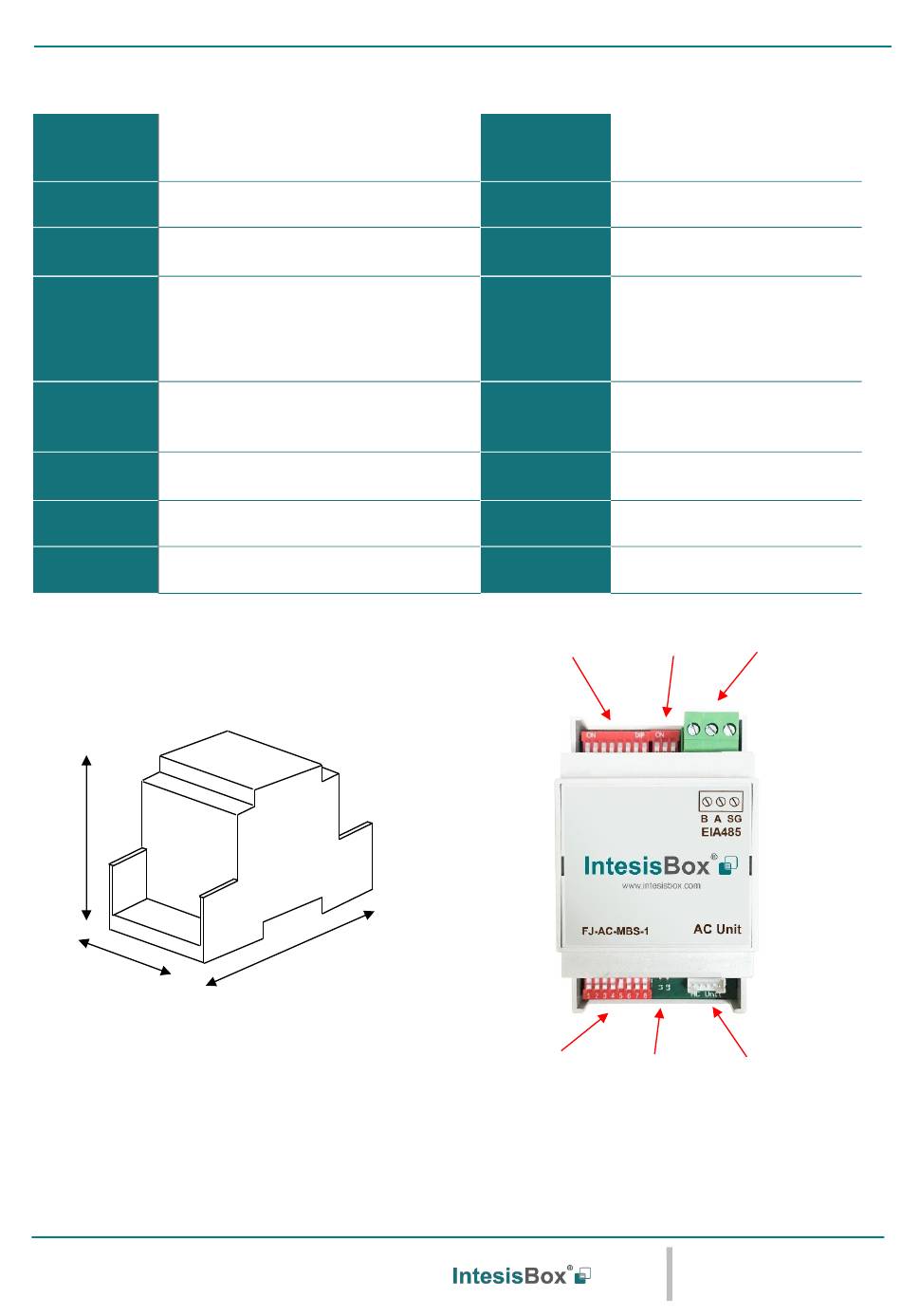

5 Mechanical & electrical characteristics
Plastic, type PC (UL 94 V-0)
Net dimensions (dxwxh):
Enclosure
93 x 53 x 58 mm / 3.7" x 2.1" x 2.3"
Color: Light Grey. RAL 7035
Weight 85 g.
Wall
Mounting
DIN rail EN60715 TH35.
For terminal: solid wires or stranded wires (twisted
Terminal Wiring or with ferrule)
(for low-voltage 1 core: 0.5mm
signals) 2 cores: 0.5mm
3 cores: not permitted
1 x EIA485 Plug-in screw terminal block (2 poles +
GND) with 120 Ω resistor termination and
ModBus RTU port
polatization selectable by switch.
1 x Specific connector
AC unit port
Specific cable included
Switch 1 1 x DIP-Switch for Air Conditioner Unit + ModBus
(SW1) baud rate
Switch 3 1 x DIP-Switch for ModBus RTU slave address +
(SW3) temperature magnitude (ºC/ºF) and scale (x1/x10).
58 mm
53 mm
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SLU
... 2.5mm
2 2
... 1.5mm
2 2
93 mm
Operation
0ºC to +70ºC
Temperature
Stock Temperature -20ºC to +85ºC
Operational
<95% RH, non-condensing
Humidity
Stock Humidity <95% RH, non-condensing
Isolation voltage 1500 VDC
1000 MΩ
Isolation resistance
Protection IP20
LED indicators 2 x Onboard LED - Operational status
DIP
Switch SW3
Switch SW2
LED
DIP
Indicator
Switch SW1
URL
EmailP
hone
User Manual r1.0 EN
