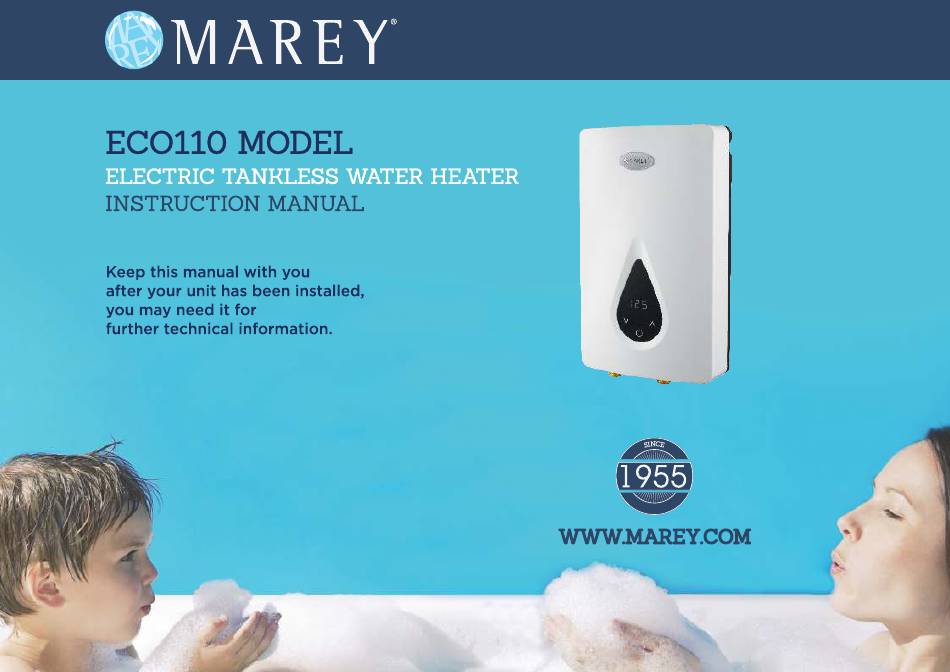

Marey ECO110 Instruction Manual
Electric tankless water heater
Hide thumbs
Also See for ECO110:
- Instruction manual (16 pages) ,
- Troubleshooting manual (5 pages) ,
- Installation requirements (4 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Marey ECO110
Summary of Contents for Marey ECO110
- Page 2 IMPORTANT SAFETY INFORMATIONS Take the time to thoroughly read and understand this safety and installation manual in its entirety before you attempt to install your new ECO110 tankless PRODUCT FEATURES water heater, as it contains important safety tips and instructions.
- Page 3 If your water heater requires a reset, be sure to TURN OFF THE BREAKER prior to knowledge, unless they have been given supervision or instruction concerning use resetting the unit. of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Page 4 3. Over temperature protection: when the outgoing water temperature reaches over TECHNICAL SPECIFICATIONS ECO110 140ºF/60ºC, the electricity will be cut off to avoid getting scalded and the screen will Power 11kW display E1. The appliance will start working automatically when the temperature drops to the set temperature.
- Page 5 terminal blocks Fixed installation on the wall Locate an appropriate place on a section of the wall as mentioned above. bottom case 220mm Fig. 01: Front and back of the appliance. control board display screen heating DOWN chamber ON/OFF temp.sensor flowmeter The installation must be in compliance with the National Electrical Code, your local electrical and plumbing codes.
- Page 6 Fig. 03: Open the front cover, connect the cable to the terminal blocks, and please Fig. 05: Mark three mounting holes on the wall according to the following picture, notice the guidance logo below the terminal blocks. then drill three holes of 6.00mm diameter. Put expansion bolts in the holes, and then screw the self tapping screws into the expansion bolts.
- Page 7 6. There is an automatic memory function to avoid repetitive operation. When you turn on the appliance, the default setting temperature will be the same as last time 3. ECO110 can be connected to a single circuit, using a supply cable protected by a setting.
- Page 8 B. Reduce water flow. 6. Outlet gets water Inlet strainer or shower clogged. Clean strainer and shower. Please visit our website to get to know more about other Marey products. smaller and smaller. 7. LED displays E1 Outlet temperature is over A.
