User Manual
373
Users Manual
Clamp Meter
PN 3612805
July
2010
© 2010 Fluke Corporation. All rights reserved. Printed in Taiwan. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com
Advertisement
Related Manuals for Fluke 373
Summary of Contents for Fluke 373
- Page 1 Users Manual Clamp Meter PN 3612805 July 2010 © 2010 Fluke Corporation. All rights reserved. Printed in Taiwan. Specifications are subject to change without notice. All product names are trademarks of their respective companies. GlobalTestSupply www. .com Find Quality Products Online at:...
- Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for three years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction......................... 1 How to Contact Fluke ....................1 Safety Information ...................... 2 The Meter ........................7 Electrical Specifications..................15 Mechanical Specifications ..................16 Environmental Specifications ................. 16 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 4: Introduction

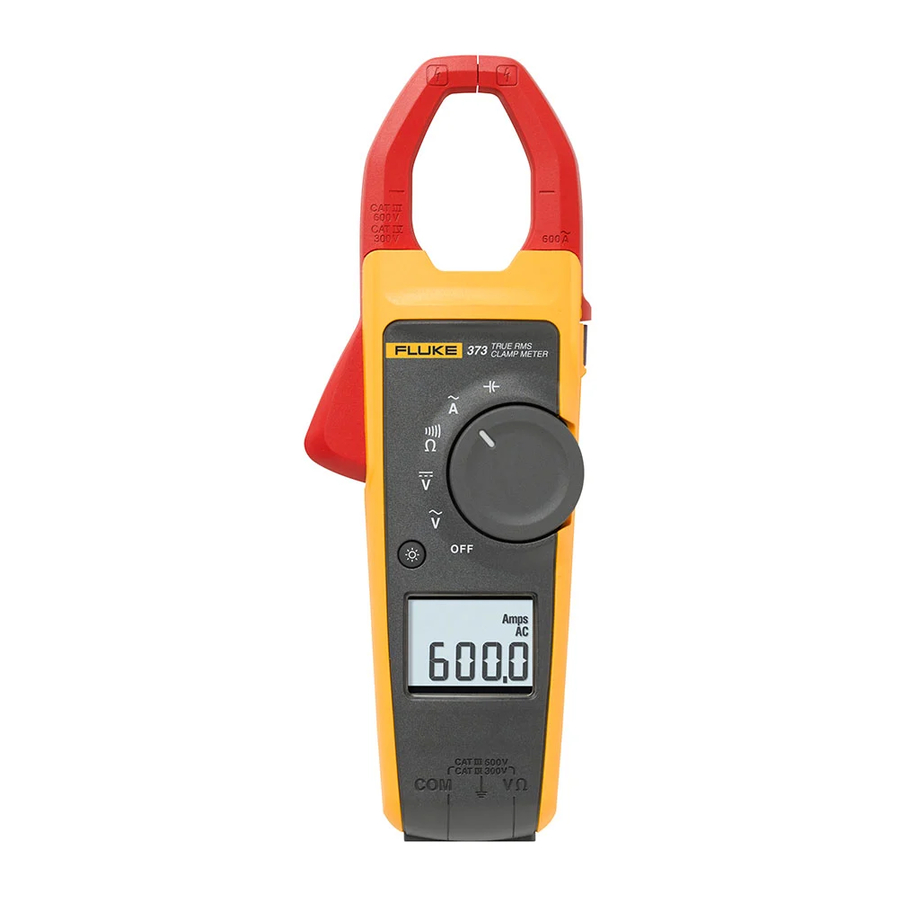

Introduction XWWarning Read "Safety Information" before you use the Meter. The Fluke 373 Clamp Meter (the Meter) measures true-rms ac and dc voltage, ac current, resistance, and capacitance. How to Contact Fluke To contact Fluke, call one of the following telephone numbers: •... -
Page 5: Safety Information
Users Manual Safety Information A Warning identifies conditions and actions that pose hazard(s) to the user; A Caution identifies conditions and procedures that could cause Meter damage, equipment under test damage, or permanent loss of data. Symbols used on the Meter and in this manual are explained in Table 1. XWWarning To prevent possible electrical shock or personal injury, follow these guidelines: •... - Page 6 Clamp Meter Safety Information • Remove the test leads from the Meter before the battery door is opened. • Examine the test leads for damaged insulation or exposed metal. Check test lead continuity. Replace damaged test leads before using the Meter. •...
- Page 7 Users Manual • Connect the common test lead before connecting the live test lead. When disconnecting test leads, disconnect the live test lead first. • Do not work alone so assistance can be rendered in an emergency. • Use extreme caution when working around bare conductors or bus bars. Contact with the conductor could result in electric shock.
- Page 8 Meaning AC (Alternating Current) Earth ground Do not dispose of this product as unsorted municipal waste. Go to DC (Direct Current) Fluke’s website for recycling information. Conforms to European Union Hazardous voltage directives. Risk of Danger. Important Conforms to relevant North American information.
- Page 9 Users Manual Symbol Meaning Symbol Meaning IEC Measurement Category III IEC Measurement Category IV CAT III equipment has protection CAT IV equipment has protection against transients in equipment in against transients from the primary CAT III CAT IV fixed-equipment installations, such supply level, such as an electricity as distribution panels, feeders and Meter or an overhead or...
-
Page 10: The Meter
Clamp Meter The Meter The Meter ghl008.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 11 Users Manual Auto Off ghl001.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 12 Clamp Meter The Meter Backlight ghl002.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 13 Users Manual ghl003.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 14 Clamp Meter The Meter > 30 V ghl004.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 15 Users Manual < 30 ghl005.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 16 Clamp Meter The Meter HOLD ghl006.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 17 Users Manual ghl007.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 18: Electrical Specifications
Clamp Meter The Meter Electrical Specifications AC Current Range .............600.0 A Resolution ..........0.1 A Accuracy ..........2 % ± 5 digits (48 – 62 Hz) Crest Factor (50/60 Hz) ......2.5 @ 600 A AC Voltage Range ............600.0 V Resolution ..........0.1 V Accuracy ..........1.0 % ±... -
