ASPEN Digital Processor
In this example, the processors in the subsystems all
subscribe to receive audio from the other two subsys-
tems on Dante transmit channels 1 and 2.
A system configuration like this would be an ideal solu-
tion for multi-site Telepresence video conferencing by
allowing a full-duplex, system wide audio signal flow.
24

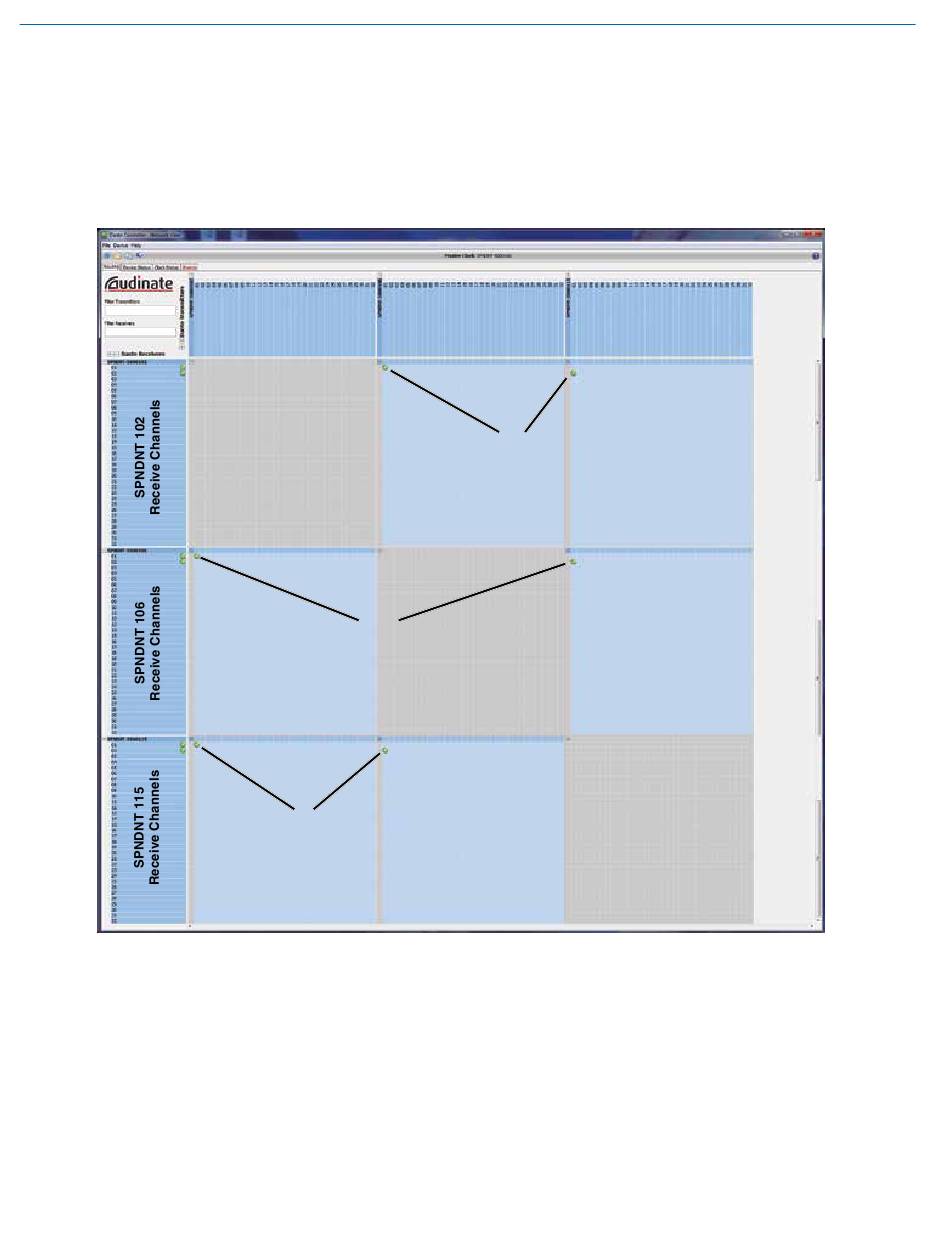

SPNDNT 102
Transmit
Channels
These areas grayed out
because a Dante device
cannot transmit to itself
SPNDNT 106 subscriptions
to other two transmitters
SPNDNT 115 subscriptions
to other two transmitters
This setup is also an effective solution for signal rout-
ing in room combining systems.
SPNDNT 106
Transmit
Channels
SPNDNT 102 subscriptions
to other two transmitters
SPNDNT 115
Transmit
Channels
