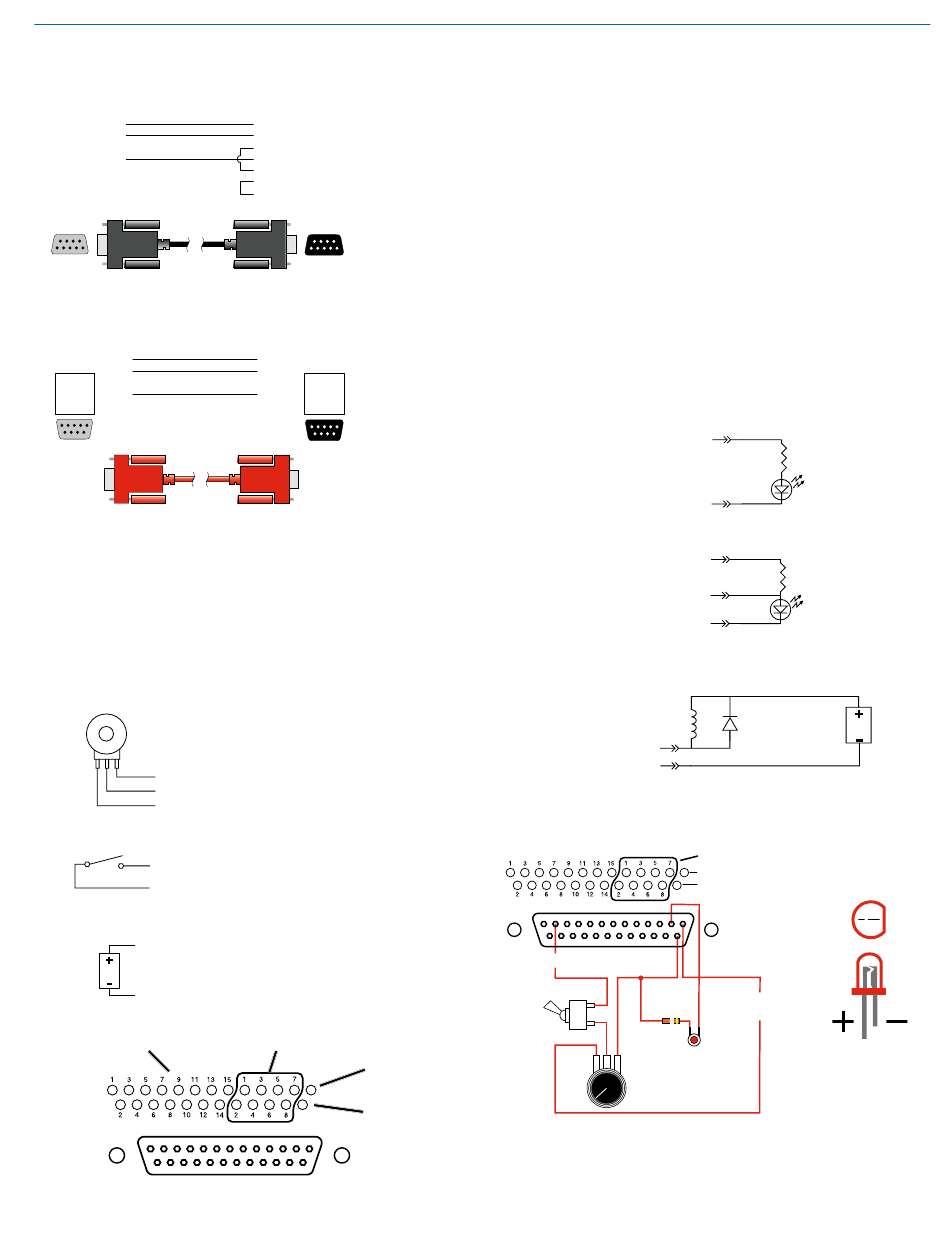

ASPEN RS-232 Port

Wiring Diagram
ASPEN Device to PC
1
TX 2
3
RX
ASPEN
4
RS-232
5
GND
Port
6
7
8
9
DCE pin
functions
Female
jack
Male
connector
Crestron RS-232 Port Wiring
®
1
TX 2
3
RX
4
ASPEN
RS-232 GND 5
Port
6
Wiring Diagram
7
8
9
Female jack
Male
connector

Programmable Inputs

Programmable inputs are provided to enable external
control over a variety of parameters. Each input can
respond to a contact closure, a DC voltage source,
or the variable voltage output from a potentiometer.
The following illustrates common connections to the
programmable input pins.
Potentiometer Connection for
Analog Control of Gain
10K Linear Potentiometer
CCW
CW
+5V
To Programmable Input Pin
Gnd
Contact Closure as Programmable Input
To Programmable Input Pin
Gnd
DC Voltage Source as Programmable Input
To Programmable Input Pin
0VDC (Off) to +5VDC (On)
Gnd
Programmable
Inputs
Rio Rancho, NM
1 DCD
2 RX
3 TX
Host
4 DTR
Serial
5 GND
Port
6 DSR
(PC)
7 RTS
8 CTS
9 RI
DTE pin
functions
Male jack
Female
connector
1
2 RX
3 TX
4 Crestron
RS-232
5 GND
Port
6
7
8
9
Male jack
Female
connector
Programmable
Outputs
Ground
+5VDC
Installation and Quick Start Guide

Programmable Outputs

Programmable outputs are used for several purposes:
• indicate the current state of a programmable input
• monitor activity on audio input channels
• monitor active preset changes
Each programmable output is the electrical equivalent
of a contact closure to ground. When a programmable
output is "active" it conducts current to ground. When
the programmable output is "inactive," no current flows
to ground. The maximum usable voltage for the pro-
grammable outputs is 40 V and they will safely conduct
up to 100 mA DC continuous.
Both LEDs and 5V relay coils can be powered by the
+5 V DC pins on the programmable input connector, as
long as the maximum combined current for all LEDS
and relay coils does not exceed 100 mA.
LED is ON when the programmable output is active
+5VDC
Pro gr amma b le Output Pi n
LED is OFF when the programmable output is active
+5VDC
Programmable Output Pin
GND
Relay is on when the programmable output is active
Rel a y Coi l
Coil current <100mA
Pro gr amma b le Output Pi n
GND
Note: The diagram above shows an external DC source
powering the relay coil. This is necessary whenever coil volt-
ages exceed 5 volts.
LOGIC INPUTS
LOGIC IN 3
IN 3
ON
380 TO
500 OHM
OFF
ANODE
LED
CCW
CW
10K
IN 1
LINEAR
POT
380 Ohms
380 Ohms
Exte r na l
1N4001
DC V oltag e
or equi v .
Source
(<40VDC)
LOGIC OUTPUTS
GROUND
5VDC
LOGIC
OUT 7
CATHODE Anode Cathode
