Anleitung SGT 527 28.01.2005
engaging into a socket. If the supply cord is
damaged it must be replaced by a service agent or a
similarly qualified person in order to avoid hazard.

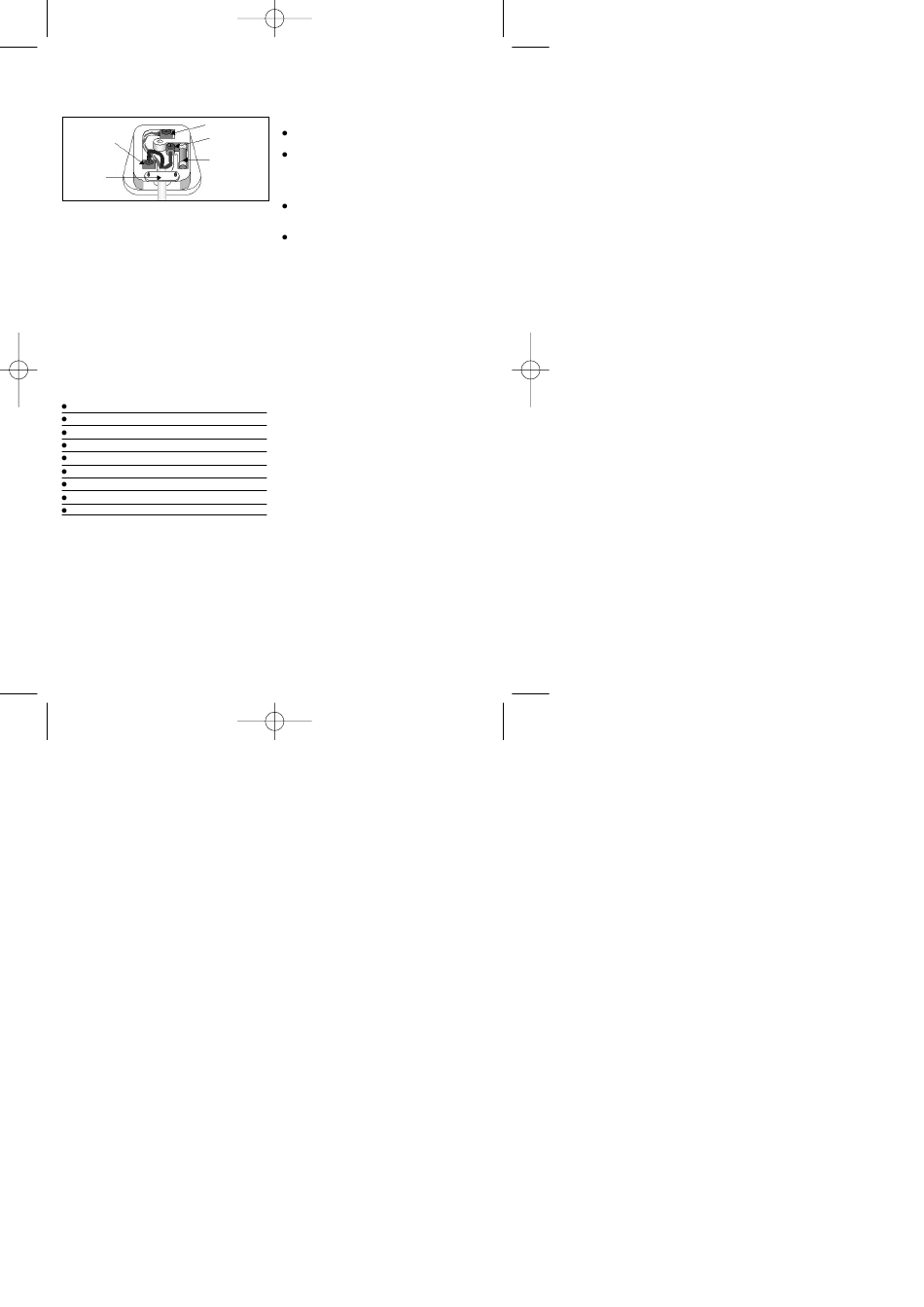

Earth terminal
Brown L (live)
Blue N (neutral)
5 Amp fuse
Cable grip approved to
BS 1362
3. Symbols used on the appliance (see
Figure 2)
Item 1: Warning
Item 2: Wear eye protection
Item 3: Protect from moisture
Item 4: Read the instruction manual before starting
Item 5: Pull out the mains plug before checking a
damaged power cable
Item 6: Keep other people out of the danger area
Item 7: The tool continues to rotate

4. Technical data

Voltage 230V ~ 50 Hz
Power rating
Cutting width
Speed 10.500 rpm
Nylon cutting line
Sound pressure level LPA
Sound power level
Vibration aw
Weight
The noise level of this machine may exceed 85
dB(A). In this case, noise protection measures need
to be introduced for the user. The machine's noise
was measured in accordance with IEC 59 CO 11,
IEC 704, DIN 45635 Part 21, NFS 31-031
(84/538/EEC).
The value of the vibrations emitted on the hand is
4,65 m/s 2 . This value was determined in compliance
with ISO 5349.
10
9:47 Uhr Seite 10
5. Fitting the guard, handle, skids and
retractable underarm support
(Fig. 3 - 7)
Fasten the edge guide (9) to the projections on
the guard (12) (see arrows/Fig. 3).
Then mount the guard on the engine head (see
Fig. 4) and fasten with the supplied screws (see
Fig. 5)! If required, the skids (Fig. 6/Item 11) can
be mounted on the guard. Please make sure that
they lock into place properly.
The handle (5) is fitted as shown in Fig. 7. To do
this, pull both ends of the handle gently apart.
Then fasten with the fastening screw (6).
The retractable underarm support is fitted as
shown in Fig. 6a.

6. Proper use

The trimmer is designed for cutting lawns and small
areas of grass in private and hobby gardens.
Tools for private and hobby gardens are not suitable
for use in public facilities, parks and sport centers,
along roadways, on farms or in the forestry sector.
For the tool to be used properly it is imperative to
follow the instructions set out in the manufacturer's
directions for use.
Important! It is prohibited to use the tool to chop
material for composting because of the potential
danger to persons and property.
500 W
ø 27 cm

7. Before using for the first time

ø 1.4 mm
Adjust the height and the auxiliary handle to achieve
84 dB(A)
an optimum working position.
96 dB(A)
7.1 Height adjustment (see Fig. 8)
4,65 m/s 2
Set the grass trimmer down firmly on the ground.
3,5 kg
Slacken the telescope gland (7) in the direction of the
arrow. Then adjust the telescopic tube to the length
required and tighten the telescope gland again when
you have done so.
7.2 Adjusting the auxiliary handle (see Fig. 9)
Set the grass trimmer down firmly on the ground.
Slacken the screw (6) and adjust the auxiliary handle
to the optimum position. Fasten the handle in
position by tightening the screw.
7.3 Adjusting the angle of inclination of the long
handle (see Fig. 10)
Set the grass trimmer down firmly on the ground.
