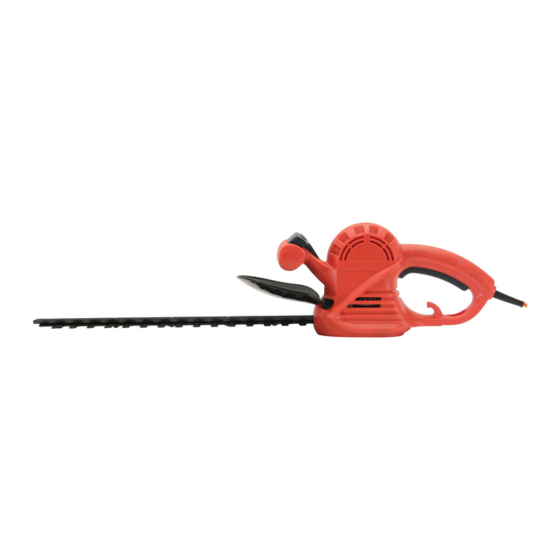

400W HEDGE TRIMMER
Article No. 644313
Model No. HTEG34C-450
ORIGINAL INSTRUCTION MANUAL
Please read these instructions fully before starting assembly.
HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576
Technical Support & Parts
01904 727509
Mon-Fri 9am-5pm Sat-Sun 11am-4pm
www.coreservice.co.uk
Sept. 22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sovereign HTEG34C-450
Summary of Contents for Sovereign HTEG34C-450
- Page 1 400W HEDGE TRIMMER Article No. 644313 Model No. HTEG34C-450 Technical Support & Parts 01904 727509 Mon-Fri 9am-5pm Sat-Sun 11am-4pm www.coreservice.co.uk ORIGINAL INSTRUCTION MANUAL Please read these instructions fully before starting assembly. HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576...
-
Page 2: Table Of Contents
CONTENTS General safety warnings Intended use Warning symbols In the box Assemble the hedge trimmer Operation Maintenance and storage Troubleshooting Technical data Disposal Getting help Warranty... -
Page 3: General Safety Warnings
General power tool safety warnings WARNING! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 4 b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c. Do not expose power tools to rain or wet conditions.
- Page 5 mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to a power source and/or battery pack, picking up, or carrying the tool.
- Page 6 b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c. Disconnect the plug from the power source and/or the battery pack before making any adjustments, changing accessories, or storing power tools.
- Page 7 h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Service a. Have your power tool serviced by a qualified repair person using only identical replacement parts.
- Page 8 d. Hold the hedge trimmer by the insulated gripping surfaces only, as the blade may contact hidden wiring. Blades contacting a “live” wire may make exposed metal parts of the hedge trimmer “live” and could give the operator an electric shock. e.
-
Page 9: Intended Use
Intended use This hedge trimmer has been designed for trimming light foliage, and is intended for DIY use only. a. This product is not to be used in wet weather conditions and may not be used to trim wet foliage. b. -
Page 10: Warning Symbols
Warning symbols Before any use, refer to the corresponding paragraph in the present manual. The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the trimmer. Warning! This symbol, before a safety comment, indicates a precaution, a warning or a danger. - Page 11 Guaranteed sound power level data (99dB), in accordance with Directive 2000/14/EC. Recycle unwanted materials instead of disposing of them as household waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way.
-
Page 12: In The Box
In the box Parts Blade sheath Blade Safety hand guard Front handle Rear handle Cable holder Cable and plug Fixed guard screws x 2 ON/OFF switch 10. Safety switch... -
Page 13: Assemble The Hedge Trimmer
Assemble the hedge trimmer WARNING! Always take care when removing the packaging to prevent damage to you or to the hedge trimmer. Make sure that you have sufficient space to put the hedge trimmer down. Keep your feet apart so that you have a stable position;... -
Page 14: Operation
MAINS SUPPLY CABLE STRAIN RELIEF To prevent excessive strain on the cable connections, the hedge trimmer is fitted with a cable restraint. Before switching on, push a loop of cable through the space in the handle and secure it over the cable restraint. Operation PREPARE TO OPERATE WARNING! - Page 15 Before starting your hedge trimmer, remove the blade sheath, as shown. Switch on Hold the rear handle with one gloved hand. Squeeze the ON/ OFF switch. With the other gloved hand, hold the front handle and grip the safety switch. The hedge trimmer will then start. Switch off To switch the hedge trimmer OFF, release either the safety switch or the ON/OFF switch.
- Page 16 Then follow the below steps: 1. Start trimming at the point nearest to the electricity supply and work away from it. 2. Keep the mains cable behind you at all times. Make sure that it is not in the path of the blade. 3.
-
Page 17: Maintenance And Storage
Maintenance and storage WARNING! Before cleaning, inspecting or repairing your unit, make sure the switch is off. Disconnect the plug from the mains. Cleaning WARNING! Before lubricating, make sure your hedge trimmer is disconnected from the mains supply. Apply the oil so that it runs between the two blades. - Page 18 IMPORTANT! The wires in the mains lead are coloured in accordance with the following code: Blue – Neutral, Brown – Live In case the colours of the wires in the mains lead don‘t match the colour marking on the terminals, please proceed as follow. Connect the blue wire to the terminal marked N (Neutral) or coloured black.
- Page 19 Storage IMPORTANT! Make sure that the hedge trimmer has been thoroughly cleaned before storing it in a clean, dry and safe place out of the reach of children. Follow below steps before storing: 1. Switch the product off and disconnect it from the power supply before transporting it anywhere.
-
Page 20: Troubleshooting
Troubleshooting WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist. The following table provides solutions to common problems encountered with the hedge trimmer: Problem Possible cause Solution... -
Page 21: Technical Data
Technical data Model no. HTEG34C-450 Rated voltage AC 230-240V; 50Hz Output power 400W No load speed 1750min Cutting length 410mm Tooth gap 16mm Protection class / II Machine weight 2.5kg A weighted sound pressure (L 77.3dB(A), K= 3dB(A) A weighted sound power (L 97.3dB(A), k=3dB(A) -
Page 22: Disposal
Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Getting help Our dedicated UK-based customer helpline is open 7 days a week to assist you with assembly, parts queries and technical support. -
Page 23: Warranty
Warranty This product is covered by a 1 year warranty. The warranty covers any manufacturing defect in materials, workmanship and finish. Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 1 year of the date of purchase.
