Sovereign

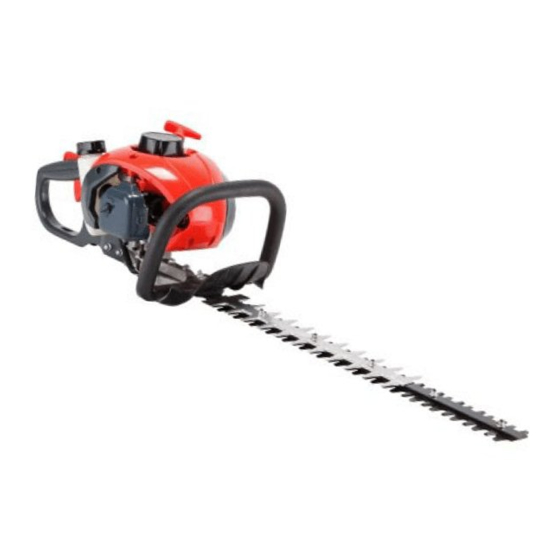

22.5cc Petrol Hedge Trimmer
Operation and Maintenance Manual
Important
- Please read these instructions fully before operating or maintaining your hedge trimmer
These instructions contain important information that will help you get the best from your hedge
trimmer, ensuring it is assembled correctly and safely.
QJB23
Technical Support & Parts
01904 727503
www.gardenservicecentre.co.uk
Scan to watch
our new
instruction
videos!
Oct 2014 Rev C
Advertisement
Table of Contents
Related Manuals for Sovereign QJB23
Summary of Contents for Sovereign QJB23
- Page 1 Sovereign 22.5cc Petrol Hedge Trimmer Operation and Maintenance Manual QJB23 Technical Support & Parts 01904 727503 www.gardenservicecentre.co.uk Scan to watch our new instruction videos! Important - Please read these instructions fully before operating or maintaining your hedge trimmer These instructions contain important information that will help you get the best from your hedge trimmer, ensuring it is assembled correctly and safely.
-
Page 2: Table Of Contents
Contents Safety Information Important - Please read these instructions fully before operating or maintaining Warning Symbols Safety Information .............................3 Warning Symbols ............................3 The following warning symbols appear through this manual and indicate the appropriate safety measures you should take when operating and maintaining the hedge trimmer. General Safety ..............................4 Before any use, refer to the corresponding paragraph in the present manual. -
Page 3: Safety Information
Safety Information Safety Information Important - Please read these instructions fully before operating or maintaining Important - Please read these instructions fully before operating or maintaining General Safety Operation (continued) - Don’t leave the machine unattended. Visitors and onlookers, especially children, and the infirm should be kept at a safe distance from your workplace. -
Page 4: Maintenance And Storage
Safety Information Safety Information Important - Please read these instructions fully before operating or maintaining Important - Please read these instructions fully before operating or maintaining Operation (continued) Operation (continued) - Do not leave an active engine unsupervised. WARNING! The cutting blade can hurt your hands and fingers and cause life threatening injuries! - After a repair or maintenance of safety or protective devices the devices must be reinstalled Always secure adequate lighting. -
Page 5: In The Box
In the Box Preparing to Operate the Hedge Trimmer Tools Important - Please read these instructions fully before operating or maintaining Parts Step 1 - Filling with Engine Fuel Hedge trimmer Plug wrench & Mixing bottle philips screwdriver WARNING! Always shut off engine before fueling. Never add fuel to a machine with a running or hot engine. -
Page 6: Operating The Hedge Trimmer
Operating the Hedge Trimmer Operating the Hedge Trimmer Step 1 - Removing the blade protector Step 2 - Starting the Engine (continued) ATTENTION! Don’t touch the blade. 2b Starting under warm conditions 1) Set the switch ( ) to (START). 2) Set the choke lever to ( 3) Pull the starter grip ( ) quickly until engine runs. -
Page 7: Stopping
Operating the Hedge Trimmer Cleaning the Air Filter Step 4 - Trimming (continued) Cleaning the air filter 1) Loosen the screw from the air filter housing and remove the cap. 2) Remove the air filter. 3) Wash the air filter in warm water (with a small amount of detergent). 4) Rinse the air filter through with clean water. -
Page 8: Storing The Hedge Trimmer
Storing the Hedge Trimmer Troubleshooting Step 1 - Storing the Hedge Trimmer for Short Periods General Troubleshooting • Drain all fuel from tank into a container approved for petrol. Run engine until it stops. Clean all foreign material from the trimmer. Store it in a well-ventilated place that is out of reach from CAUTION! to children. -
Page 9: Technical Data
Technical Data Guarantee Technical Data Table Property Value Dear Customer, Engine type Single-cylinder, 2-stroke In the unlikely event that your device develops a fault, please contact our Customer service Displacement(cc) 22.5 cc department on the telephone number shown below. Max power /Engine speed 0.55 kW/7000 min 1.
