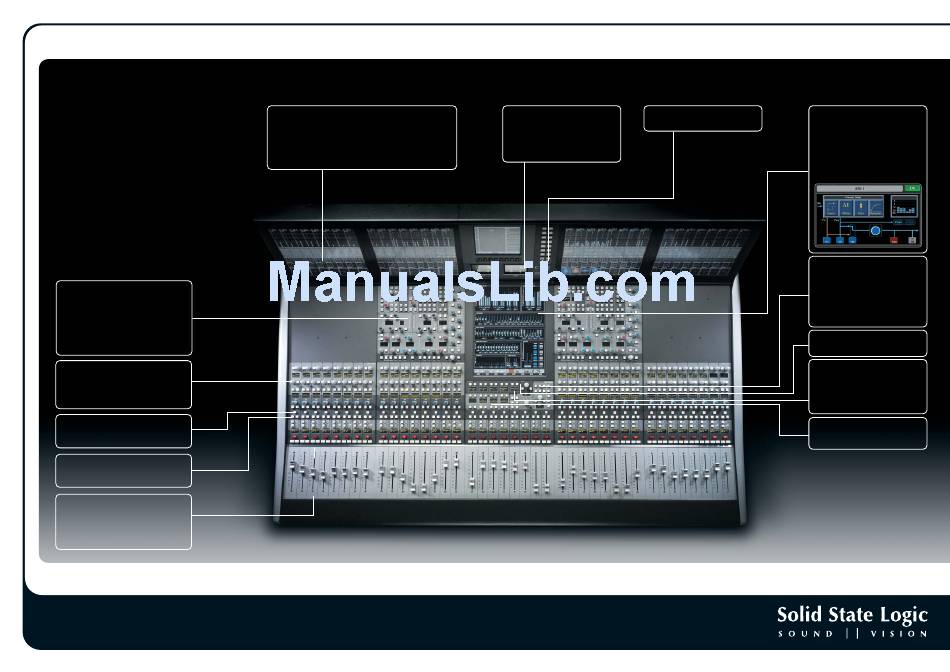

C100 HD-S & HD-L. Hardware Control Surface
Ergonomic Elegance
The advantages of both assignable and dedicated control philosophies
are blended on the C100's control surface, with definable Free controls
and the dedicated Master Channel and Fader Strip.
• Freely configurable mono, stereo and 5.1 channels with flexible
processing order
• Scalable control surface with up to 128 fader strips plus
master section
• Master Channel controls may be fitted in each bay, allowing hardware
redundancy and multiple points of access
• Simple setups for each show through touchscreen and graphical
offline configuration
• Channels arranged in layers, with control of the active layer below
the touchscreen
• Rearrange channels or 'clone' a channel to all layers, even
while on-air
• Unique graphical front panel management provides redundant access
to processing
• Stageboxes with remote-controlled mic inputs, line and split outputs
and GPI options on redundant fibre-optic connection
Master Channel Panel
• Dedicated sections for control of inputs,
bussing, outputs, EQ, Dynamics, Filters,
Delay, Insert and Aux sends
• Colour coded for fast recognition
• Broadcast-specific feature set
• Optional multiple unit hardware redundancy
• Ergonomic design and excellent overview
Free controls
• Dedicated channel controls are assignable
to any Master Channel parameter
• May be used for GPI control
• 4-character display for name/value
Traditional controls
• Dedicated AFL, PFL and ON buttons
• Pan control and 8-character fader name
Special access
• Channel Link provides A/B fast channel flip
• 'Expand' button spills multichannel breakouts
Fader Section
• Motorised faders
• Slim 30mm fader pitch
• GPI control
• Reset and layer protection
• User-programmable backstop PFL
C100 HD Range. This is SSL.
Channel meter and status display
• Mono/stereo/5.1 meter on • Process matrix and bus routing
every channel • Dynamics, EQ and Filters graphs
• Choice of 6 meter points
• Aux Send level and Pan status
• Input level and Dynamics • Main, Alternate, Insert and
Gain reduction Fader names
Output meters System status
• Choice of electronic and mechanical • Main and backup PSU status
metering
• 2, 6, or 8-channel phasescope
• VU, PPM, or TPM meters with a choice
of scales
www.solid-state-logic.com
Touchscreen
• Permanent level and gain displays for
all busses
• Colour coded tone and talkback
indicators
• 4-way monitor source selector
• Session management functions
• Touch-activated parameter display
and adjustment:
Monitor controls
• Main (5.1), Mini (stereo) and PFL
(stereo) outputs
• Phase and L/R reverse, monitor flip
and mono functions
• 5.1 insert with separate alternate
stereo return
• Individual monitor cuts/solos
• Integrated talkback microphone
User Layers
• Customise layouts for instant recall
Bus and layer control
• Access to all channel layers
• Access to group master, ASG, and
PGM faders
• Monitoring and communications
bus trims
Soft Keys
• 60 (10 x 6) definable buttons may be
cloned from touchscreen functions
Control Linking
SSL's unique Control Linking TM feature allows per-channel
recall of all default settings for a source when routed to
an input. The list of parameters includes:
• Format of the source (mono/stereo/5.1)
• Bussing, and routing of utility and direct/N-1 outputs
• Standard GPI control interfacing for the source (eg.
cough switch/fader start)
• Free control definitions
• Audio processing parameters (eg. EQ, Dynamics, etc.)
The use of Control Linking allows engineers to benefit
from previously stored setups and results in massive
reductions in setup time.
