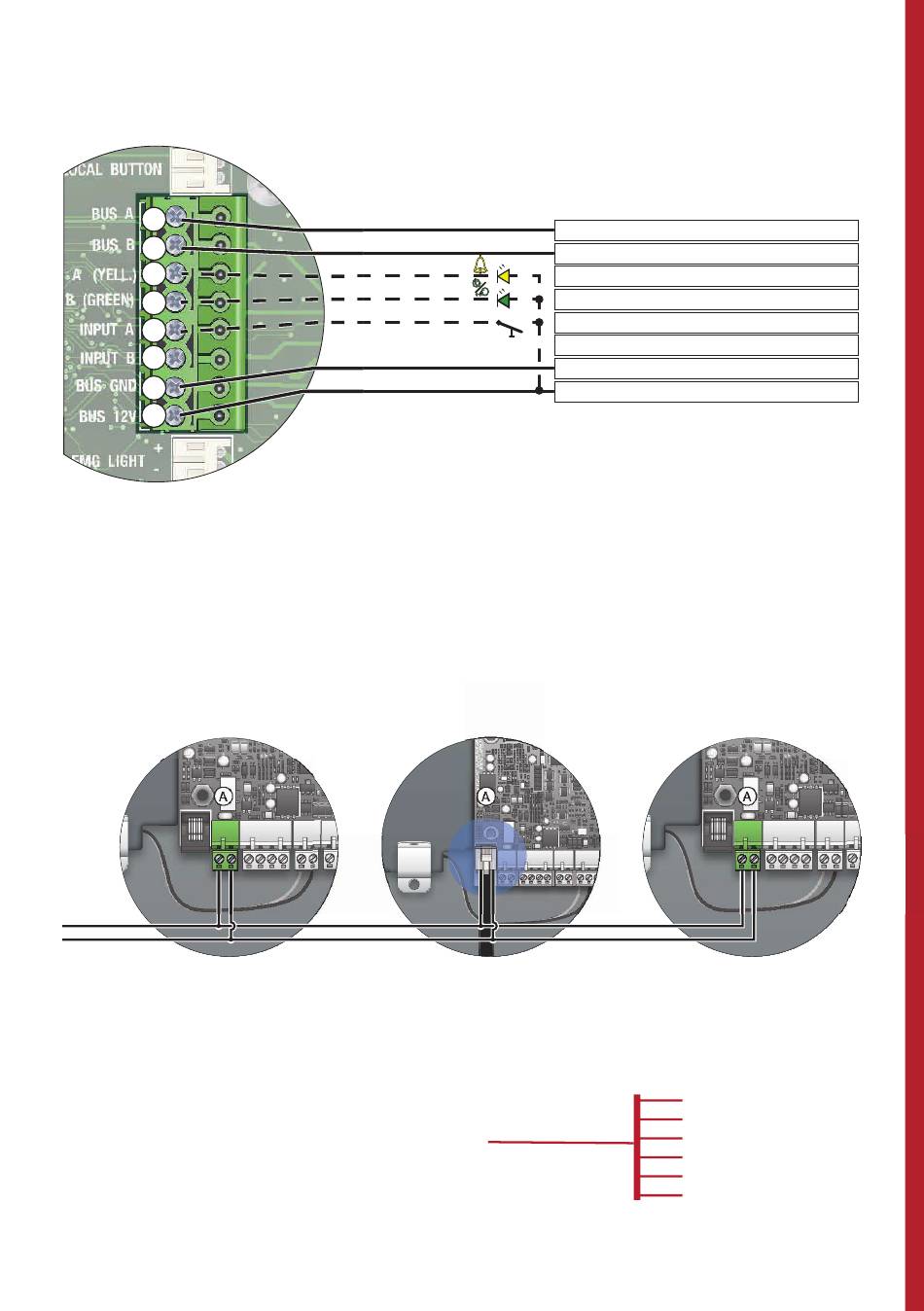

WIRING DIAGRAM
BUS UNIT SCREW TERMINALS
1
2
3
4
5
6
7
8

CONNECTING THE TELEPHONE LINE

44553
1000
6E
44553
1000
6E
A
Connect the telephone line in parallell in universal
terminals or the RJ-plug, see the picture above.
It's possible to connect up to nine SL6+ main
units to the same telephone line.
In order to access the unit remotely, it needs to
be assigned a unit number.
Please refere to parameter *82* in the
"Parameter list" for more information.
SL6+ v2.04 EN
© 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.
1. BUS A
2. BUS B
3. OUTPUT A, YELLOW PICTOGRAM
4. OUTPUT B, GREEN PICTOGRAM
5. INPUT A*, ALARM BUTTON
6. NOT IN USE
7. BUS GND
8. BUS 12 VDC
*Input A is confi gurable with either:
• SafeLine Pro N/O (default) or N/C.
• Parameter *89*, please refer to the
corresponding code in the "Parameter list".
SL6 R1.12
SPEAKER
A
44553 44553
1000 1000
6E 6E
Phone line is connected via RJ12 through the
following diagram:
RJ12
Installation
44553
1000
6E
44553
1000
6E
SL6 R1.12
SPEAKER
A
1 Not in use
2 Output
3 Input
4 Input
5 Output
6 Not in use
