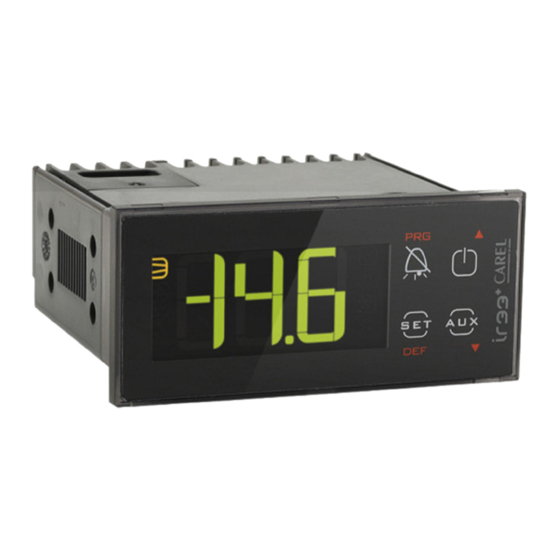

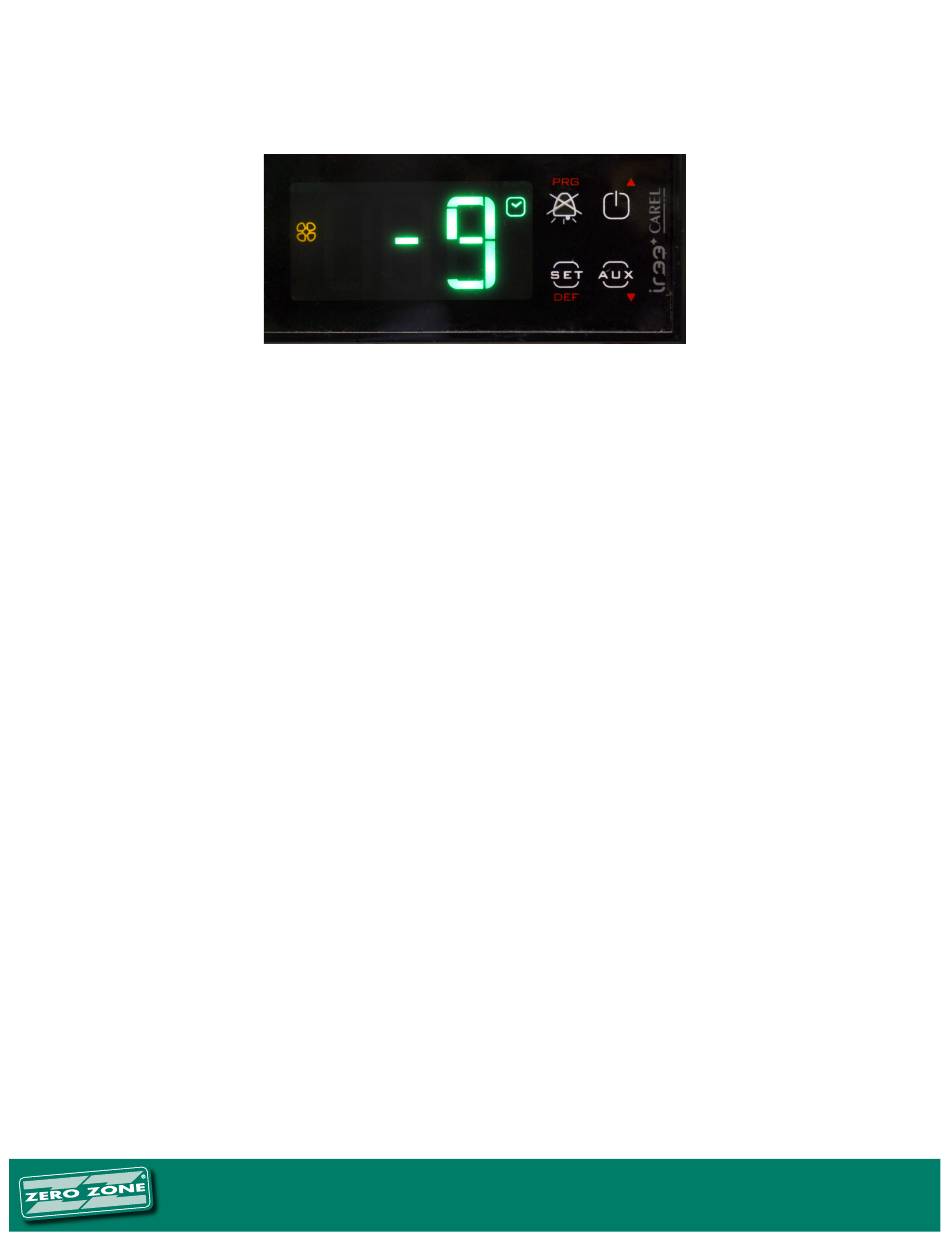

CAREL IR33+ CONTROLLER
Programming Instructions
The Carel IR33+ controller has a two-level menu system for programming the operation of the case; Level 1 and Level 2 program settings.
Unlike IR33, the IR33+ control system is easier to use with a password.
HOW TO CHANGE LEVEL 1 AND 2 CONTROL SETTINGS
1.
Press and hold the [PRG] button down until the display shows a flashing "0".
2.
Use the [UP] arrow until the display reads "22" (this is the password), then press the [SET] button. The display will read "/A2".
Use the [UP] and [DOWN] arrows to move up or down the menu until you reach the parameter you intend to view or change. When the
3.
proper code is displayed, press the [SET] button to view the current setting for that parameter. (You will notice the Level 1 program codes
are also found in this menu.)
4.
Use the [UP] and [DOWN] arrows to change the value. Then press the [SET] button again to return to the menu.
5.
The exceptions to Step #4 are the program codes "tc", "td1", and "td2". In these cases, you must press the [SET] button in order to
access the submenu of available settings for these parameters. Once changes are made in this submenu, press the [PRG] button to get
back to the main menu.
6.
When finished making all necessary changes, you MUST press and hold the [PRG] button for 10 seconds to save them. Alternatively, if
you decide you do NOT want to save changes you've just made, simply stop pressing buttons for 30 seconds and the control will return to
normal operation, discarding any changes made.
Note: Zero Zone should be contacted before working on changing settings. To be completed by a trained person only.
For technical support, please contact the
Zero Zone Service Department at:
800-247-4496
ZERO ZONE, INC. • 800-247-4496 • ZERO-ZONE.COM
© 2018 Zero Zone, Inc. All Rights Reserved. • JAN 2018
MN-20-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR33+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Carel IR33+

  • Page 1 CAREL IR33+ CONTROLLER Programming Instructions The Carel IR33+ controller has a two-level menu system for programming the operation of the case; Level 1 and Level 2 program settings. Unlike IR33, the IR33+ control system is easier to use with a password.
  • Page 2 Defrost time minute 2 td2.m Defrost time minute 2 65-1615 Rev B 65-1616 Rev B 65-1460 Rev B ZERO ZONE, INC. • 800-247-4496 • ZERO-ZONE.COM © 2017 Zero Zone, Inc. All Rights Reserved. • MAY 2017 2 • Carel IR33+ Controller MN-21-A...
  • Page 3 Defrost time hour 2 td2.m Defrost time minute 2 65-1448 Rev B 65-1521 Rev A ZERO ZONE, INC. • 800-247-4496 • ZERO-ZONE.COM © 2017 Zero Zone, Inc. All Rights Reserved. • MAY 2017 Carel IR33+ Controller • 3 MN-21-A...
  • Page 4 Defrost time minute 2 td3.m Defrost time minute 2 65-1444 Rev B 65-1468 Rev A 65-1505 Rev C ZERO ZONE, INC. • 800-247-4496 • ZERO-ZONE.COM © 2017 Zero Zone, Inc. All Rights Reserved. • MAY 2017 4 • Carel IR33+ Controller MN-21-A...
  • Page 5 12. SET/DEF: Displays and/or lets the user set the set point if pressed for more than one second. Also used to enter settings of parameters.   CAUTION:Ifpressedformorethanfiveseconds,itstartsamanualdefrost. Carel IR33+ Controller - Basic Operations • 5...
  • Page 6 The button used to silence the alarm ([PRG] button) is located on the controller on the front of the case above the right-hand door. If the alarm sounds, push the [PRG] button which will reset the alarm and silence it for one hour. See "Manager’s Emergency Guide" at the end of this manual. 6 • Carel IR33+ Controller - Basic Case Operations...
  • Page 7 Has the case just been stocked? (Warm product will take 24 hours to cool down.) ƒ Is the case heavily shopped? (Frequent door opening will warm the case.) ƒ Carel IR33+ Controller - Conditions that Trigger the Alarm • 7...
  • Page 8 Press [SET] key to enter the password access parameters. BELOW ARE EXAMPLES OF PARAMETERS TO CHECK ON THE CAREL IR33+ Any parameter can be changed in a similar manner so long as it is listed on your program set points list attached to your case or in the Low ƒ...
  • Page 9 ƒ IMPORTANT NOTE: At any time if you stop operating the Carel and do not perform step 7, the Carel will return to normal operations and will NOT save your settings. Make sure you keep the Carel programming state active if you have changed settings. If you do not, you will lose all your settings and must start over.
  • Page 10 Press [UP] or [DOWN] arrow to set parameter to desired setting. Press [SET] again to exit parameter setting. Repeat these steps until you have changed all parameters. Donotforgettoconfirmparametersaftersettingthem. Seestep7fromthepreviouspageonhowtoconfirmsettings. 10 • Carel IR33+ Controller - IR33+ Parameters Verify and/or Change...
  • Page 11 MANAgER’s EMERgENCy guIdE MANAgER’s EMERgENCy guIdE MANAgER’s EMERgENCy guIdE Hybrid Hybrid Display Cases Display Cases ™ ™ Zero Zone medium and low temp Hybrid display cases have a built-in alarm system to alert you of problems with the operation of the case. ™...
  • Page 12 For other technical support, please refer to Zero Zone Installation & Operation Manuals available on the Service page at: WWW.ZERO - ZONE.COM or contact the Zero Zone Service Department at: 800-247-4496 All specifications subject to change without notice. ZERO ZONE, INC. • 800-247-4496 • ZERO-ZONE.COM ©...
