KIT/45 84.45
CONTROL KIT OF ONE 24 VDC PARKING SPACE SAVER MOTOR
Thank you for having chosen SERAI ELETTRONICA, certain that you will obtain the performance necessary for use
from this product.
Remember that you are about to install a system classified as "motorised activation destined to move gates and
automatic doors in commercial and residential buildings, with access of vehicles and persons", which is considered
as potentially dangerous. Normally, it is your task and responsibility to make this system "safe" for how much this is
reasonably possible
.
Installation and maintenance of such a system must therefore by carried out exclusively by trained, qualified and
expert staff, with "state-of-the-art" executions, as prescribed by DM 37/08 and subsequent amendments and
integrations. The law prohibits the realisation of these types of plants by unqualified staff
On realisation of its own products, SERAI has respected the following:
Reference Directives for CE marking:
machinery:
low voltage:
electromagnetic compatibility:
General reference Standards:
electrical safety:
electromagnetic compatibility - emissions:
electromagnetic compatibility - immunity:
When installing the system, as well as that mentioned previously, please respect the following.
General reference Standards:
safety of electrical plants in general environments:
The SERAI products allow to implement systems that comply with these Standards. The following is very
!
important as THE INSTALLER IS RESPONSIBLE FOR THE SYSTEM AND ITS FUNCTIONING IN
COMPLIANCE WITH STANDARDS.
This manual must be read completely before proceeding with installation of the various parts of the plant
KIT COMPONENTS:
1
MP/30 motor
2
CR/53 control unit
OG/64 remote control
3
S
E
INSTALLER MANUAL

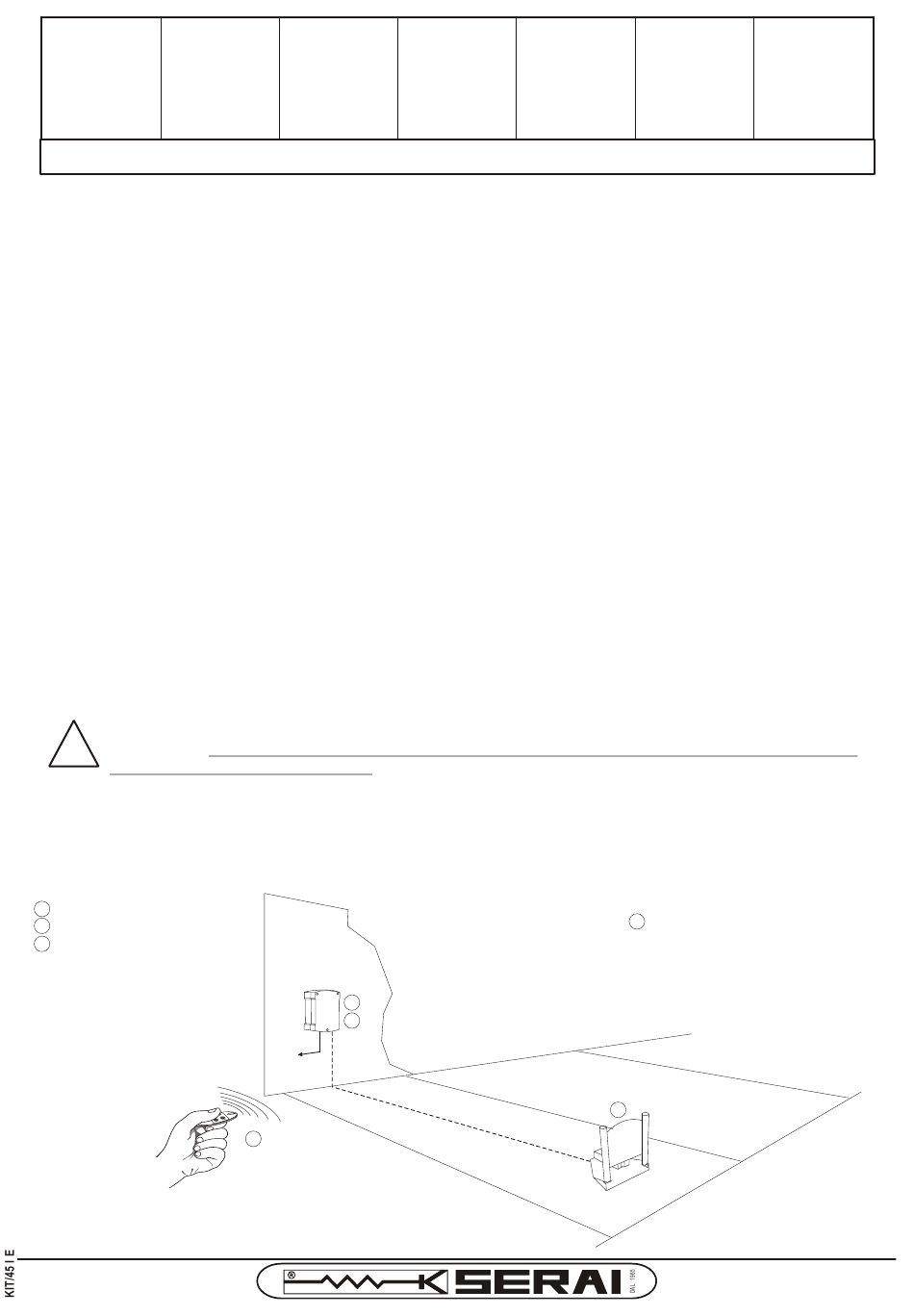

TYPICAL PLANT EXAMPLE
2
4
3
R
A
GATE OPENER DIVISION
2006/42/EEC
2006/95/EEC
2004/108/EEC
IEC EN60335-1 + IEC EN60335-2-103
IEC EN61000-6-3
IEC EN61000-6-1
IEC 64-8 V2
1
M I
M I
P A
P A
I
.
ACCESSORIES
4
2xBT/20: 12V 2Ah batteries
-optionals-
O
O
R K
R K
.
Pag. 1/7
Advertisement
Related Manuals for Serai KIT 45
Summary of Contents for Serai KIT 45
- Page 1 KIT/45 84.45 CONTROL KIT OF ONE 24 VDC PARKING SPACE SAVER MOTOR Thank you for having chosen SERAI ELETTRONICA, certain that you will obtain the performance necessary for use from this product. Remember that you are about to install a system classified as "motorised activation destined to move gates and automatic doors in commercial and residential buildings, with access of vehicles and persons", which is considered...
-
Page 2: Motor Installation
MOTOR INSTALLATION Find the installation position keeping in mind that the parking space saver must remain below the car when parked. If needed, make an adequate cement foundation to position the parking space saver motor and arrange the arrival of the Ø=20mm tube to pass the cables through the hole below the motor. - Page 3 INSTALLATION OF THE CR/53 CONTROL UNIT WHERE TO POSITION THE CONTROL UNIT Position the appliance in proximity of the parking space saver in a way to reduce the length of the connection cable, to the rest of the system, to a minimum. For greater protection from atmospheric agents it is recommended to position the control unit under a roof or, even better, in a room that has two lateral walls.
- Page 4 BATTERY HOUSING AND CABLES INLET Two strips are supplied complete with screws for fixing the two 12V 2 Ah batteries (SERAI BT/20) onto the lid of the container. Seats for fairleads PG11 and PG 13,5 which are easy to break through, are envisioned in the lower part of the container for the passage of input cables.
- Page 5 DEFINITION OF THE CLAMPS CLAMPS CONNECTIONS DESCRIPTION Input for the connection of 2 12V 2Ah buffer batteries (optionals, e.g. SERAI BT/20) to guarantee functioning of the OPTIONAL automation in the case of a power cut. In presence of the 1 - 2 BATTERIES circuit board network voltage, it recharges the batteries via the built-in battery-charger.
- Page 6 STANDARD OPERATION OF MOTOR BOARD - With the motor closed (upright position with limit switch active) a start control moves the motor down (opens). - With the motor open (horizontal position with limit switch deactivated) a start control moves the motor up (closes). - With the motor closing (moving up) a start control inverts motion until it opens completely.
-
Page 7: Troubleshooting
WARRANTY CONDITIONS The company reserves the right to make any modifications without forewarning. The conventional guarantee of SERAI product is valid for 24 months from the date of issue of the fiscal document, which proves purchase and is applied in the seat of Legnaro - PD - or at authorised After-sales Centres. The transport costs are under the Customer's responsibility. The warranty terminates in the event of tampering with or removal of the label specifying the manufacturing lot of the product and in the event of tampering with the product itself.
