KIT/A9 - 03.A9

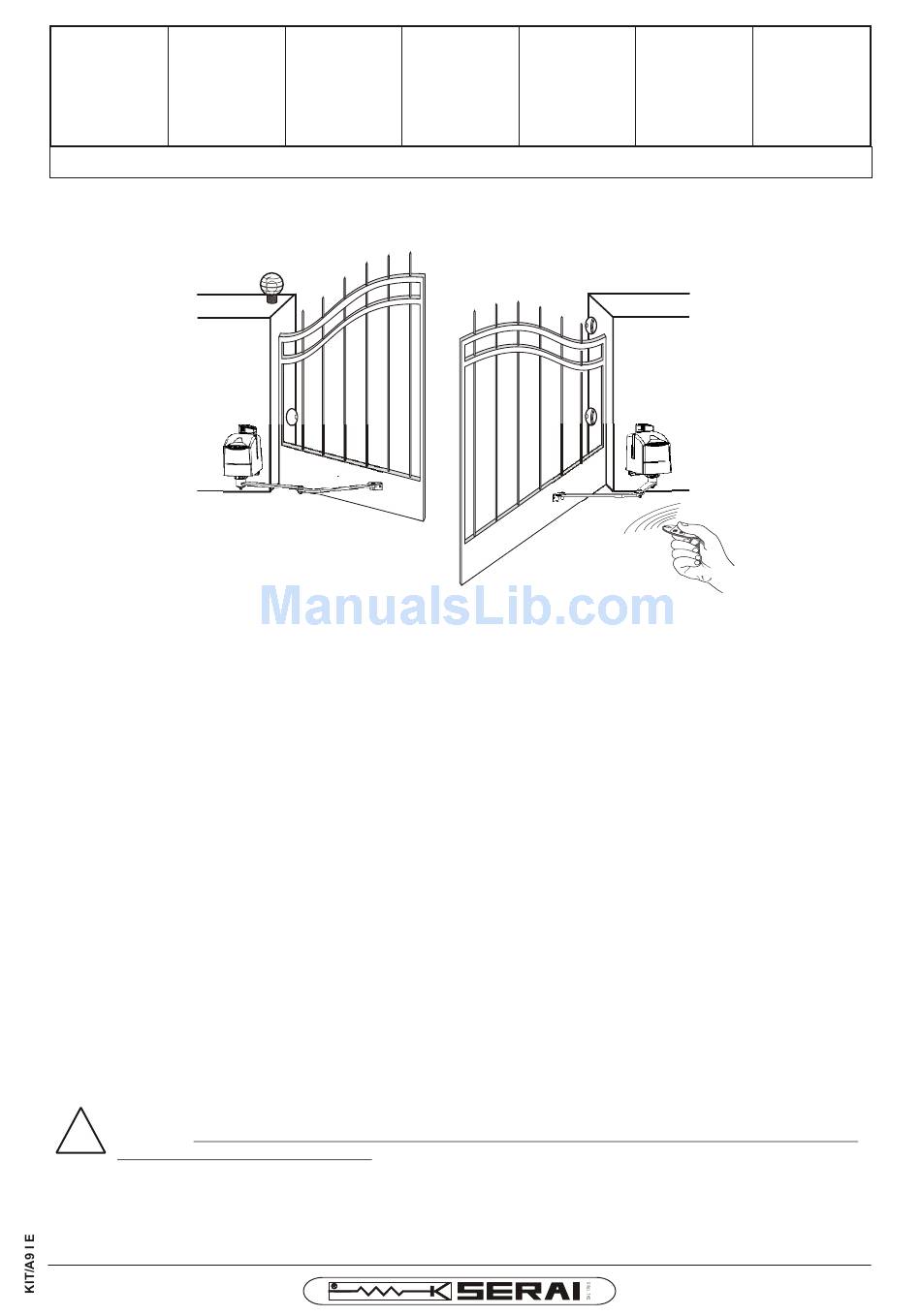

KIT WITH 2 ARTICULATED ARM MOTORS WITHOUT CARTER FOR
WING GATES UP TO 3.50 + 3.50m AND 350 kg PER LEAF - 230 Vac
Thank you for having chosen SERAI ELETTRONICA, certain that you will obtain the performance necessary for use from this pro-
duct.
Remember that you are about to install a system classified as "motorised activation destined to move gates and automatic
doors in commercial and residential buildings, with access of vehicles and persons", which is considered as potentially dan-
gerous. Normally, it is your task and responsibility to make this system "safe" for how mush this is reasonably possible.
Installation and maintenance of such a system must therefore by carried out exclusively by trained, qualified and
expert staff, with "state-of-the-art" executions, as prescribed by law 37/08 and successive amendments and
integrations. The law prohibits the realisation of these types of plants by unqualified staff.
On realisation of its own products, SERAI has respected the following:
Reference Directives for CE marking:
Machinery:
Low Voltage:
Electromagnetic Compatibility:
General reference Standards:
Electrical Safety:
Electromagnetic Compatibility - Emissions:
Electromagnetic Compatibility - Immunity:
When installing the system, as well as that mentioned previously, please also respect.
General reference Standards:
Safety of electrical plants in general environments:
Reference Standards specific of the product:
Safety regarding use of motorised doors - requisites:
Safety regarding use of motorised doors - test methods:
The SERAI products allow to realise systems that respond to these Standards. The following is very
!
important THE INSTALLER IS RESPONSIBLE FOR THE SYSTEM AND ITS FUNCTIONING IN
COMPLIANCE WITH STANDARDS.
This manual must be read completely before proceeding with installation of the various parts of the plant.
The installation of the mechanical stops with gate opening and closing is necessary for safety of the system
and must therefore be performed before proceeding with installation of the control unit.
E
R
GATE OPENER DIVISION
INSTRUCTIONS MANUAL
2006/42/CE
73/23/CEE + 93/68/CEE
2004/108/CEE
CEI EN60335-1 + CEI EN60335-2-103
CEI EN61000-6-3
CEI EN61000-6-1
CEI 64-8 V2
UNI EN12453
UNI En12445
A
I
Page 1/18
Advertisement
Related Manuals for Serai KIT/A9
Summary of Contents for Serai KIT/A9
- Page 1 KIT WITH 2 ARTICULATED ARM MOTORS WITHOUT CARTER FOR WING GATES UP TO 3.50 + 3.50m AND 350 kg PER LEAF - 230 Vac Thank you for having chosen SERAI ELETTRONICA, certain that you will obtain the performance necessary for use from this pro- duct.
- Page 2 Flashing light with antenna incorporated without internal electronicsfor flashing RZ/99 Elbow support M/12 SERAI board C A N C E L L O A U T O M A T I C O CARTERS SOLD SEPARATELY A/69 Carter of ICE colour A/79...
- Page 3 PLANT TYPE RG58 + 2 X 0,75 mm² 3 x 0,5 mm² 2 x 0,5 mm² 3x1,5 mm² 4 x 1,5 mm² 230V~ 4 x 1,5 mm² 4 x 0,5 mm² 2 x 0,5 mm² 4 x 0,5 mm² M/10 electric key Motor reducer Pair of P/10 photocells CR/41 electronic control unit with...
- Page 4 BEFORE INSTALLING THE MOTORS Control the perfect perpendicularity of the gate hinges to allow rotation of the wing in absolute level conditions and most of all not unbalanced. The articulated arm of the motor must operate horizontally only without any ver- tical movement.
- Page 5 EXAMPLE FOR GATE INSTALLED TOWARDS THE EXTERNAL PART OF THE PILLAR A=160 Fig. 5 INSTALLATION 110mm After having defined the position of installation, fix the motor to the pillar using N°4 M8 screws (hex MOTOR FIXING head or cylindrical head with recessed hexagon) POINTS INTERAXIS complete with large washer (external diameter 24mm) with fixing system suitable for the type of...
- Page 6 10 - Close the motor by inserting the guard and release handle. Fix the guard using the two screws 2 and lock the release handle using the key in the lock. TURN THE KEY TO RELEASE THE HANDLE FIX THE GUARD USING THE 2 SCREW FASTENERS Fig.
- Page 7 INSTALLATION OF THE CR/41 CONTROL UNIT WHERE TO POSITION THE CONTROL UNIT Position the appliance in proximity of the gate in a way to reduce the length of the connection cable, to the rest of the system, to a minimum. For greater protection from atmospheric agents it is recommended to position the control unit under a roof or, even better, in a room that has two lateral walls.
- Page 8 FIXING THE CONTROL UNIT TO THE WALL It is recommended to position the appliance in proximity of the gate in a way to reduce the length of the connection cable, to the rest of the system, to a Ø 6 ÷ 8 mm minimum.
- Page 9 23 - 24 RECEIVER (23=BRAIDING, 24=ANTENNA) ANTENNA ELECTRIC LOCK Output 12 Vac 15 VA max for direct control of electric lock -SERAI M/83/1-. 25 - 26 CONTROL To reduce the noise a rectifier bridge can be used as per layout PHOTOCELLS 24Vac power supply output (max 500mA) for photocell type accessories.
- Page 10 ADJUSTMENT OF THE MOTORS STRENGTH The SERAI CR/41 control unit allows: A- adjustment of the motors strength by acting on the "Power" potentiometer in the control unit B- programming of the slowing which prolongs the life of the motor avoiding the gate banging against the...
- Page 11 SETTING OF EACH INDIVIDUAL MICRO SWITCH ATTENTION: In case of varying the setting of the micro switches to make the new settings active, it is necessary to switch the control unit off and on. We recommend, after having adjusted the micro switches, to program the work times -see control unit programming-.
- Page 12 SETTING DESCRIPTION OF THE FUNCTIONING FUNCTIONING THE MICRO SWITCHES SW 1 SW 2 - Sending a start control during opening is ignored, while during the gate opening pause, it makes the gate close. start - Sending a start control during gate closing cause it to stop for 2" STEP-BY-STEP and the successive automatic re-opening.
- Page 13 PROGRAMMING THE CONTROL UNIT Before programming, the system must be complete with all electrical devices and safety devices connected (buttons, photocells, flashing lights etc.). Check their correct functioning: All signal LEDs of the NC inputs (stop, photocells, etc) are on. All signal LEDs of the NO inputs (start, pedestrian) are off.
- Page 14 PROGRAMMING WORK TIMES AND SLOWING FOR GATE WITH SINGLE LEAF (DIP1 SW1 ON) With the control unit powered and the gate closes, press key A once (SET) to enter programming. The DL10 LED starts to flash to indicate that the control unit is in the programming state. Press key C (WORK) once to start the opening phase of motor (M1).
- Page 15 LEARNING THE RADIO CONTROL CODE The circuit board incorporates a dual-channel radio receiver at 433.92 MHz, which allows to control the gate at a distance via micro switch radio controls from the OG/02, OG/04 range and self-learning radio controls from the OG/62, OG/64, OG/28, OG/48, OG/52, OG/54, OG/82/1 and OG/84 range.
- Page 16 EXPANSION OF THE MINITRANSMITTER NUMBER If the 32 minitransmitters that can be memorised in the built-in receiver are not sufficient, it is possible to increase them by inserting the SOG/4A receiver (that takes the number of minitransmitters to 40) eventually with the addition of the SOG/2A expansion (that takes the number of minitransmitters to 834).
- Page 17 P/10 PHOTOCELLS DIMENSIONS POSITION INSTALLATION 70 mm 40 mm INSTALLATION CONNECTIONS THE POSITION OF THE CONTACT REFERS TO THE EXCITED RECEIVER Ø 6mm RECEIVER TRANSMITTER Ø 3,5mm The cables passage hole must be realised with RELAY OUTPUT POWER SUPPLY POWER SUPPLY dimensions suitable for the passage of just one cable PHOTOCELLS TECHNICAL DATA Relays output....1A 24 V~...
- Page 18 WARRANTY CONDITIONS The company reserves the right to make any modifications without forewarning. The conventional guarantee of SERAI product is valid for 24 months from the date of issue of the fiscal document, which proves purchase and is applied in the seat of Legnaro - PD - or at authorised After-sales Centres. The transport costs are under the Customer's responsibility.
