UNAcare UNAwheel Mini Basic User Manual page 15

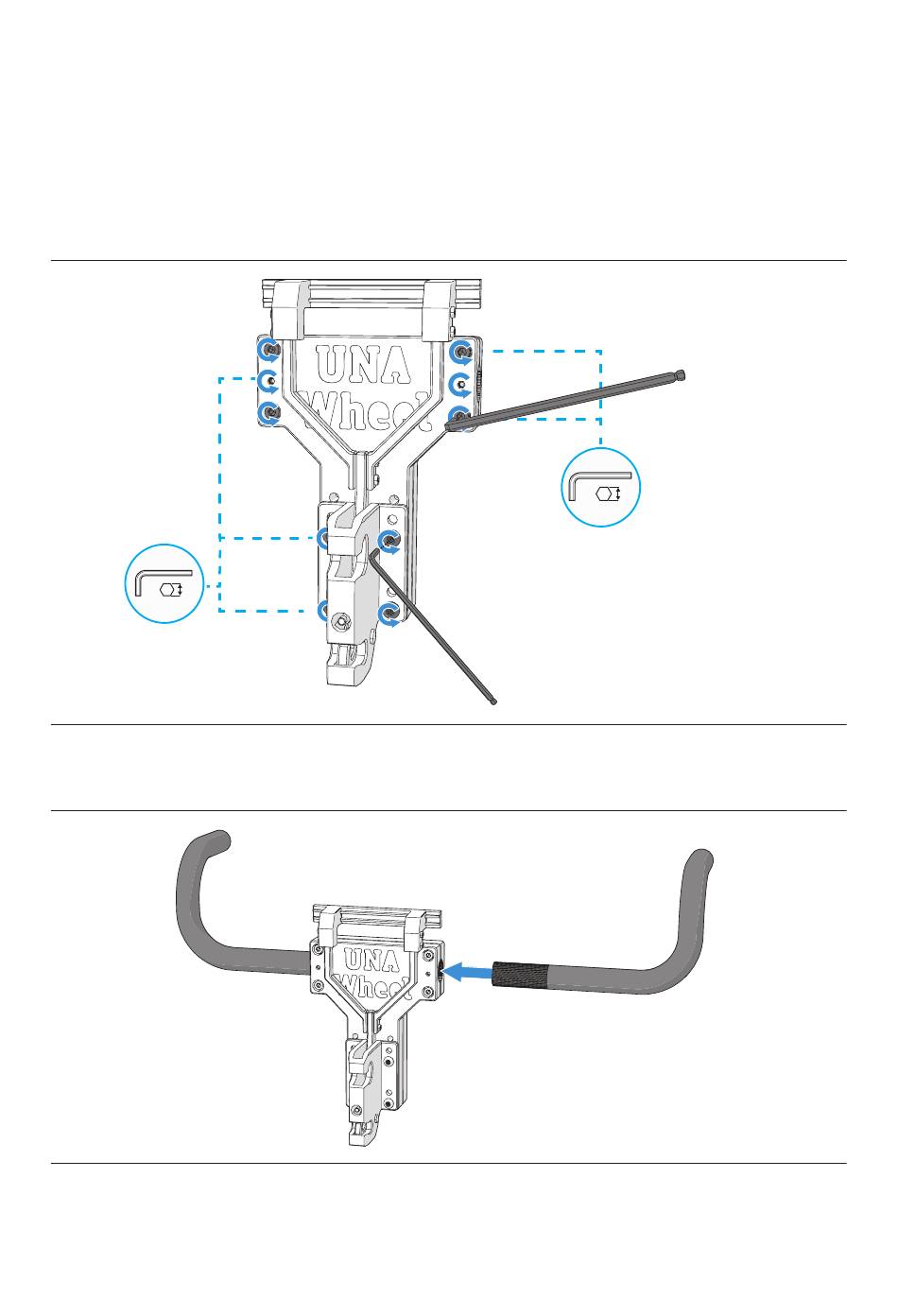

Assemble the central adapter
3.3.3
1
Loosen the 4 bolts on the top part of the central adapter. Use a 4 mm Allen wrench.
2 Loosen the 4 bolts on the bottom part of the central adapter. Use a 3 mm Allen
wrench.
3
Loosen the 2 smaller bolts located next to the adapter's sockets. Use a 3 mm Allen
wrench.
3
4
Insert the long ends of the curved tubes approx. 5 cm into the central adapter.
5 Lightly tighten all 10 bolts of the central adapter.
15
4
