5.
POWER

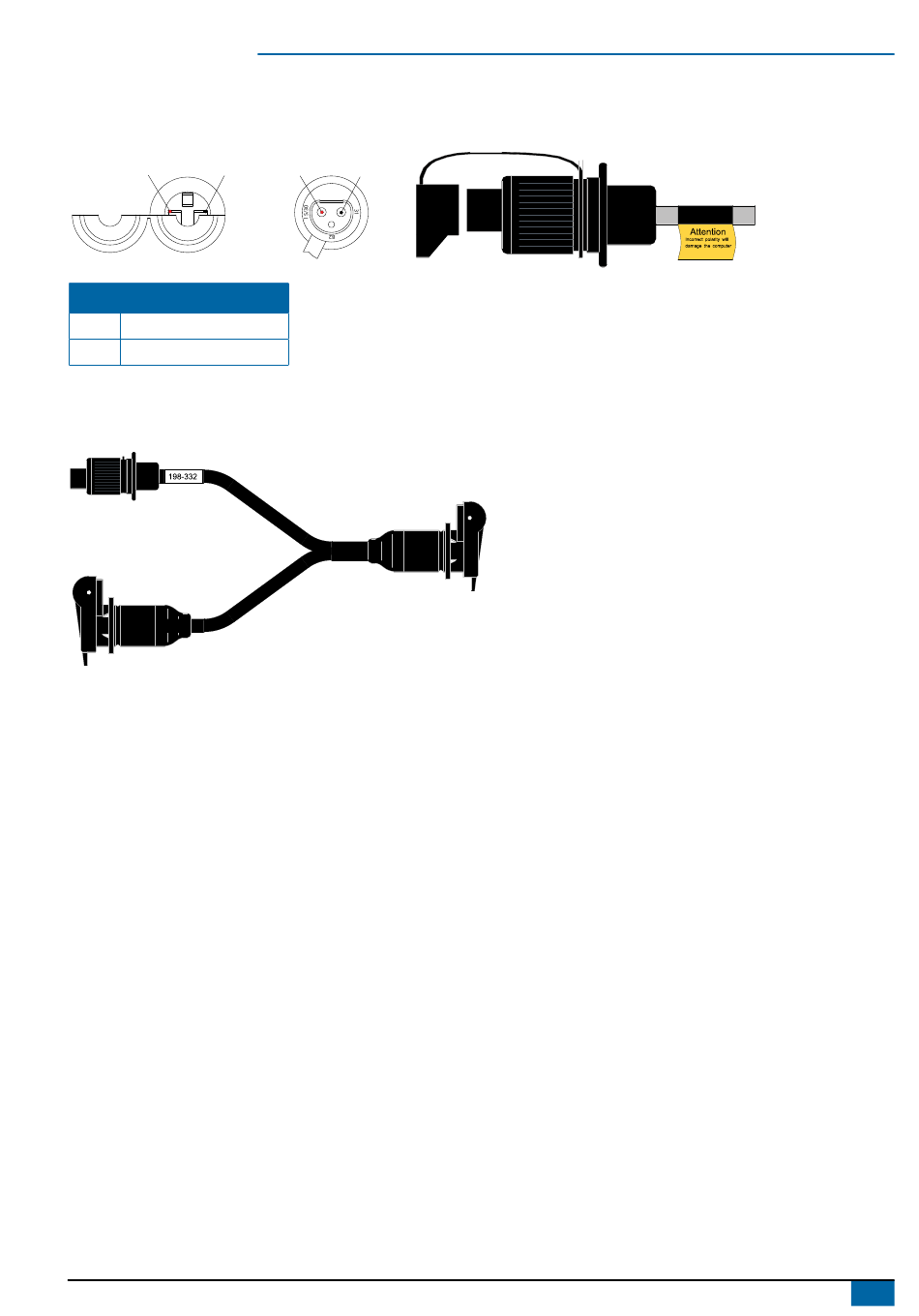

Connect the Matrix Pro GS to constant power via the 3P connector (Only the big pins no. 15/30 and no. 31 are used).
Warning: When connecting the system to 12V power it's very important that the polarity is correct, if not the system will be damaged.
+12V (15/30)
Ground (31)
-
+
Pos.
Description
1
+12V (15/30)
2
Ground (31)
Optional Battery Cable
If your tractor doesn't support two power sockets, TeeJet offer an 'Y-Power cable', PN 198-332 (Contact your TeeJet dealer).
6.
COMPLETE ELECTRONIC INSTALLATION
Refer to the Matrix Pro GS BoomPilot Setup in the full user manual for further instructions on setting up and using your Matrix Pro GS for
automatic boom section control.
If not using a Matrix Pro GS, please refer to the owner's manual supplied with the guidance system to complete the electronic installation
and setup.
+12V (15/30)
Ground (31)
BoomPilot
®
7
98-05328-EN
