BoomPilot
®
3.
BOOMPILOT INTERFACE
Connect the BoomPilot interface cable to the Amazone CAN bus, as
the last item before the Amatron controller.

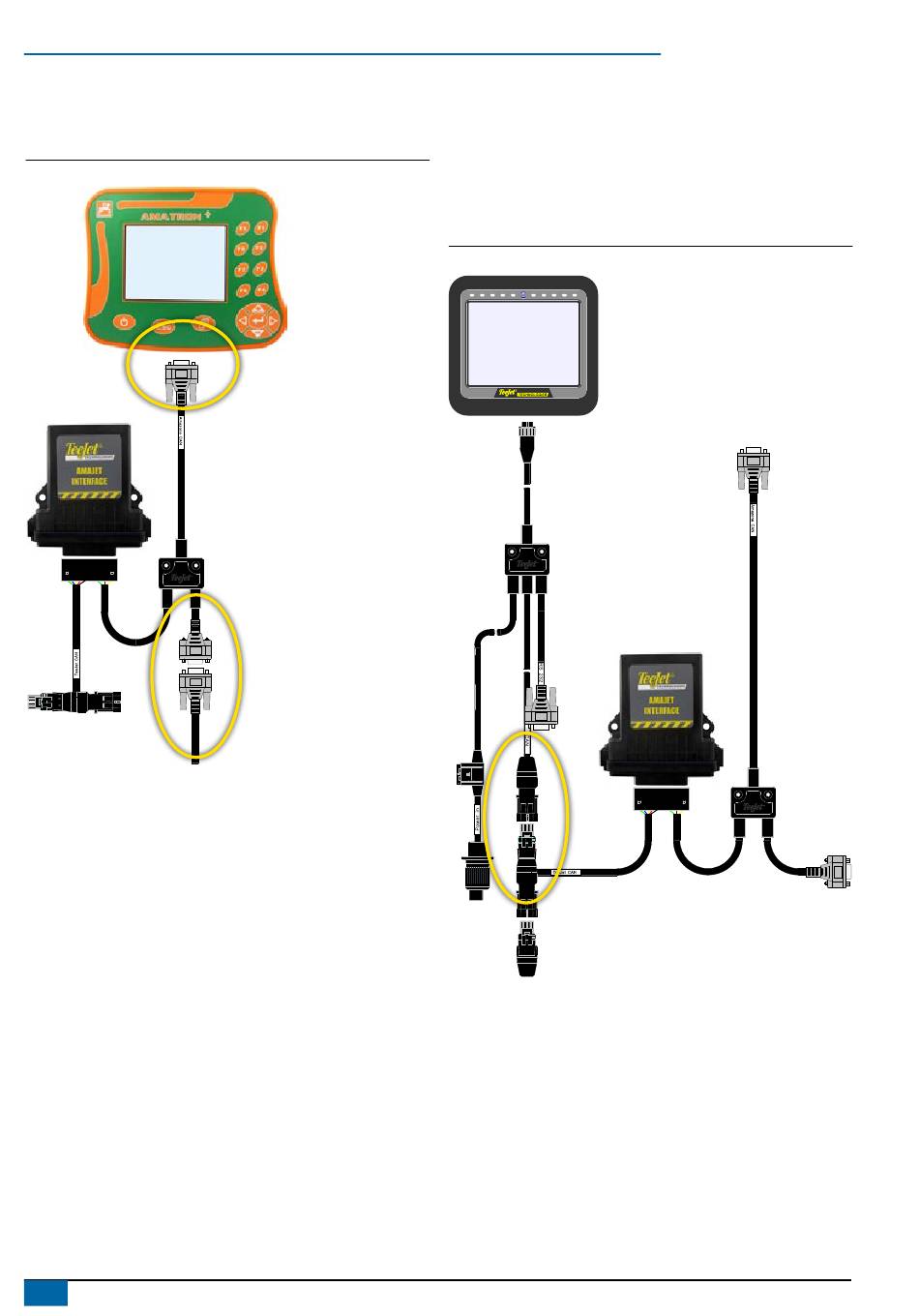

Figure 5: BoomPilot interface cable to the Amazone CAN bus
Amatron+ / Amatron-3
BoomPilot Interface
CAN <> CAN
Amatron CAN bus
6
www.teejet.com
4.
CAN/POWER/DATA CABLE & CAN
TERMINATION
Connect the BoomPilot interface cable to the TeeJet CAN bus via the
CAN/Power/Data cable. The CAN bus termination ends the CAN bus.
The TeeJet system can include other CAN bus modules like camera
selector module or similar, so the your system may vary from the
picture shown in the example.
Figure 6: CAN/Power/data cable & CAN termination
Matrix
A
B
Power
Matrix
BoomPilot Interface
CAN <> CAN
