BoomPilot
®
INTRODUCTION TO MATRIX PRO GS - BOOMPILOT
Principle of operation
The Matrix Pro GS controls the sprayer according to the GPS
position as well as the GPS guidance to avoid overlaps or skips. The
Matrix Pro GS controls the sprayer in automatic mode and monitor
the sprayer in manual mode. The operator is always able to override
the control of the sprayer via the master key on the Amatron rate
controller.
Features
The Matrix Pro GS and the Amazone BoomPilot interface, in
combination with Amatron+ or Amatron-3, adds 'Automatic boom
section control' to Amazone sprayers.

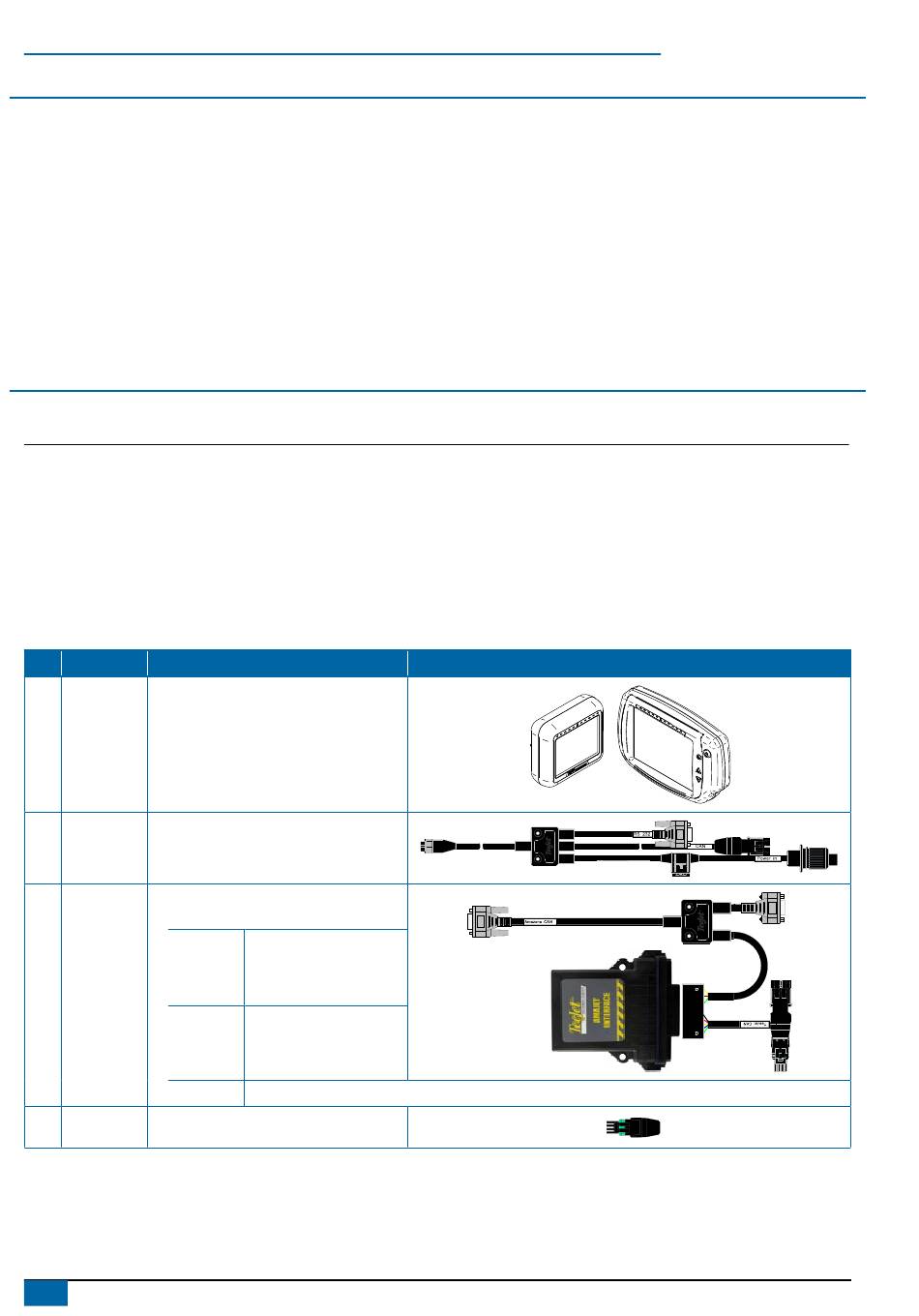

REQUIRED COMPONENTS
Unpack the installation kit and identify the required parts for your installation.
Item
Part Number
Description
A
90-xxxxx*
Matrix Pro GS guidance controller kit ..............................................................................................................................1
B
45-05826
Power/CAN/Data cable w/COBO connector ....................................................................................................................1
C
90-02883
Amatron+ / Amatron-3 BoomPilot interface with harness. ...............................................................................................1
45-05919
Harness, Amazone Interface .......................................................................................................................................1
78-05108
Interface, Amazone BoomPilot ....................................................................................................................................1
98-05328
Installation manual, Amazone Amatron+ / Amatron-3 Controller .................................................................................1
D
45-08101
CAN bus termination ........................................................................................................................................................1
*Part number is dependent on kit contents
Item
Part #
Description
Part
number is
A
dependent
Matrix Pro GS guidance controller kit
on kit
contents
Power/CAN/data cable w/COBO
B
45-05826
connector.
Amatron+ / Amatron-3 BoomPilot
Interface with harness.
45-05919
C
90-02883
78-05108
98-05328
D
45-08101
CAN bus termination.
2
www.teejet.com
Illustration
Harness, Amazone
Interface
Interface, Amazone
BoomPilot
Installation manual, Amazone- Amatron+ / Amatron-3 Controller.
Software version
The Amatron and the Matrix Pro GS communicates via a special
interface using the Amaclick CAN bus protocol. The software version
in the Amazone job-computer must be v7.07.16 or higher. If the
job-computer software is older than 7.07.12, please contact your
Amazone dealer.
NOTE: Messages on AMABUS system as to if the BOOM/TOWER
is active/inactive while in the transport position were not
implemented prior to version 7.07.12.
Matrix Pro 570G
Quantity
Matrix Pro 840G
