The Amazone system can include a joy-stick or/and a Amaclick switch box, so your system may vary from the system overview drawing, see
the possible combinations on the next page.

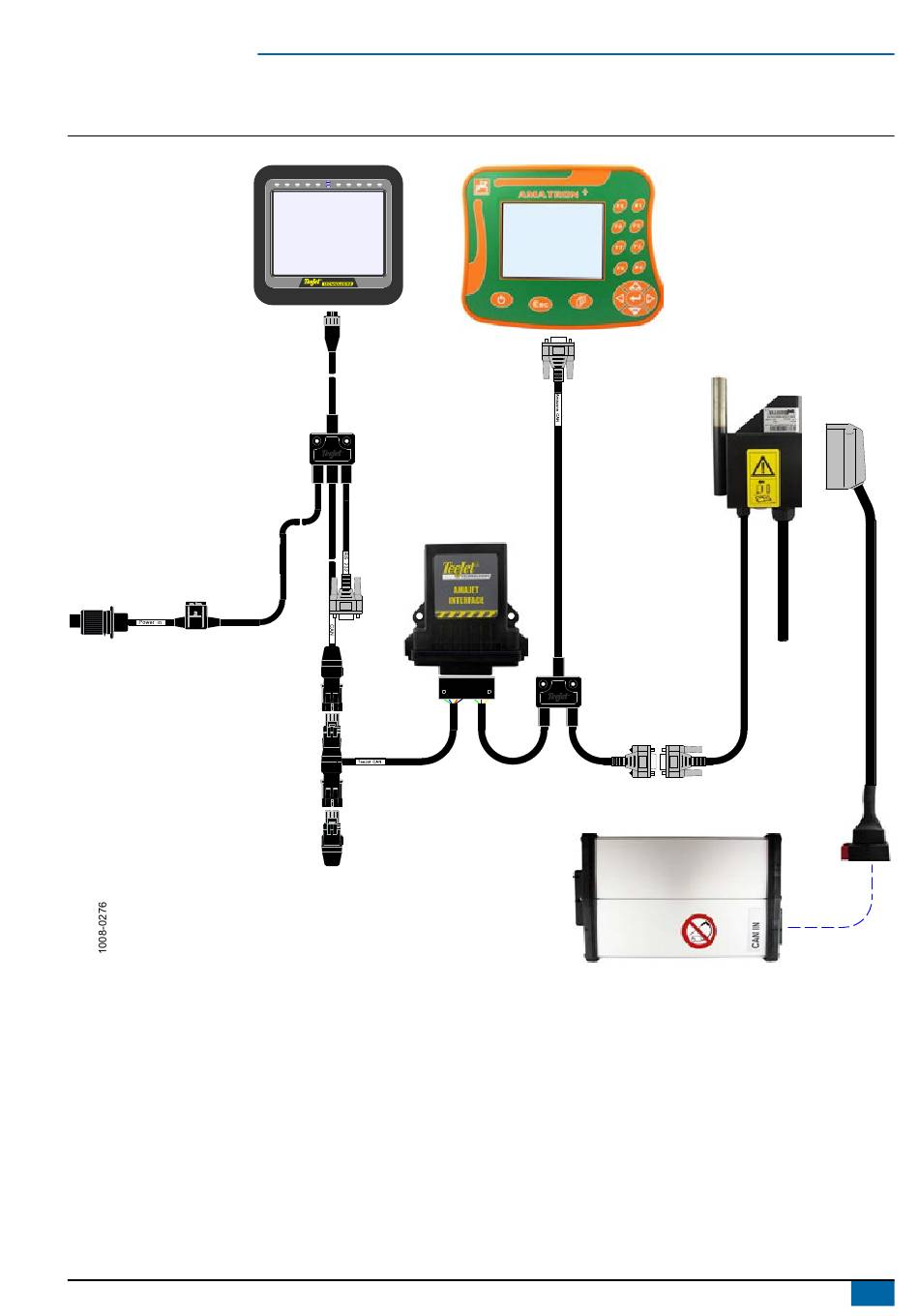

Figure 1: System diagram
Power
Matrix
Matrix
BoomPilot Interface
CAN <> CAN
A
B
Amatron+ / Amatron-3
Amazone Job-computer
BoomPilot
®
Power
Amazone
3
98-05328-EN
