Toa FB-601W AS Operating Instructions

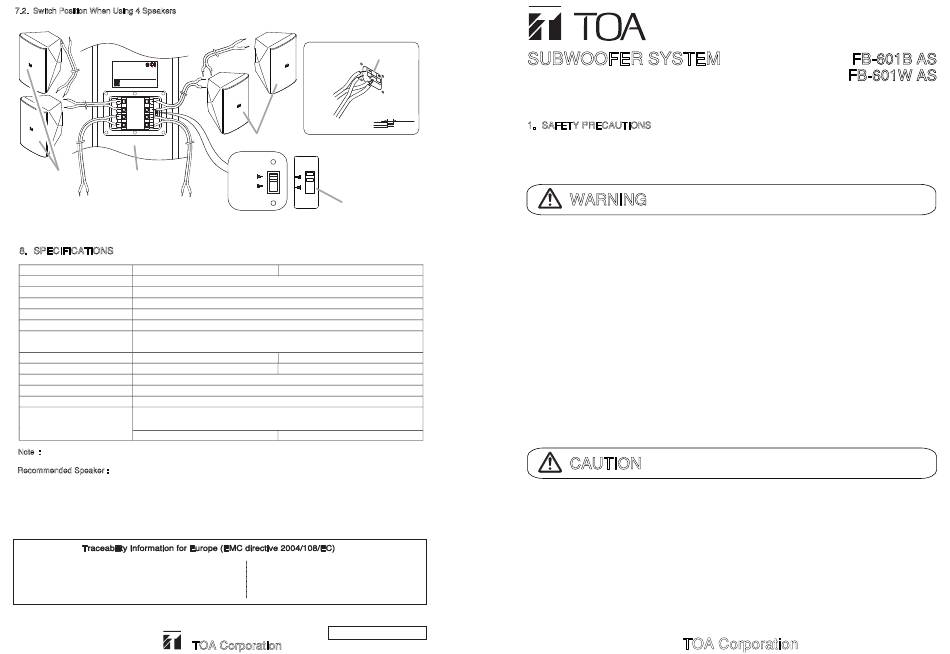

7.2. Switch Position When Using 4 Speakers

SUBWOOFER SYSTEM

model FB-601B AS
IMPEDANCE 6 Ω / CHANNEL
CONT.PGM.INPUT 120W / CHANNEL
TOA Corporation
MADE IN INDONESIA
OUTPUT
RIGHT LEFT
INPUT
RIGHT LEFT
Subwoofer unit
Speaker unit
to Amplifier
to Amplifier
8 . SPECIFICATIONS
Model FB-601B AS
Continuous Program Input
Rated Impedance
Sound Pressure Level
Frequency Response
Speaker Component
Input / Output Terminal
Front Panel ABS Resin Black
Cabinet Partikel Board with Vinyl Black
Mesh Speaker Grill
Dimension
Weight
Accessory
Bracket (Black paint) ... 4 pcs
The design and specification are subject to change without notice for improvement.
Note :
Recommended Speaker :
Factory recommends TOA Speaker model F-1000B/W to be connected to FB-601 Subwoofer
* When using two speaker, set switch position to " 2 SPEAKER " . ( refer to point 7.1 )
* When using four speaker, set switch position to " 4 SPEAKER " . ( refer to point 7.2 )
Manufacturer :
TOA Corporation
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
TOA Corporation
* Input Terminal Speaker
Input terminal
to speaker
[Stripped conductor
of cable]
from subwoofer
Speaker unit
Make sure the switch position
4 SPEAKER
is appropriate to use with
the amount of speaker.
4 SPEAKER
2 SPEAKER
2 SPEAKER
Switch Label
* NOTE :
The switch is factory preset
to "4 SPEAKER".
FB-601W AS
120 W per Channel
Ω
6
85 dB (1W, 1m)
40 ~ 190 Hz (-10dB below peak of SPL)
Double Subwoofer : 16 cm cone-type
Push-in connector
(bridging terminal, 8 pole type)
ABS Resin White
Partikel Board with Vinyl White
MEU R5001 Hard Black
210 (W) x 390 (H) x 563 (D) mm
11.5 kg
Rubber Foot ... 4 pcs
Tapping Screw 3x14 ... 4 pcs
Bracket (White paint) ... 4 pcs
Authorized representative :
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
URL: http://www.toa.jp/
533-06-212-00
SUBWOOFER SYSTEM
Thank you for purchasing TOA's Subwoofer System.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
9 mm
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.
•
Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions
regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
When Installing the unit
• Avoid installing or mounting the unit in unstable locations, such as on rickety table or slanted surface.
Doing so may result in the unit falling down and causing personal injury and/or property damage.
• Install the unit only in location that can structurally support the weight of the unit and the mounting bracket.
Doing otherwise may result in the unit falling down and causing personal injury and/or property damage.
• Since the unit is designed for in-door use, do not install it outdoors. If installed outdoors, the aging of parts causes the
unit to fall off, resulting in personal injury. Also, when it gets wet with rain, there is a danger of electric shock.
• Owning to the unit's size and weight, be sure that at least two persons are available to install the unit. Failure to
do so could result in personal injury.
• Do not use other methods than specified to mount the bracket. Extreme force is applied to the unit and the unit
could fall off, possibly resulting in personal injury.
• Use screws that are appropriate for the ceiling's or wall's structure and composition. Failure to do so may cause
the unit to fall, resulting in personal injury.
• Ensure that all screws are securely tightened. If they are not tightened or firmly secured after installation, the unit
resulting in personal injury.
• Use the specified mounting bracket in combination. Doing otherwise may cause the unit or component to fall
off, resulting in personal injury.
• Do not mount the unit in locations exposed to constant vibration. The mounting bracket can be damaged by
excessive vibration, potentially causing the unit to fall, which could result in personal injury.
CAUTION
When Installing the unit
• When unpacking or installing the unit, be sure to handle it with two or more persons. Falling or dropping the unit
may cause personal injury.
• Avoid touching the unit's sharp metal edge to prevent injury.
• To avoid electric shock, be sure to switch off the amplifier's power when connecting speakers.
When the unit is in use
• Do not place heavy objects on the unit as this may cause it to fall or break which may result in personal injury
and/or property damage. In addition, the object itself may fall off and cause injury and/or damage.
• Make sure that the volume control is set to minimum position before power is switched on. Loud noise produced
at high volume when power is switched on can impair hearing.
• Do not operate the unit for an extended period of time with the sound distorting. This is an indication of a
malfunction, which in turn can cause heat to generate and result in a fire.

OPERATING INSTRUCTIONS

indicates a potentially hazardous situation which, if mishandled, could result
in death or serius personal injury.
indicates a potentially hazardous situation which, if mishandled, could result
in moderate or minor personal injury, and/or property damage.
TOA Corporation
FB-601B AS
FB-601W AS
