Bunn Gourmet Ice Use & Care

BUNN
NOTICE – This guide is for quick reference only and is not intended to replace the information in the Operating & Service Manual!
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

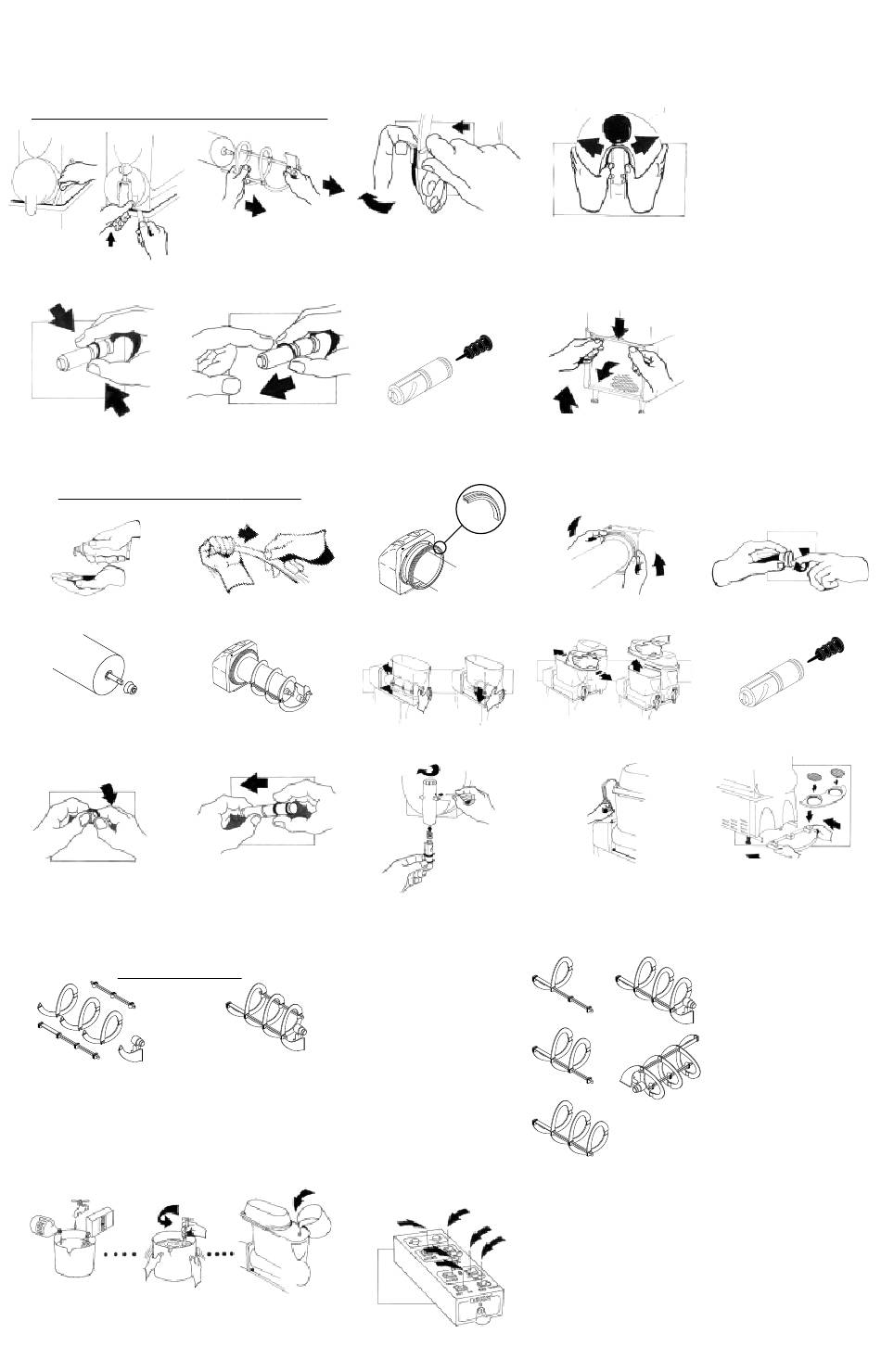

DISASSEMBLY & CLEANING
Empty all product from the hoppers before proceeding!
1. Lift the hopper up
slightly, then use a hard
plastic utensil to pry it up. Pull
forward to remove.
6. Squeeze the O-rings to free them
from the grooves in the faucet spool.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
LUBRICATION & ASSEMBLY
Lubricate after cleaning & before reassembly.
(Refer to product literature for Bunn approved lubricant.)
1. Squeeze some lubricant into hand.
6. Install the seal on the auger shaft.
11. Apply a thin film of lubricant to
the faucet spool O-rings.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

AUGER ASSEMBLY

(For early augers only.)
There are six pieces that snap together to make up the auger assembly.
They should be taken apart for cleaning and then reassembled for use.
BE CAREFUL, DON'T GET PINCHED!
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

OPERATIONS

Whether liquid concentrate or granulated powder, all product must be
thoroughly mixed BEFORE adding it to the hoppers.
28615.0000B 2/00 © 1998 Bunn-O-Matic Corporation
®
G o u r m e t I c e
G o u r m e t I c e
2. Pull the auger from the cooling
drum.
7. Roll the O-rings off of the faucet
spool.
2. Apply a thin film of lubricant to the
cooling drum seal.
7. Align the auger shaft with the flat
fin of the auger. Push the auger as
far as it will go and rotate it so the
flat fin is pointing up.
12. Slide the O-rings onto the spool.
USE & CARE
3. Disassemble the auger for
cleaning by spreading apart the
latches and removing each piece.
8. Remove the black plug from the
faucet spool for cleaning. Do not use
tools to remove this.
3. Install the seal over the flange at
the rear of the cooling drum as
shown.
8. Install the hopper over the cooling
drum with auger. Slide it into place
and push it down as far as it will go.
13. Reinstall
the plastic cap,
spring, spool, and metal pin. Spread
the dispense handle and reinstall it.
1. Snap one of the auger sections to
the long auger latch.
2. Snap another auger section in
place.
3. Snap the third auger section in
place.
4. Spread the sides of the dispense
handle and pull it off to remove the
faucet pieces.
9. Pull down, then out on the air filter
at the rear of the dispenser.
4. Press the seal firmly into place.
9. Set the lid on the hopper. Slides
front-to-back or lifts off for filling.
14. Plug-in the hopper lid lamp
cable.
All switch rockers towards the center of the drawer is the typical operating
position for an ice product in each hopper.
At night, simply place the DAY/NIGHT switch in the night position
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
5. Push the metal pin out through the
faucet. Unscrew the plastic cap, and
push the faucet spool and spring out
the bottom.
NOTE - Wash all parts, the air filter,
and the hoppers by hand! The use
of automatic dishwasher chemicals
may damage the plastic. Do not
immerse the hopper lid
assemblies. Rinse thoroughly
before lubrication & assembly.
5. Apply a thin film of lubricant to
the inside of the auger shaft seal.
10. Reinstall the black plug into the
faucet spool. Do not lubricate the
plug.
15. Assemble the drip tray.
16. Reinstall the air filter.
4. Snap the auger nose onto the last
section installed.
5. With the long auger latch on top,
place the short auger latch inside the
augers and snap it onto the
assembly.
