Folding the bike

Folding the handlebar:
(1) Lower the handlebar to its lower position and lock it.
(2) Pull-up the folding mechanism lock.
(3)Fold down the mechanism's lever.
(4) Fold down the handlebar itself.
Raising the handlebar:
(1) Straighten the handlebar.
(2) Lock the folding lever by locking it into
the stem.

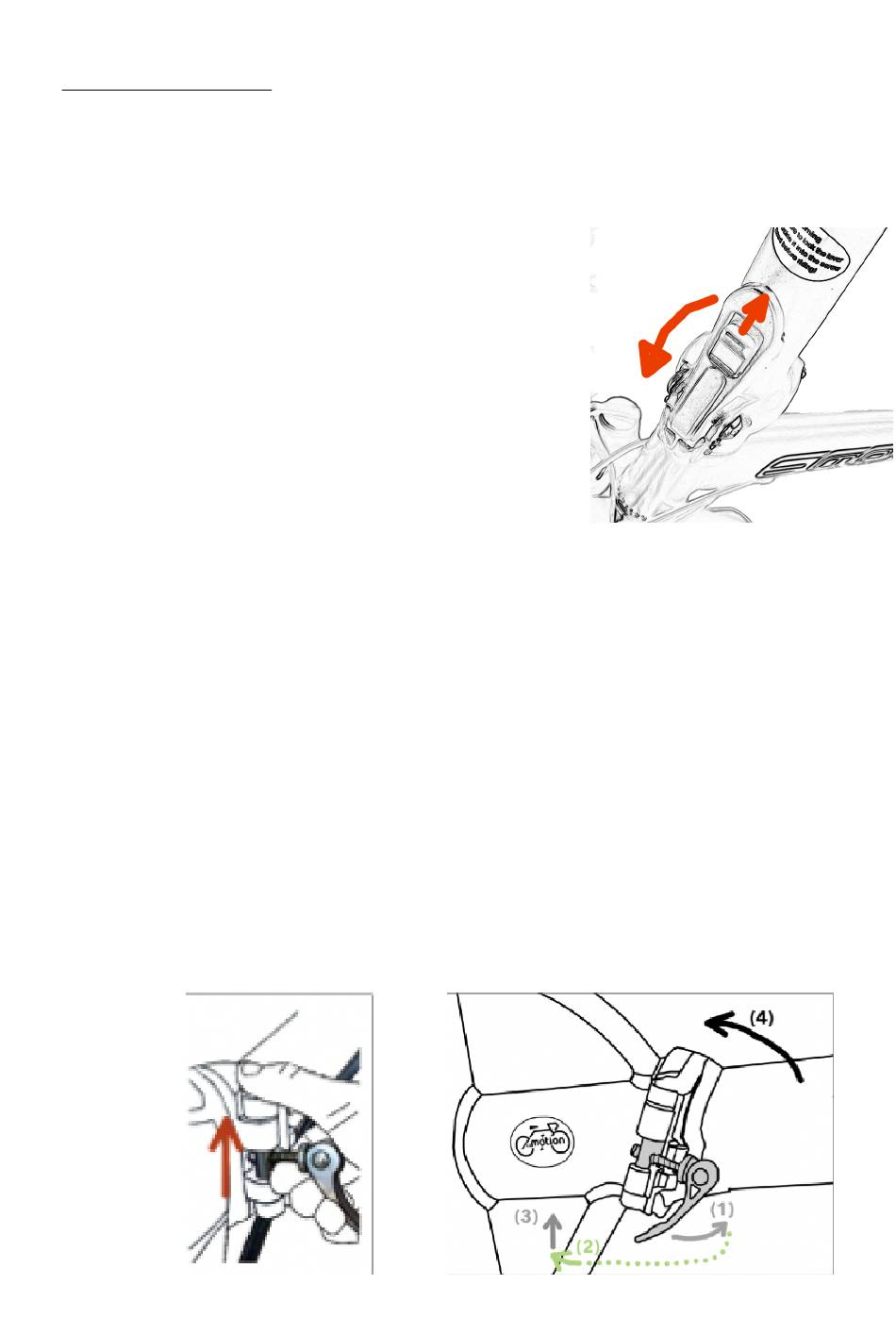

Folding the frame:
(1) Unlock the folding mechanism lever.
(2) Open the lever towards the rear side of the bicycle.
(3) Lift up the lever until a click is heard (double lock
mechanism).
(4) Folding up the bike frame
Return the frame to a riding position:
(3) Lift up the folding mechanism lever.
(4) Return the frame to its unfolded position
(2) Close back the lever.
(1) Lock the lever to its place.
