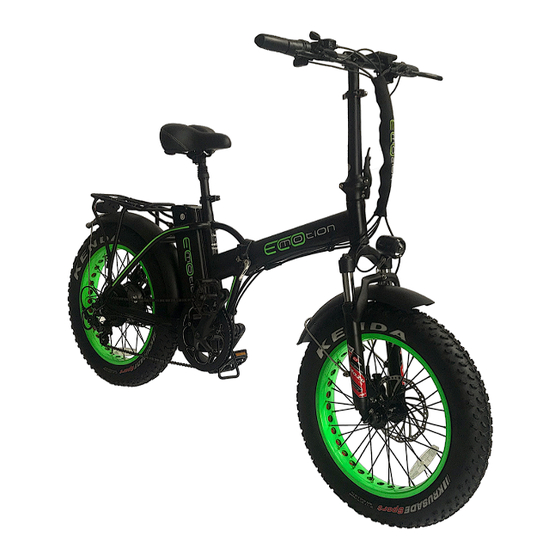

- Page 1 USER MANUAL CORE Pro + eFAT IMPORTANT! In order to ensure your safety and get the most out of your product please read this Manual carefully before first use. www.ecomotionbikes.com | contact@ecomotionbikes.com EcoMotion Bikes...
-
Page 2: Table Of Contents
Folding the bike Inspection prior riding Operating of the electric system The battery & charger Charging of battery Preserving of battery’s lifespan Tips for proper use Bike maintenance More info & contact us Malfunctions & solutions EcoMotion Bikes... -
Page 3: Warnings
Read this user manual responsibly, with care and judiciousness! Also, always make sure that your e-bike is well assembled, well maintained, and in a good condition according to this user manual prior to riding! EcoMotion Bikes... - Page 4 The recommended storage temperature for the battery is between 50°-80°F. WARNING! Do not leave the battery unattended in a closed vehicle! The vehicle may warm up by the sun and reach extremely high temperature! EcoMotion Bikes...
- Page 5 It is forbidden to use this bike by two users or more together at the same ride. You may install a child seat on its back-rack, make sure that your child weight not exceed 55 Lbs and that you use the child seat according to its manufacturer’s instructions.. EcoMotion Bikes...
-
Page 6: Definitions & Parts Locations
Parts location: Assembly instructions: 1. Handlebar: • Prepare the handlebar stem by opening its top hoop . EcoMotion Bikes... - Page 7 Adjust the handlebar so it will be aligned with the bike’s fork, re-open the handlebar folding mechanism, tight- up the stem's central screw, re-locked the handlebar folding mechanism, and then tight-up both of the stem's sides screws. EcoMotion Bikes...
-
Page 8: Headlight & Front Fender
Assemble the fender’s support pipes into the bottom of the fork (from both sides). 3. Front wheel: • Unscrew the fork support rod from the bottom of the fork, and pull out the plastic spacer from the brake caliper. EcoMotion Bikes... - Page 9 - rod lever WARNING! Make sure that the front wheel turns easily sideways and not jammed while you steering the handlebar. Make sure that the bike's wires and brake tube are not jammed or stretched during steering. EcoMotion Bikes...
-
Page 10: Saddle
For safe and comfortable riding, there should be clearance of no less than 1-2 inches between the rider and the top tube of the bicycle frame, while the rider straddles the bicycle with both feet on the ground. EcoMotion Bikes... -
Page 11: Pedals
Release a bit both of the caliper screws (the screws that connect the caliper to the fork), tightly press on the brake - lever and re-screw back the screws into their place while continuously pressing on the lever. EcoMotion Bikes... -
Page 12: Handlebar Height Adjustment
In order to avoid damage to stem that can lead for a sudden breaking, always make sure that the safety line that marked on the handlebar’s tube is hidden from the eye while locking it into its place. EcoMotion Bikes... -
Page 13: Mounting & Dismounting Of Battery
In order to switch the key from mode (2) to mode (1) the key should be pushed into the battery IMPORTANT! Make sure that while mounting the battery back into the frame, the battery is sliding on its allocated rail, if the battery is misplaced it may get stuck. EcoMotion Bikes... -
Page 14: Folding The Bike
(4) Folding up the bike frame Return the frame to a riding position: (3) Lift up the folding mechanism lever. (4) Return the frame to its unfolded position (2) Close back the lever. (1) Lock the lever to its place. EcoMotion Bikes... -
Page 15: Inspection Prior Riding
Check that there is no visual damage on the bike’s battery. • check that the battery is properly mounted, and that it locked in the bike's frame. • Check that the TAG / PAS systems are properly functioning. EcoMotion Bikes... -
Page 16: Operating Of The Electric System
Operating of the electric system: EcoMotion Bikes... - Page 17 • The front light, rear-light & the horn, controlled from the Horn & Lights buttons which located at the left side of the handlebar . • Turn off the bike by long press on the Power button EcoMotion Bikes...
-
Page 18: The Battery & Charger
• Do not crushed or disassembled the battery. WARNING! Use the battery for its intended purpose. Do not use it for other purposes, such use might be dangerous! Do not crushed or disassembled the battery. EcoMotion Bikes... -
Page 19: Charging Of Battery
In order to disconnect the charger from the battery, unplug the charger from the battery first, and then unplug it from the power outlet. WARNING! Charge the battery with the original charger only. Using an unoriginal charger is forbidden and dangerous! EcoMotion Bikes... -
Page 20: Preserving Of Battery's Lifespan
In case in which the battery won't be in use for a significant time, there is need to disassemble it from the bike and store it in a cool & dry location. Make sure that the storage period won’t exceed 45 days without recharging the battery again. EcoMotion Bikes... -
Page 21: Tips For Proper Use
• Avoid braking using front brake only, as doing so may cause the rider to be thrown forward from the bike. Always use both of the brakes when you’re braking. EcoMotion Bikes... -
Page 22: Bike Maintenance
/ wet areas. • Use only original parts. Do not use substitutes parts unless they permitted by Ecomotion Bike. please consult with us about substitutes parts at contact@ecomotionbikes.com. Using substitutes parts without consulting may void warranty. -
Page 23: More Info & Contact Us
& Liability, please visit us on: www.ecomotionbikes.com In case of product malfunction that you cannot solve by yourself according to this manual guide, please contact us at: contact@ecomotionbikes.com +1(323) 825 - 2518 EcoMotion Bikes... -
Page 24: Malfunctions & Solutions
PAS magnets away Attached the magnets to the from sensor sensor and retest PAS system Replace the sensor and Faulty PAS sensor doesn't work retest Faulty controller Replace controller and retest Replace the display and Display rupture wire retest EcoMotion Bikes... - Page 25 Charger indicator light flashes and not Faulty charger Replace the charger change into red (not charging) Loose connector Check all connectors Bicycle has Loose fuse Check fuse connector intermittent power Damaged wires Inspect all wires EcoMotion Bikes...
