Using the ProTrax Multi-Angle Saw Table: Cutting a 3/12 Pitch
3/12 pitch can only be set from the left side of the table.

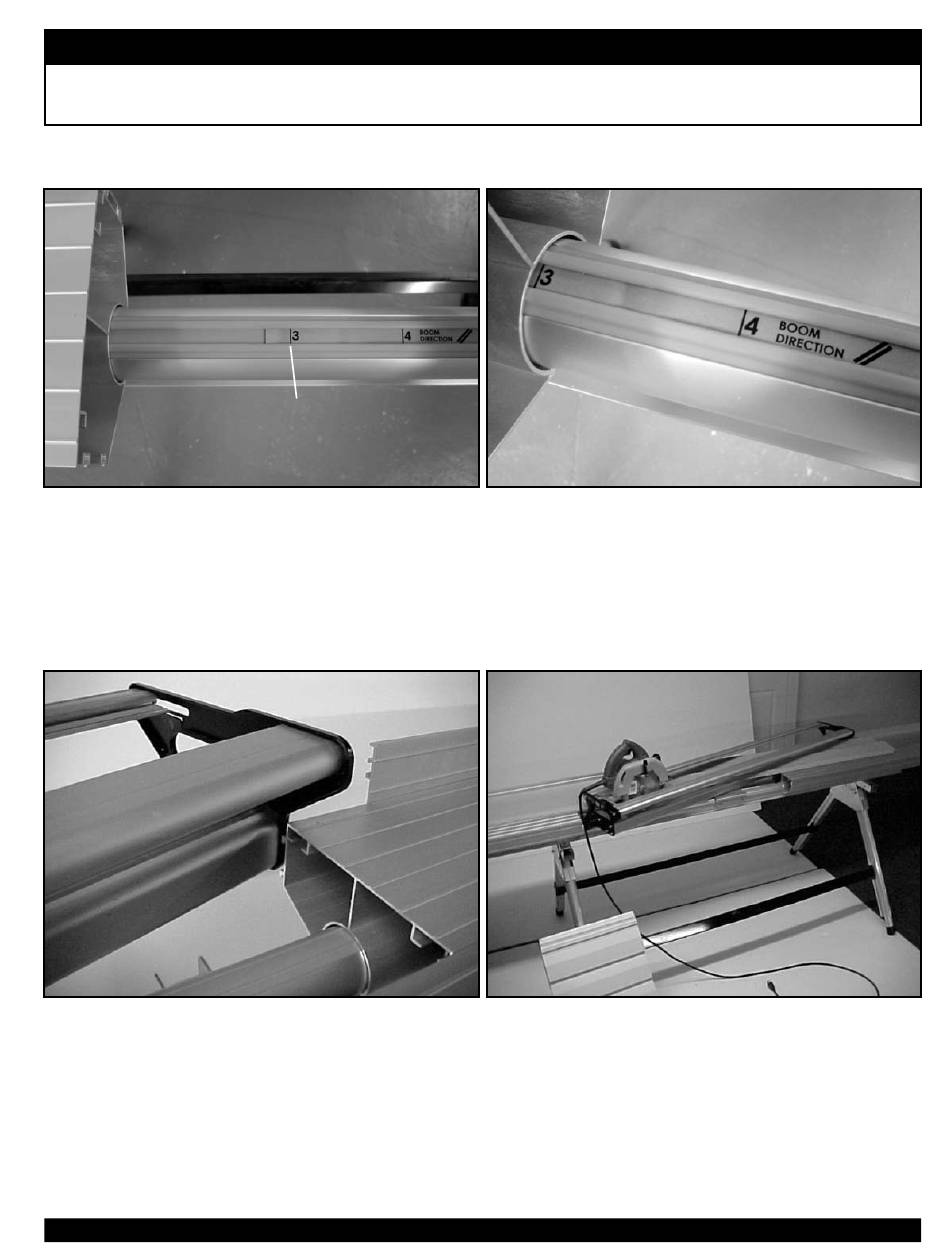

STeP 1
Slide the work surfaces away from the Boom. Find the "3" indicating line on the
left rear wear strip. Slide the left rear table until it meets the "3" line. With the left
front table pushed out of the way, rotate the handle end of the boom leftward until
it contacts the work surface that is touching the "3" line.
STeP 2
Push the Boom toward the rear. Move the right
rear surface up against the Boom. The black
Boom End should be just outside of the right rear
work surface to allow material to pass through
the Boom. The Maximum material width that can
be cut in this position is 9".
& M a x T r a x
3/12 PITCH
S a w T a b l e s
STeP 3
Lock the Boom and slide the remaining
surfaces and fences into position.
8
