Installing The Fence Tape; Attaching Deck Extender - Tapco ProTrax Operating Instructions Manual

P r o T r a x

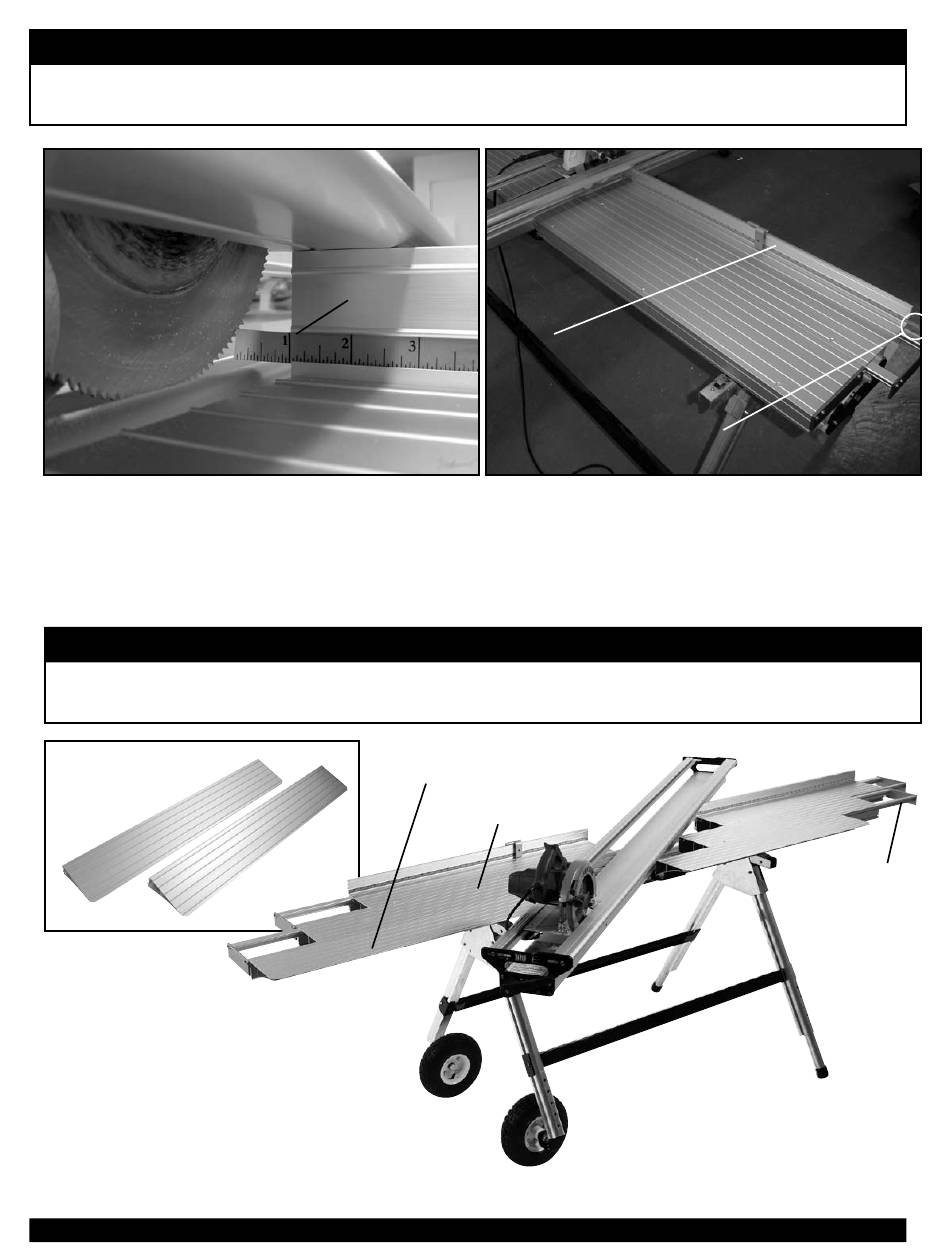

Installing the Fence Tape on Your ProTrax and MaxTrax Saw Tables
STeP 1
A right hand and left hand tape measure is included. Slide the fence
tape into the track in the fence until it contacts the saw blade. On the
end of the fence, peen the tape in place and trim off any excess.
Attaching Deck extender - (optional on ProTrax)
STeP 1
Slide out Table Extensions on both sides.
STeP 2
Slide the deck extender along the
grooves on the deck from both ends as
seen in the figure at right.
STeP 3
Now you can slide the Table Extensions.
5
& M a x T r a x
Peen Here
FenCe
TrACk
rIGHT HAnD
TAPe SHown
DeCk
exTenDerS
DeCk
S a w T a b l e s
TrIM oFF
exCeSS
Slide Deck extenders
along grooves on deck
TABLe
exTenSIonS
