P r o T r a x

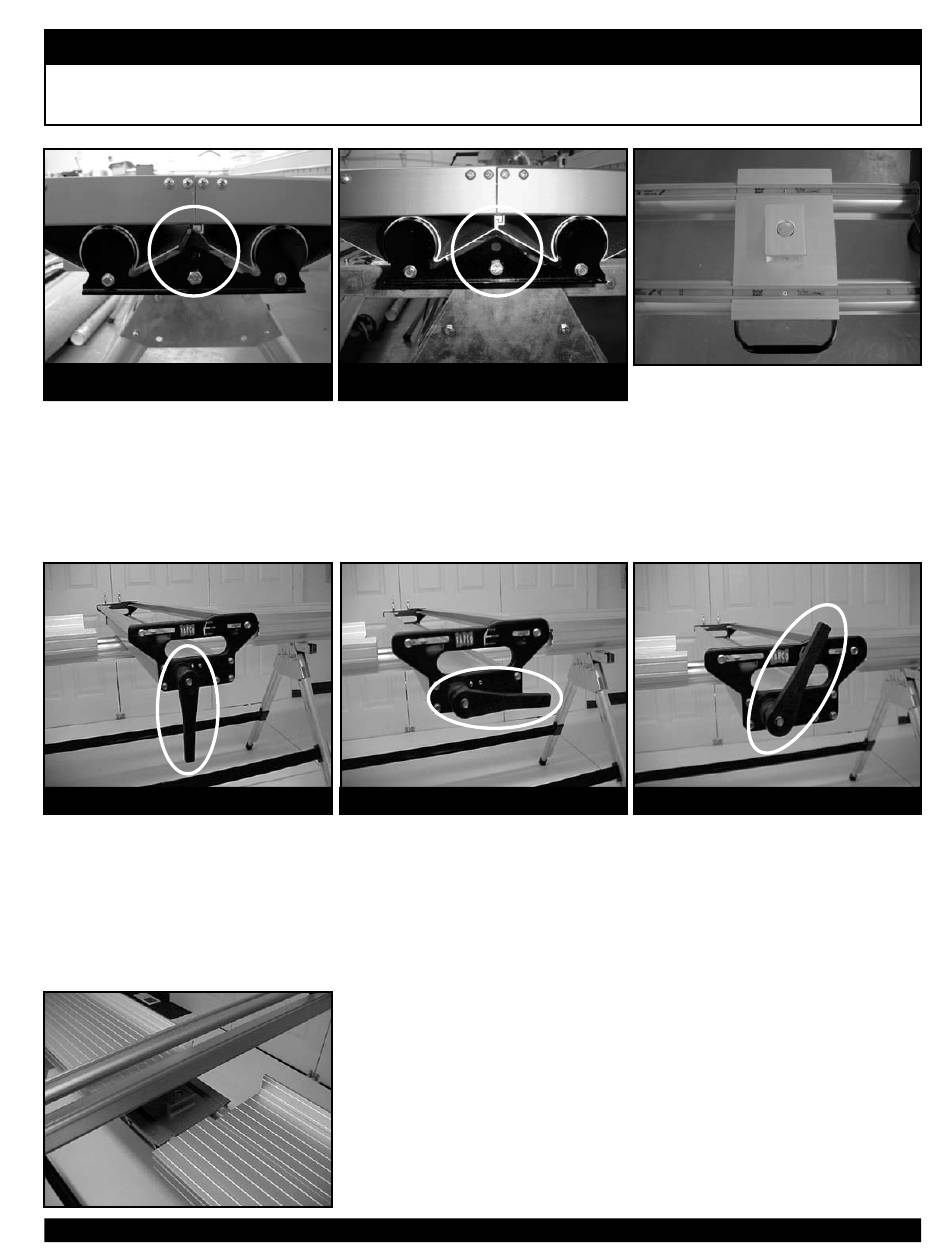

Setting Up Your ProTrax and MaxTrax Saw Tables
LoCkeD
Rotate Endlatch up to lock
Work Surfaces in place.
STeP 1
With the ProTrax and MaxTrax Saw Table removed from the
box, secure it on either saw horses or the optional Snap Stand.
See Snap Stand instructions for more details. Unlock the work
surfaces on each end and move them away from the center of
the table unit to ease boom assembly.
UnLoCkeD/reMoVe
"Down" Position
When the handle is in the "down"
position, the Boom can be put on
or taken off of the table.
& M a x T r a x
UnLoCkeD
Rotate Endlatch down to
unlock Work Surfaces.
roTATe/SLIDe
"Horizontal" Position
When the handle is in the
"horizontal" position, the Boom
can move freely while still
attached to the saw table base.
STeP 3 - MoUnTInG THe BooM
Move the handle of the saw boom to the unlocked, or "down"
position. Estimate the middle of the Boom's length, then place
the Boom over the Lock Block. The Boom will cover the Lock
Block and come to rest on the Saw Table Center Plate. Move the
handle to the rotate/slide or "horizontal" position to secure the
Boom to the table.
S a w T a b l e s
STeP 2
Orient the Lock Block to
the position shown above.
"Up" Position
When the handle is in the "up"
position, the Boom is locked.
The boom must be locked before
using the circular saw.
noTe: The handle is designed
to stop before it is vertical.
LoCkeD
