Tapco ProTrax Installing

Installing saw table on snap stand
Hide thumbs Also See for ProTrax:

Advertisement

Installing a ProTrax
snap buttons are
toward working
side of saw table

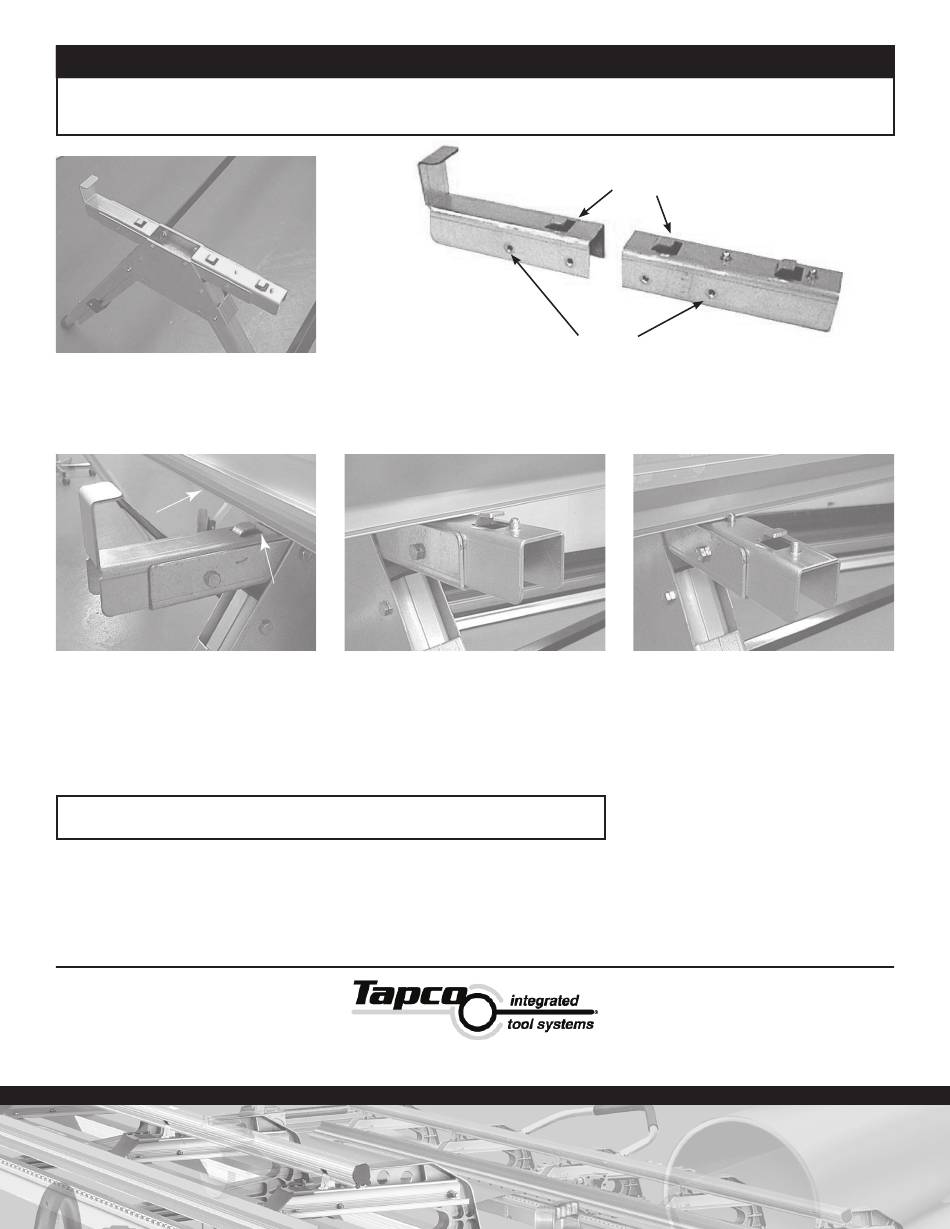

STEP 1
Using the 1/4-20 bolts and lock washers provided, fasten the ProTrax/MaxTrax mounts to the Leg Set. The
snap buttons will be on the working side of the brake. Repeat for the other Leg Set. Be sure both ends of
the Snap Stand are going the same direction (with the snap buttons on the same side) See Figure 1 above.
rear lip
rear lip
bypassing
rear clip
STEP 2
Place the ProTrax/MaxTrax on the
Snap Stand Assembly with the rear
lip of the sub structure clearing the
rear clip. See Figure 2 above.

Removing the ProTrax or MaxTrax:

1. Removing the ProTrax/MaxTrax from the Snap Stand is essentially the opposite of attaching it to the stand.
2. Depress the snap button and pull the saw table forward far enough to hold each snap button down.
3. Be sure the lip on the rear sub structure is out of the Rear Clip. The ProTrax/MaxTrax can now be removed
from the stand.
4. Reverse Steps 1 and 2 on page 2 to disassemble the stand for transport.
© Boral Building Products Inc.
S n a p
S n a p
or MaxTrax
Figure 1
Figure 2
STEP 3
The snap button will be
covered by the front sub
structure of the ProTrax/
MaxTrax. See Figure 3 above.
29797 Beck Road • Wixom, MI 48393-2834
S t a n d
S t a n d
Saw Table on Snap Stand
use these clips
use these holes
Figure 3
STEP 4
Push the ProTrax/MaxTrax firmly
rearward into the rear clips. The
snap buttons will pop up and
secure the saw table on the Snap
Stand. See Figure 4 above.
3
®
Figure 4
Item # 11987
T7924 1/10
