Unboxing & Assembly
1. Using a utility knife, open the box and remove the
snowthrower.

IMPORTANT NOTE

When removing the snowthrower from
the box and unfolding the handle bars
DO NOT PINCH THE AUGER CONTROL
CABLE IN THE HANDLE BARS.
2. The right side upper handle is bolted to the outside of
the lower handle for shipping purposes. Unbolt and
move the right side upper handle to the inside of the
lower handle. Reinstall the bolt and knob. Lift up the
folding handle to align it with lower handle and tighten
the wing knobs securely as shown in Figure 1.
3. Install the lower chute handle onto the discharge
chute with two hex head capscrews (Figure 2).
4. Install the chute/handle assembly onto the discharge
opening and secure with three carriage bolts and nuts
(Figure 2). Tighten all hardware securely. Do not
overtighten.
TP 300-3862-00-SW-S

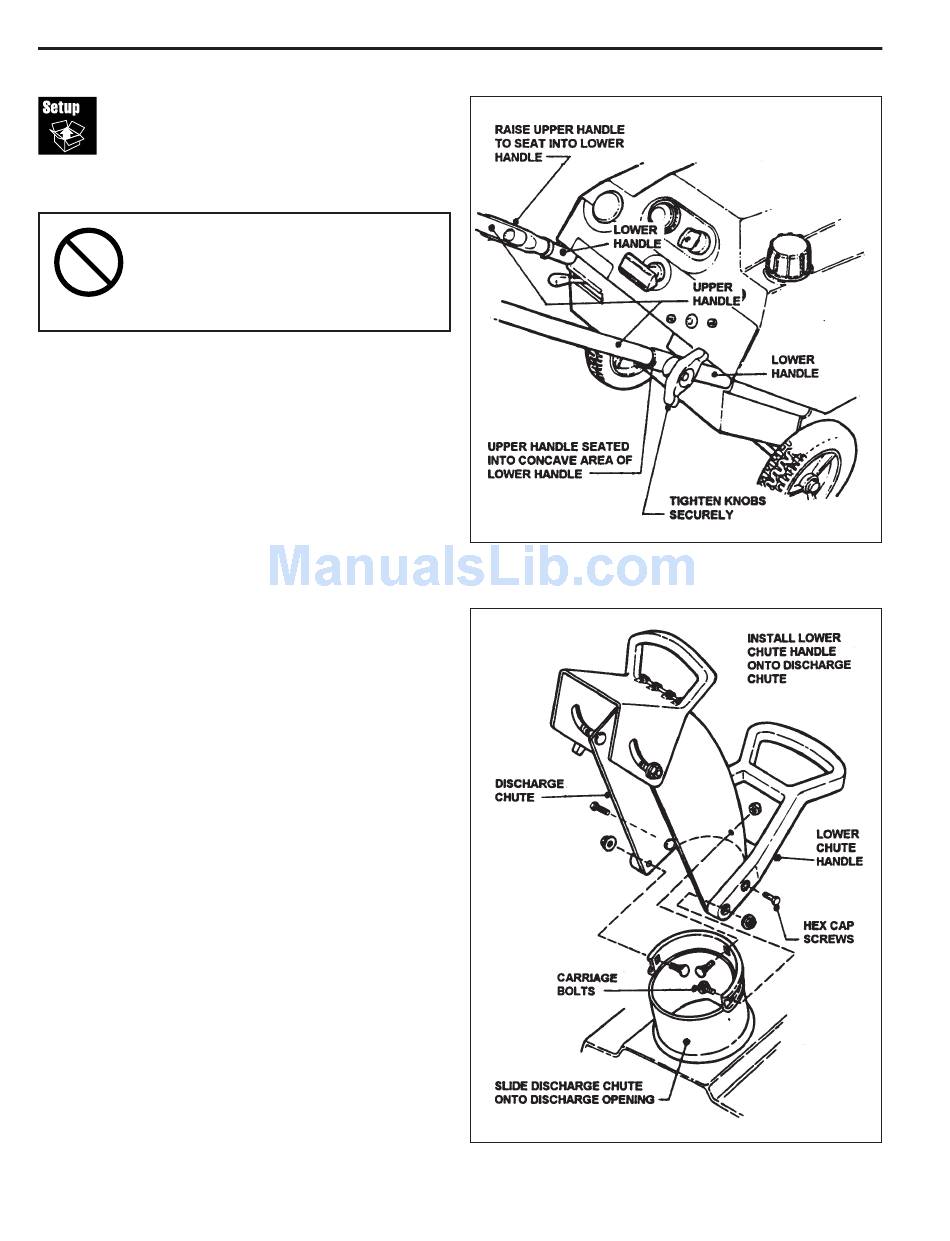

Figure 1. Install Handle Bars
Figure 2. Install Discharge Chute
4
4/2003
