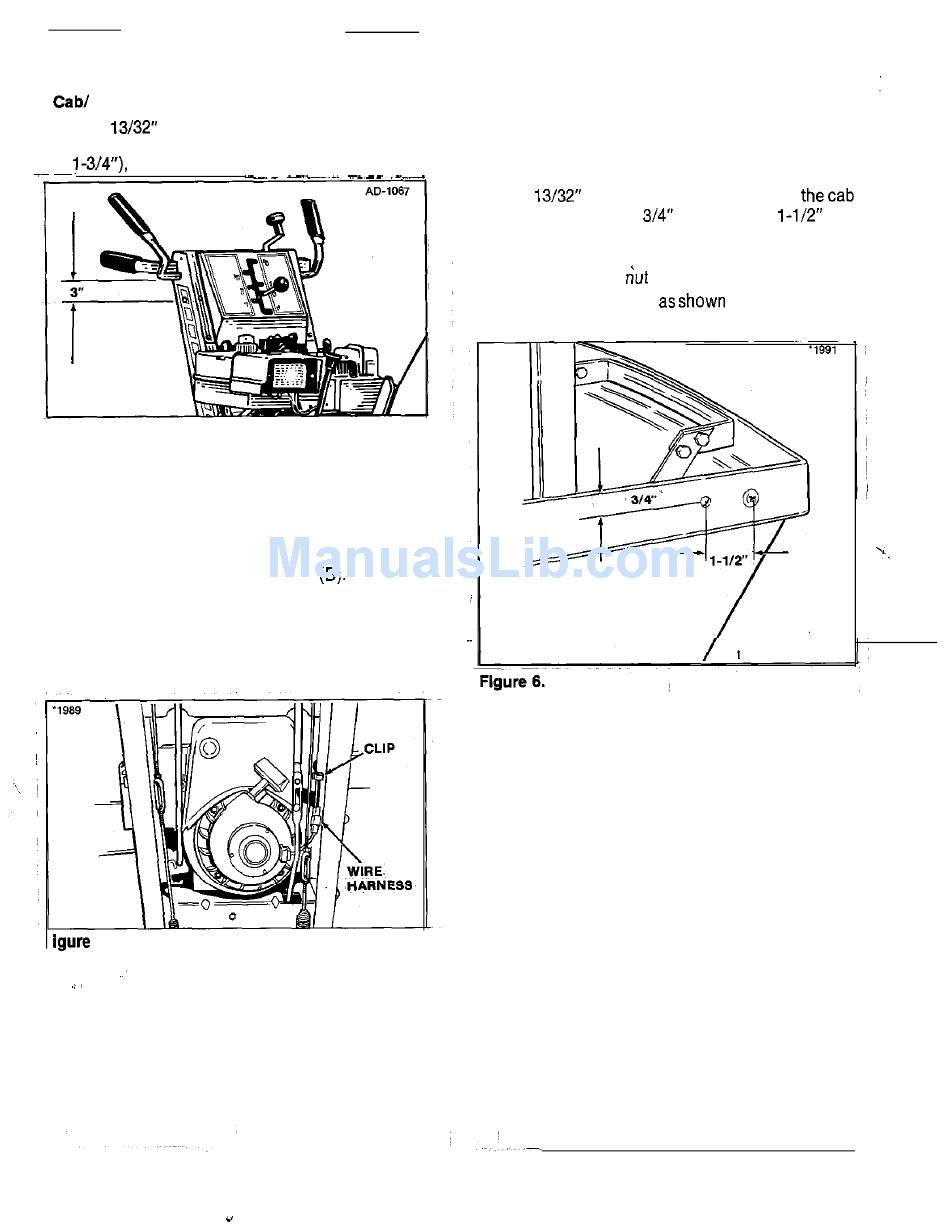

Snapper 1691827 Installation Instructions page 2

Section D. Large Frame Snowthrower With Soft-
1. Drill 13/32" hole in right-hand side channel, 3"
below auger drive handle and centered (approx.
Figure 4.
2. Install light with capscrew, lockwasher, and nut
(nut on inside).
3. Install alternator as provided in the Tecumseh
Installation Instructions. Make sure alternator is
installed with wire harness plug at the 3:00
position. Use the appropriate alternator shaft (F,
figure 1) and self-tapping screws (B).
4. Install clip on upright as shown in figure 5 to
prevent wire from interfering with recoil starter.
Plastic ties provided with kit will not be used.
5. If soft cab is used, tuck the right-hand side of cab
around the light bracket
F igure 5.
Section E. Large Frame Snowthrower With Hard :
C a b .
NOTE
Hard cab should be installed first before
installing light kit.
1. Drill 13/32" hole in the right hand side of thecab
f r a m e , a p p r o x . 3/4" d o w n a n d l-1/2" f r o m
capscrew, as shown in figure 6.
2. Install light through cab frame with capscrew,
lockwasher, and nut (nut on inside).
3. Install clip on upright asshown in figure 5. Plastic
ties provided with the kit will not be used.
