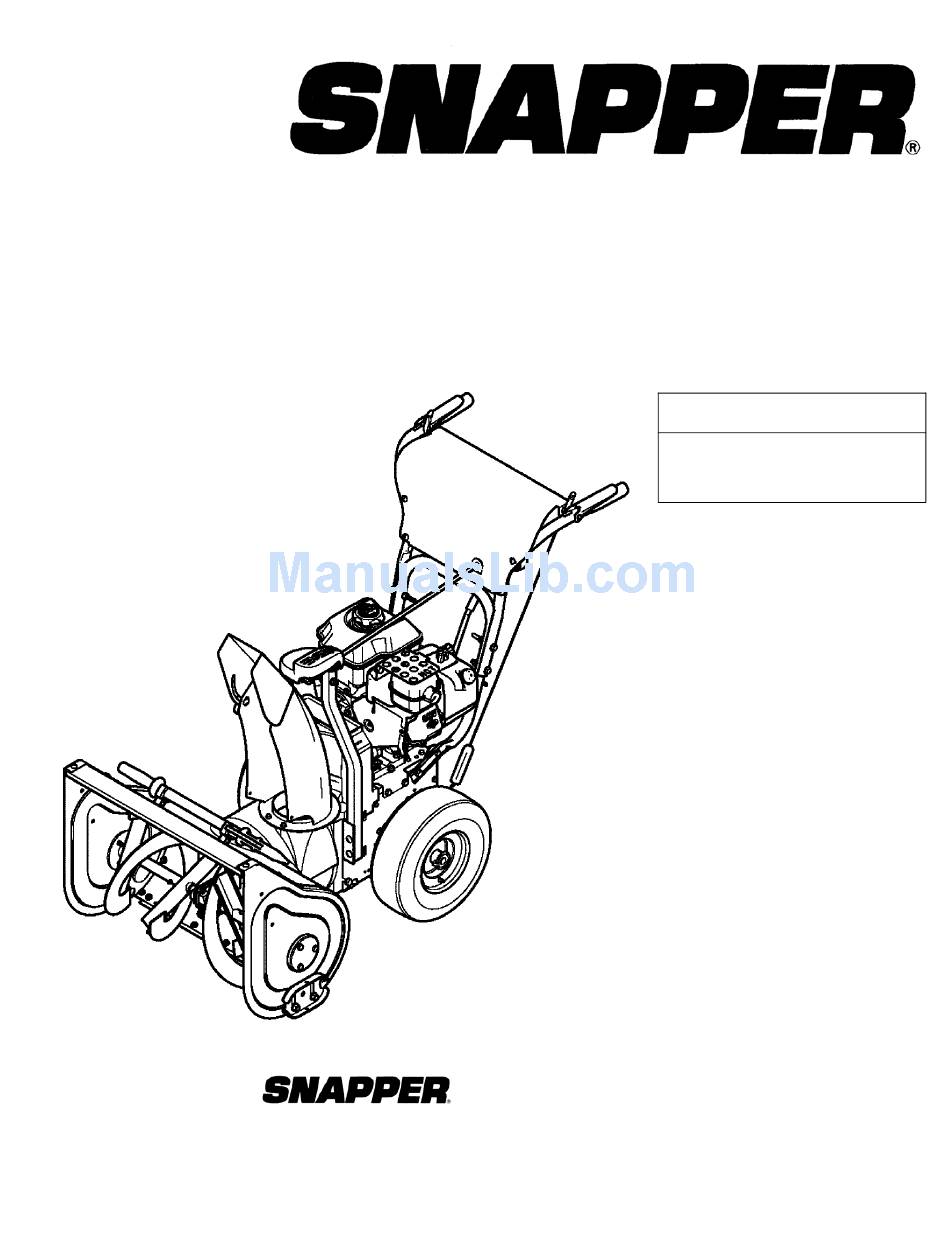

Parts Manual for
TWO STAGE INTERMEDIATE FRAME
24" SNOW THROWERS
2008 MODELS
MODEL
924I (1695313)
924IE (1695314)
924IR (1695411)
McDonough, GA, 30253 U.S.A.
Briggs & Startton Yard Power Products Group
Manual No.
7006187
Copyright ©
2007
Briggs & Startton Corporation
Milwaukee, WI USA. All Rights Reserved
Revision IR,
9/20/2007
TP 400-5297-IR-IS-N
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Snapper 924I
Summary of Contents for Snapper 924I
- Page 1 Parts Manual for TWO STAGE INTERMEDIATE FRAME 24" SNOW THROWERS 2008 MODELS MODEL 924I (1695313) 924IE (1695314) 924IR (1695411) McDonough, GA, 30253 U.S.A. Briggs & Startton Yard Power Products Group Manual No. 7006187 Copyright © 2007 Briggs & Startton Corporation Milwaukee, WI USA.
-
Page 3: Table Of Contents
PAGE GROUP Handles & Controls Group Auger Housing & Chute Group Auger Drive Group Engine & Frame Group Traction Drive Group Wheels & Tires Group Decals Group TWO STAGE INTERMEDIATE FRAME 2008 MODELS Table Of Contents Manual No. 7006187 TP 400-5297-IR-IS-N... - Page 4 Manual No. 7006187 TWO STAGE INTERMEDIATE FRAME TP 400-5297-IR-IS-N 2008 MODELS...
-
Page 5: Handles & Controls Group
Handles & Controls Group Item Part No Description 725684 CABLE, Auger 723154 BOOT, Spring End Cover 722520 SPRING, Auger Control 1920397 NUT, Hex Lock Esna Light 1/4-20 1734250D PANEL, Dash Upper 1919326 WASHER, 5/16 1921978 CAPSCREW, Hex Head 5/16-18 x 2 G5 1740573A HANDLE, Upper 1960126... -
Page 6: Auger Housing & Chute Group
Auger Housing & Chute Group Manual No. 7006187 TWO STAGE INTERMEDIATE FRAME TP 400-5297-IR-IS-N 2008 MODELS... - Page 7 Auger Housing & Chute Group Item Part No Description 1935048 NUT, Hex Flange 5/16-18 Two Way Lock 1734442 COVER, Gears 1732412 BOLT, Shoulder 5/16-18 G5 1734774 GEAR & SUPPORT ASSEMBLY, Chute 1733026 WASHER, Powdered Metal 1922127 CAPSCREW, Hex Head 5/16-18 x 1-3/4 G5 1960684 NUT, Hex KEPS 5/16-18 Conical Washer 1734440...
- Page 8 Auger Housing & Chute Group Manual No. 7006187 TWO STAGE INTERMEDIATE FRAME TP 400-5297-IR-IS-N 2008 MODELS...
- Page 9 Auger Housing & Chute Group Item Part No Description 2860604 SCREW, Hex Washer Head Slot #10C x 1-1/4 G2 1726459D PLATE, End R.H. 14GA 1734475D WRAPPER ASSEMBLY, 24" Auger 1733209 STICK, Cleanout w/Brush 7091542 SCREW, Phillips Head Taptite, Torx 5/16C x 1/2 720727 WINGNUT, 5/16-18 1734227...
-
Page 10: Auger Drive Group
Auger Drive Group Manual No. 7006187 TWO STAGE INTERMEDIATE FRAME TP 400-5297-IR-IS-N 2008 MODELS... -
Page 11: Impeller Assembly
Auger Drive Group Item Part No Description 1668344 PIN, , Shear 1715091 PULLEY, Auger Input 1715120A IMPELLER ASSEMBLY 1726535A AUGER ASSEMBLY, L.H., 22" Housing 1726536A AUGER ASSEMBLY, R.H., 22" Housing 2818312 KEY, Woodruff 1928721 SCREW, Set Square Head Cup Point 5/16-18 x 1/2 G8 1960474 SCREW, Set Square head Cup Point 3/8-16 x 1/2 G8 7023590... -
Page 12: Engine & Frame Group
Engine & Frame Group Manual No. 7006187 TWO STAGE INTERMEDIATE FRAME TP 400-5297-IR-IS-N 2008 MODELS... - Page 13 Engine & Frame Group Item Part No Description 1664847 SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 1732486 COVER, Belt w/Toolbox 1733014 STOP, Belt 1733324 V-BELT, 3L 33.13 1733583D PLATE, Engine Mount 1734311 WELD, Auger Idler 1734313 V-BELT, 4L 37.00 Auger 1917356 LOCKWASHER, Spring 5/16 725367...
- Page 14 Engine & Frame Group Manual No. 7006187 TWO STAGE INTERMEDIATE FRAME TP 400-5297-IR-IS-N 2008 MODELS...
- Page 15 Engine & Frame Group Item Part No Description *ENGINE, 9.0TP B&S Mod. #12D1160120-E1 1929477 SCREW, Hex Washer Head Taptite 1724064 CORD, Electric Extension 10FT 2825094 TIE, Self Locking 1922755 WASHER, 3/8 1924940 WASHER, 3/8 Footnotes: Note: * See your local Briggs & Stratton distributor for parts & service. TWO STAGE INTERMEDIATE FRAME 2008 MODELS Note...
-
Page 16: Traction Drive Group
Traction Drive Group Manual No. 7006187 TWO STAGE INTERMEDIATE FRAME TP 400-5297-IR-IS-N 2008 MODELS... - Page 17 Traction Drive Group Item Part No Description 1920397 NUT, Hex Lock Esna Light 1/4-20 1921959 CAPSCREW, Hex Head 1/4-20 x 5/8 G5 1922837 CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5 1923341 CAPSCREW, Hex Head 1/4-20 x 3/4 G5 1923358 NUT, Hex Centerlock 1/4-20 1924856 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 1928372...
-
Page 18: Wheels & Tires Group
Wheels & Tires Group Manual No. 7006187 TWO STAGE INTERMEDIATE FRAME TP 400-5297-IR-IS-N 2008 MODELS... - Page 19 Wheels & Tires Group Item Part No Description 1679697 PIN, Klik 1734045 WHEEL& TIRE ASSEMBLY, 13 x 5 1657528 RETAINING RING, Extension, #75 3/4 Self Lock 725394 WASHER, Flat 1734997 WHEEL 3.25 Wide 6.00 Diameter 1734998 TIRE, 13 x 6.00 Snow Hog 2172353 VALVE STEM &...
-
Page 20: Decals Group
Decals Group Manual No. 7006187 TWO STAGE INTERMEDIATE FRAME TP 400-5297-IR-IS-N 2008 MODELS... - Page 21 DECAL, Belt Stretch and Adjustment 728183 DECAL, Over Adjust of Friction Disc *STICKER, Serial w/Bar Code 1735121 DECAL, Snapper 924IE 1735122 DECAL, Snapper 924IR 1734584 DECAL, Snapper 924I 1720454 DECAL, Touch Up Paint 1734591 DECAL, Dash 1734499 DECAL, Dash 1735229 DECAL, Speed Control...
- Page 24 Parts Manual for TWO STAGE INTERMEDIATE FRAME 24" SNOW THROWERS 2008 MODELS IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs &...
