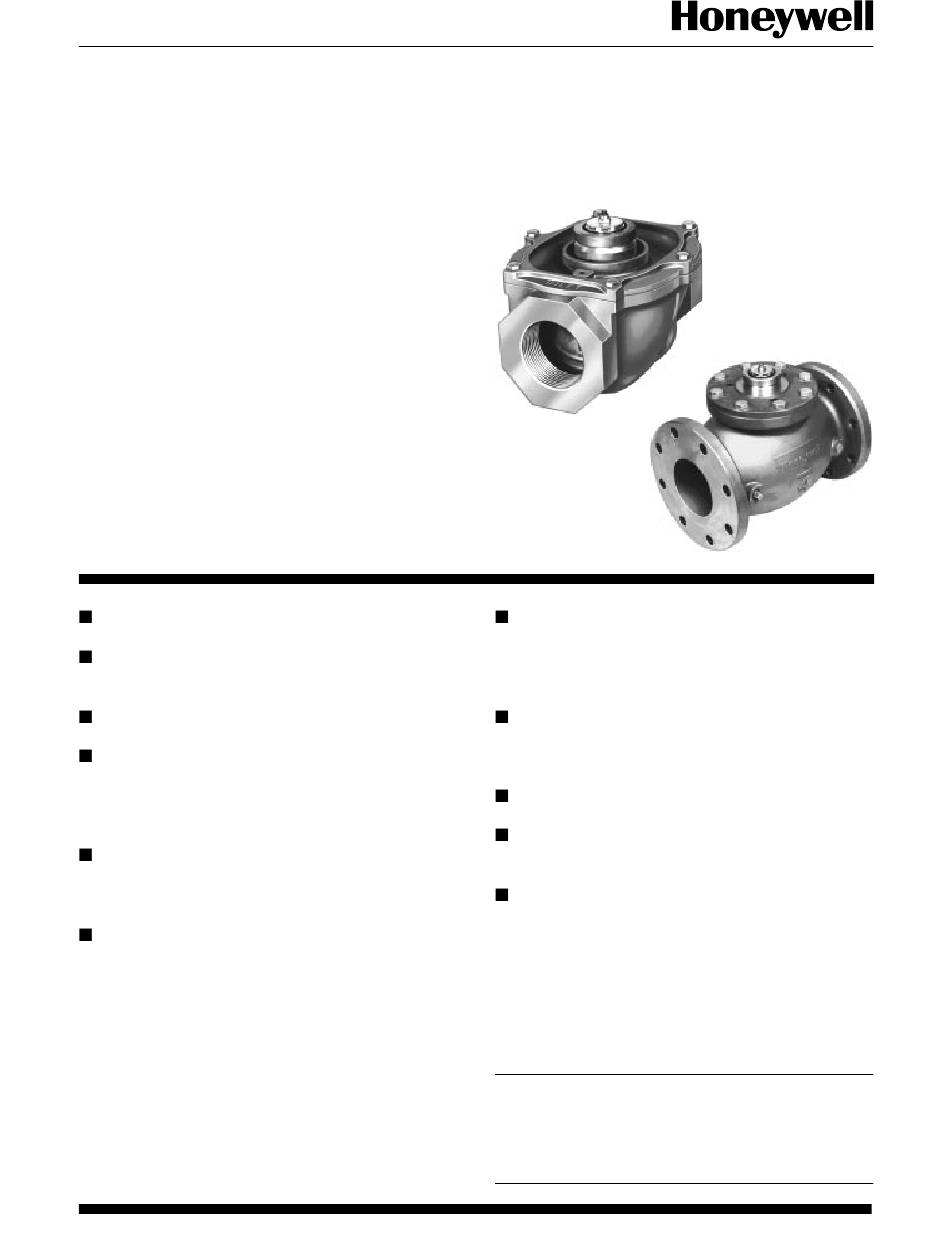

The V5055 Gas Valves are used with the V4055,
V4062, and V9055 Fluid Power Actuators to con-
trol gas flow to commercial and industrial burners.
Used with natural or liquefied petroleum (LP) gases.
V5055 normally closed valves are rated for final
shutoff service (safety shutoff).
V5055A,C,D,E Valves are for On-Off service.
V5055B Valve has a characterized guide and in
combination with the V4055, V4062, and V9055
Fluid Power Actuators, provides slow-opening, hi-
lo-off, and modulating functions respectively.
V5055C,E Valves have a double seal and are used
with V4055D,E Actuators to provide proof-of-clo-
sure switch and valve seal overtravel interlock.
V5055D,E Valves are for high pressure applications
(see Table 1).
Industrial Gas Valves
Seven valve sizes from 3/4 to 3 inches have NPT
threaded connections. Models are available with
BSP-PL threads. V5055A,B,C Valves are available
in a 4 inch size and have flange connections.
Most models have 1/4 inch upstream and down-
stream top and plug. BSP-PL thread models have
1/4 inch upstream tap and plug.
Valve body rating of 75 psi (517.1 kPa).
Yellow SHUT indicator attached to the valve stem
provides an indication of the valve closed position.
Unpainted, die-cast aluminum body.
CONTENTS
Specifications ................................................. 2
Ordering Information ..................................... 2
Installation ..................................................... 6
Operation and Checkout ................................ 8
Service Information ........................................ 9
F. P. • Rev. 11-94 • ©Honeywell Inc. 1994 • Form Number 60-2307-10
