Summary of Contents for REED R6030

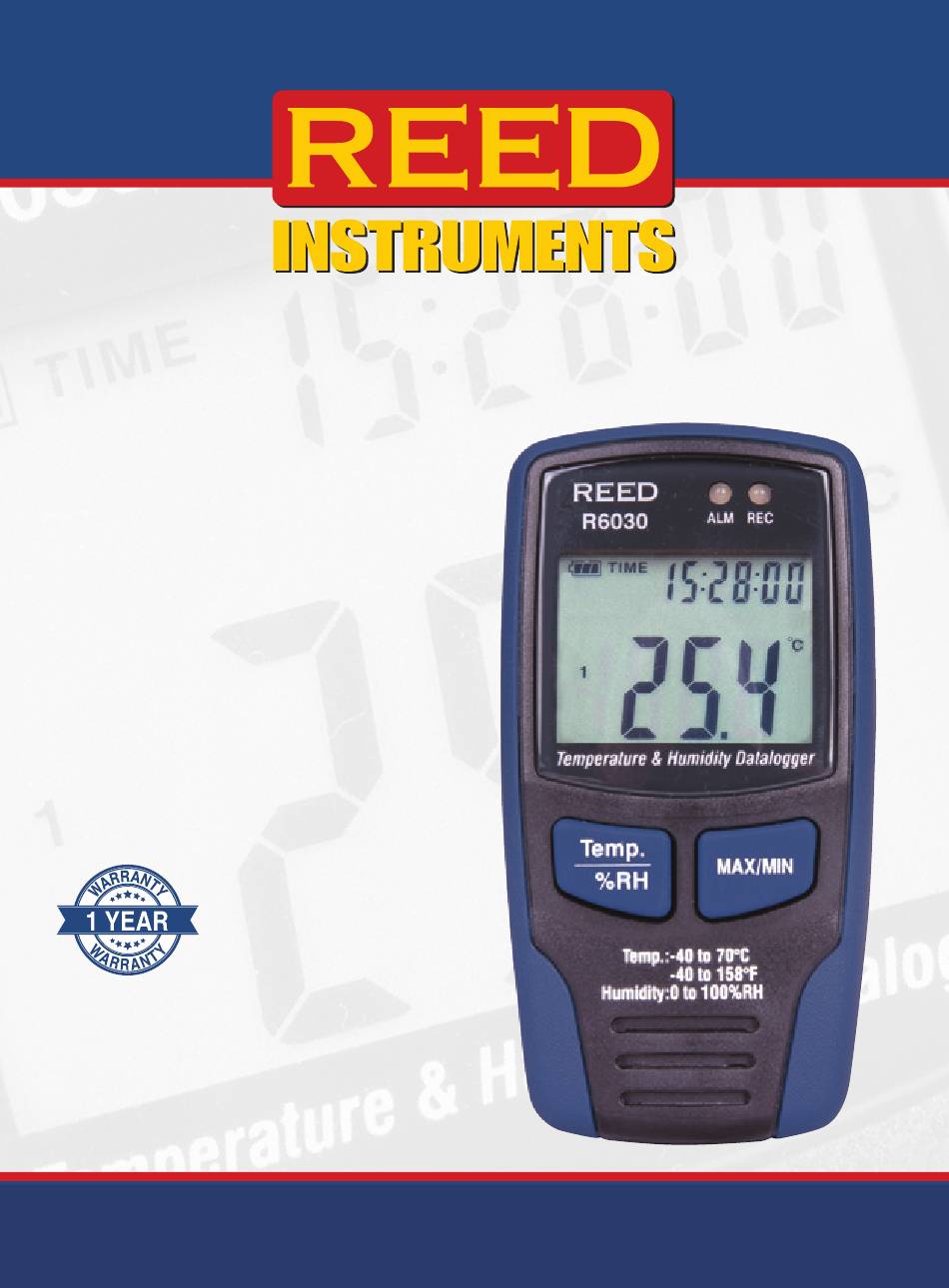

- Page 1 R6030 Temperature & Humidity Datalogger Instruction Manual REED-Direct.ca info@REED-Direct.ca 1.800.561.8187...
-
Page 2: Table Of Contents
Product Disposal and Recycling .............. 10 Product Support ..................11 Introduction Thank you for purchasing your REED R6030 Temperature & Humidity Datalogger. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your data logger will provide years of reliable service. -
Page 3: Product Quality
This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. If a certificate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply. Safety Never attempt to repair or modify your instrument. -
Page 4: Specifications
General Specifications Display: Dual Display, LCD Min: Max: Settable Alarms: Yes (temp. and RH) Sampling Rate: Yes (2 secs to 24 hours) Internal Memory: 32k readings (16,000 temp. and 16,000 humidity) Low Battery Indicator: Power Supply: 3.6V battery PC Connectivity: Yes (USB) Software: Included Product Certifications: Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 0 to 100% Dimensions: 3.7 x 1.9 x 1.3" (94 x 48 x 33mm) Weight: 4.1 oz (115g) REED-Direct.ca info@REED-Direct.ca 1.800.561.8187... -
Page 5: Instrument Description
Instrument Description R6030 Temperature & Humidity Datalogger Temp.: -40 to 70°C -40 to 158°F Humidity: 0 to 100%RH 5. MAX/MIN Value Button 1. Data Logging LED 6. Temperature & 2. Alarm LED Humidity Sensors 3. LCD Display 7. USB Port (Bottom) 4. Temperature & Humidity Toggle Button REED-Direct.ca info@REED-Direct.ca... -
Page 6: Display Description
3. Record Mode Active 4. Date & Time (10 sec rotation) Supplemental Display Notes 1. Press the MAX/MIN button to view the recorded Max and Min values with the time they were recorded. The LCD will return to real-time display if no button is pressed for 40 seconds. 2. The Time and Date display will automatically toggle every 10 seconds. 3. If –LO- is displayed, the temperature and humidity sensors need attention. REED-Direct.ca info@REED-Direct.ca 1.800.561.8187... -
Page 7: Operating Instructions
If your computer does not have a CD drive please visit www.reedinstruments.com/software to download the latest R6030 software. If you are having trouble connecting to the R6030 it may be a USB driver issue. Please note USB drivers are supplied on the included CD and may need to be installed separately. -
Page 8: Supplemental Operation Notes
The R6030 will automatically begin recording once setup is complete and the datalogger is removed from the PC. The R6030 needs to be reset from the software in order to start a new data logging session. Please note the time & date on the R6030 must be updated from the software. -
Page 9: Setting The Combination Lock
I cannot install my software on my work computer, do you know why? Please note that you will require administrative rights to install and run the R6030 software. In order to install and run the software you will have to contact your IT department/personnel. -
Page 10: Product Care
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 11: Product Support
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 12 TesT & MeasuRe wITH ConfIDenCe CHeCk ouT ouR laTesT PRoDuCTs! REED-Direct.ca info@REED-Direct.ca 1.800.561.8187...
