REED SD-6020 Instruction Manual

Force gauge datalogger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model
Force Gauge Datalogger
Instruction
Manual
reedinstruments
www
SD-6020
Only if you REALLY need them:
Rich Black -
20/20/20/100
com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD-6020 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REED SD-6020

Summary of Contents for REED SD-6020

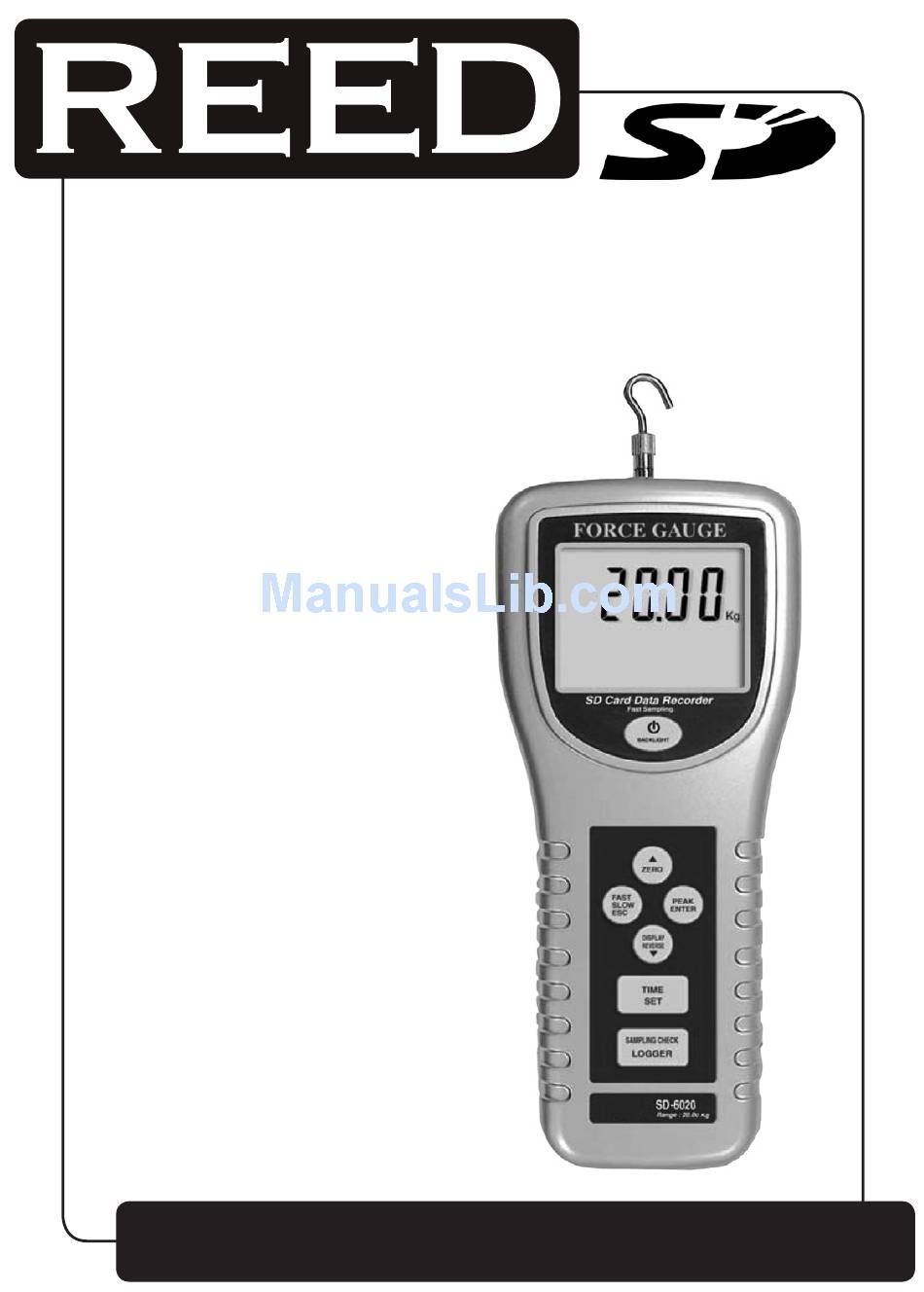

  • Page 1 Rich Black - 20/20/20/100 SD-6020 Model Force Gauge Datalogger Only if you REALLY need them: Instruction Manual reedinstruments...

  • Page 2: Table Of Contents

    Table of Contents Features .................... 3 Specifications ................3-4 Instrument Description ..............5 Operating Instructions ..............6-10 Alarm Beeper ................. 6 Peak Hold Measurement ..............6 Backlight ON/OFF ................7 Datalogger ..................7 Auto Datalogger ................7-8 Manual Datalogger ................. 8 Peak Hold Datalogger ..............8-9 Checking the Time .................

  • Page 3: Features

    Features • Data record in Normal Mode or Peak Hold Mode • Sampling time: Normal Mode: 1sec - 8h; Peak Hold: 10ms - 500ms • Memory capacity: Normal Mode: 1GB - 16 GB; Peak Hold: 1000 data no. (max) • Display units in Kg, lb, Newton •...
  • Page 4 Accessories, or e-mail us at info@reedinstruments.com Blue - 100/80/30/5 4 Blue Yellow - 0/27/100/0 3 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 5 Red Yellow - 0/27/100/0 3 Yellow REED products, contact REED Instruments at info@reedinstruments.com...

  • Page 5: Instrument Description

    Instrument Description 1. Sensor 2. Display 3. Power & Backlight Button 4. Up & Zero Button 5. Fast, Slow, & ESC Button 6. Peak & Enter Button 7. Display Reverse & Down Button 8. Time & Set Button 9. Logger & Sampling Check Button 10.

  • Page 6: Operating Instructions

    Operating Instructions When measuring Compression, the meter will show a "-" symbol. While measuring, be sure to have the Sensor aligned with the object being mea- sured. Do not measure on an angle, as the Sensor may be damaged and the readings will not be accurate.

  • Page 7: Backlight On/Off

    Backlight ON/OFF After powering the meter ON, the LCD Backlight will turn on automati- cally. While taking measurements, press the Backlight Button and the LCD Backlight will turn off. Press the Backlight Button once again to turn the LCD Backlight back ON. Datalogger Preparation Before Executing the Datalogger Function: 1) Insert the optional SD card into the SD card socket.

  • Page 8: Manual Datalogger

    3) Stop Datalogging; while the Datalogger function is paused, press the REC Button for 2 seconds. The "REC" symbol will disappear indicating the Datalogging function has stopped. Manual Datalogger (Set sampling time = 0 seconds) 1) Set sampling time is to 0 second; Press the REC Button, and the "REC"...

  • Page 9: Checking The Time

    6) When the peak value is obtained, the indicator "DATA RECORD" will disappear, while the "PEAK" indicator and the Peak Value will remain. The bottom of the Display will show the data record num- ber and count down to zero, while saving the data to the SD card. Checking the Time During normal functions (not Datalogging), press the Time Check Button and the lower LCD display will show the Year, Month/Date, Hour/Minute.

  • Page 10: Advanced Settings

    3) Open "Microsoft EXCEL". Download the EXCEL files from the SD Card to the computer by opening up the SD folder and selecting the desired EXCEL files, and drag-and-drop them onto your Com- puter. Open the files with EXCEL (File – Open). 4) The EXCEL file will have the following column headers in this order: Place (Position Number), Date (Year/Month/Day), Time (in 24h clock), Value, and Unit.

  • Page 11: Set Clock Time

    Set Clock Time 1) When the lower display shows "dAtE", press the Enter Button. Use the Up and Down Buttons to adjust the Year. After the desired value is set, press the Enter Button to adjust the Month, Date, Hour, Minute, and Second values.

  • Page 12: Set Beeper Sound On/Off

    Set Beeper Sound ON/OFF 1) When the lower display shows "bEEP", use the Up or Down But- tons to select "yES" (Beeper Sound is ON) or "no" (Beeper Sound is OFF). 2) After selecting "yES" or "no", press the Enter Button to save the setting as the default.

  • Page 13: Pc Serial Interface

    PC Serial Interface The instrument features an PC output via 3.5 mm terminal. The connector output is a 16 digit data stream which can be utilized to the user’s specific application. An USB RS232 lead with the following connection will be required to link the instrument with the PC serial input.

  • Page 14: System Reset

    4 Blue Yellow - 0/27/100/0 3 Yellow Red - 10/100/100/5 5 Red For service on this or any other REED product or information on other Yellow - 0/27/100/0 3 Yellow REED products, contact REED Instruments at info@reedinstruments.com Blue - 100/80/30/5...
  • Page 15 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 4 Blue Yellow - 0/27/100/0 3 Yellow ________________________________________________ Red - 10/100/100/5 5 Red Yellow - 0/27/100/0 3 Yellow Blue - 100/80/30/5 4 Blue reedinstruments Rich Black -...
  • Page 16 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 4 Blue Yellow - 0/27/100/0 3 Yellow ________________________________________________ Red - 10/100/100/5 5 Red Yellow - 0/27/100/0 3 Yellow Blue - 100/80/30/5 4 Blue reedinstruments Rich Black -...
