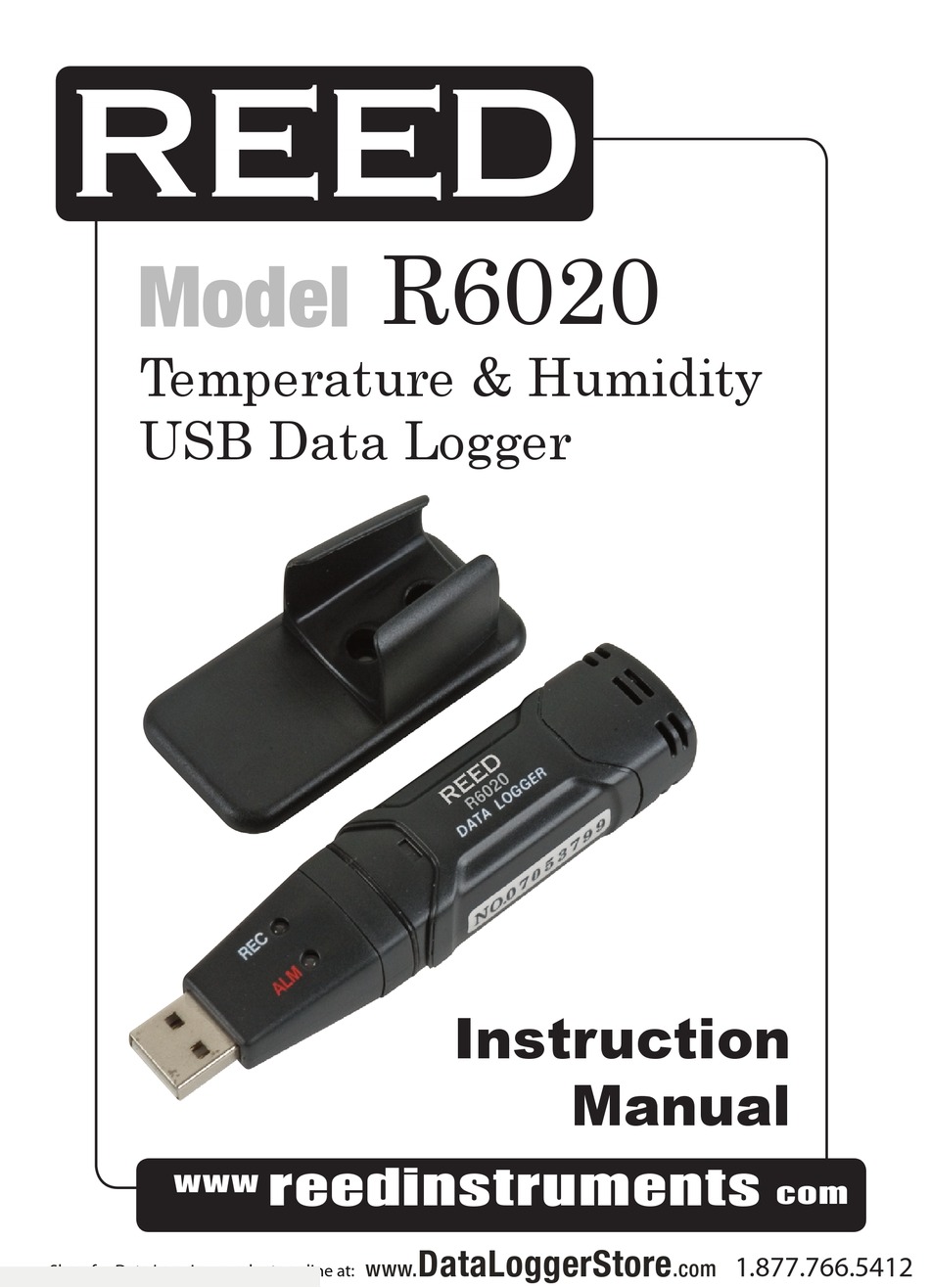

- Page 1 Black R6020 Model Temperature & Humidity Pantone 534 Blue - 100/80/30/5 Pantone 485 Red - 10/100/100/5 USB Data Logger Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments DataLoggerStore 1.877.766.5412 www. .com Shop for Data Logging products online at:...
-
Page 2: Instrument Description

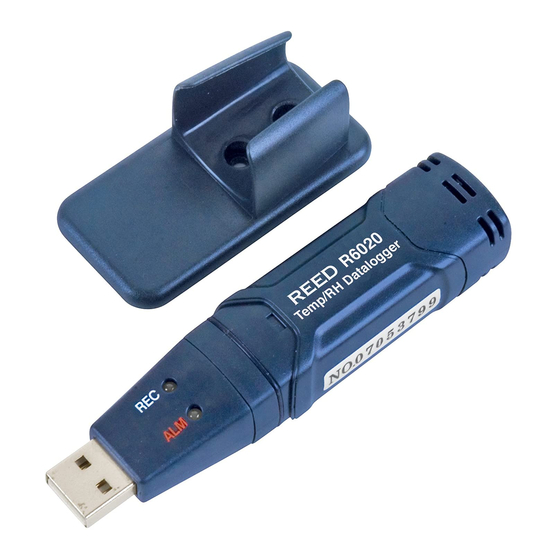

Features • Memory for 32,000 readings (16,000 temperature and 16,000 humidity readings) • Dew point indication • Multi-mode to start logging • Selectable measuring cycle: 2s, 5s, 10s, 30s, 1m, 5m, 10m, 30m, 1hr, 2hr, 3hr, 6hr, 12hr, 24hr • User-selectable alarm thresholds for both temperature and humidity • Status indication via red/yellow/green LEDs • USB interface for set-up and data download • Analysis software • Long battery life Instrument Description Instrument Description 1. Protective cover 2. USB connector 3. Start button 4. RH & temperature sensors 5. Alarm LED (red/yellow) 6. Record LED (green) 7. Mounting clip Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red... - Page 3 LED Status Guide LEDs InDIcatIon actIon Both LED lights OFF: Start logging, replace Logging not active OR battery and download Low Battery the data Single green flash every To start, hold the start 10s*: Logging, no alarm button until Green and condition** Double green Yellow LEDs flash flash every 10s*: Delayed start Single red flash every 10s*: Logging will stop Logging, low alarm for automatically. No data RH*** Double red flash will be lost. Replace every 10s*: Logging, high battery and download alarm for RH*** Single red data. flash every 60s: Low battery**** Single yellow flash every Download data 10s*: Logging, low alarm for TEMP*** Double yellow flash every 10s*: Logging, Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow...
- Page 4 • To save power, the logger’s LED flashing-cycle can be changed to 20s or 30s via software. • To save power, alarm LEDs for temperature and humidity can be dis- abled via software. • When both temperature and relative humidity readings exceed alarm level synchronously, LED status indication alternate every cycle. For example: If there is only one alarm, the REC LED blinks for one cycle and alarm LED will blink for next cycle. If there are two alarms, REC LED will not blink. First alarm will blink for first cycle and the next alarm will blink for next cycle. • When the battery is low, all recording operations will be disabled automatically. NOTE: Logging automatically stops when the battery weakens (logged data will be retained). Software is required to restart recording and to download logged data. • To use the delay function. Run the datalogger graph software, click on the computer icon “DataLogger Setup” or select from the File drop down menu. The Setup window will appear, and you will see two op- tions: Manual and Instant. If you select the Manual option, after you click the Setup button, the logger won't start logging immediately until you press the Yellow start button. • When the logger is not in recording mode, and memory is not full, press and hold the start button for 3 seconds to begin recording. When the logger is in recording mode, and memory is full, press and hold the start button for 6 seconds to stop recording and delete the memory (a flashing Red LED will confirm memory has been erased. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red...
-
Page 5: Specifications
Specifications Logging Rate: Selectable sampling interval from 2 seconds up to 24 hours Operating Temp: -35 to 80°C or -31 to 176°F Battery Type: 3.6V lithium (1/2AA) (SAFT LS14250, Tadiran TL-5101 or equivalent) Battery Life: 1 year (typically) depending on logging rate, ambient temperature and use of alarm LEDs Dimensions/Weight: 101 x 25 x 23 mm (4 x 1 x .9”)/172g (6oz) Function Range accuracy Relative 0 to 20% & 80 to 100% ±5.0% Humidity 20 to 40% & 60 to 80% ±3.5% 40 to 60% ±3.0% Temperature -40 to -10°C & +40 to +70°C ±2°C 10 to +40°C ±1°C -40 to +14°F & 104 to 158°F ±3.6°F +14 to +104°F ±1.8°F Dew point -40 to 70°C (-40 to 158°F) ±2.0°C (±4.0°F) Temperature Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow... -
Page 6: Battery Replacement
Battery Replacement Only use 3.6V lithium batteries. Before replacing the battery, remove the data logger from the PC. Follow steps 1 through 4 below: 1. Use a pointed object (eg. a small screwdriver) to open the casing. Lever the casing off in the direction of the arrow. 2. Pull the datalogger from the casing. 3. Replace/insert the battery into the battery compartment observing the right polarity. The two displays briefly light up for control purposes (alternating green/yellow/green). 4. Slide the datalogger back into the casing until it snaps into place. Now the datalogger is ready for programming. notE: Leaving the model plugged into the USB port for longer than necessary will cause some loss of the battery capacity. WaRnInG: Handle lithium batteries carefully, observe warnings on battery casing. Dispose of in accordance with local regulations. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue reedinstruments... - Page 7 notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow ________________________________________________ Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
