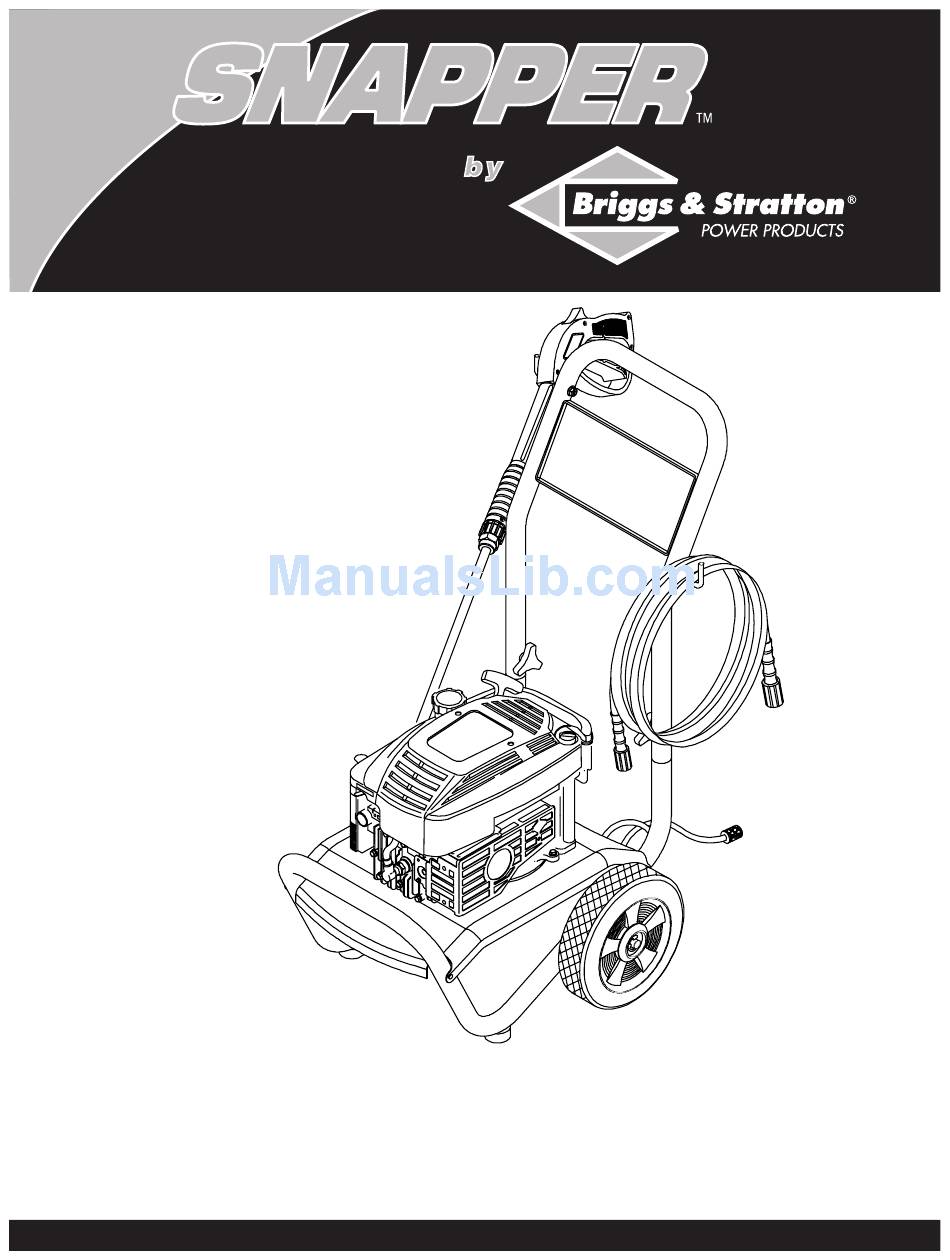

2300PSI
Pressure Washer
Owner's Manual
Questions? Help is just a moment away!
Helpline - 1-800-317-7833 M-F 8-5 CT
This Snapper™ product is distributed under license to Briggs & Stratton Power Products.
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON,WISCONSIN, U.S.A.
Model No. 1807-0 (2300 PSI Pressure Washer) Manual No. 191333GS Revision 0 (12/18/2002)
Advertisement
Table of Contents
Related Manuals for Snapper 1807-0
Summary of Contents for Snapper 1807-0
-
Page 1: Pressure Washer
Helpline - 1-800-317-7833 M-F 8-5 CT This Snapper™ product is distributed under license to Briggs & Stratton Power Products. BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC JEFFERSON,WISCONSIN, U.S.A. Model No. 1807-0 (2300 PSI Pressure Washer) Manual No. 191333GS Revision 0 (12/18/2002) -
Page 2: Table Of Contents
Safety Rules........2-3 Know Your Pressure Washer ..... . 4 Assembly. - Page 3 Fire or explosion can cause severe burns or death. WHEN ADDING FUEL • Turn pressure washer OFF and let it cool at least 2 minutes before removing gas cap. • Fill fuel tank outdoors. • DO NOT overfill tank. Allow space for fuel expansion.
-
Page 4: Know Your Pressure Washer
KNOW YOUR PRESSURE WASHER Read this owner’s manual and safety rules before operating your pressure washer. Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. -
Page 5: Carton Contents
WASHER FOR USE If you have any problems with the assembly of your pressure washer or if parts are missing or damaged, call the pressure washer helpline at 1-800-317-7833. If calling for assistance, please have the model, revision, and serial number from the data tag available. -
Page 6: Add Fuel
• Place pressure washer on a level surface. • Refer to engine owners manual to add recommended oil to engine. NOTE: Check Oil Often During Engine Break–in. Snapper 2300 PSI Pressure Washer Add Fuel WARNING! fill fuel tank when engine is running or hot.Allow unit Spray Gun to cool for two minutes before refueling. -
Page 7: Assembly
IMPORTANT: DO NOT siphon standing water for the water supply. Use ONLY cold water (less than 100°F). Snapper 2300 PSI Pressure Washer • Connect the garden hose (not to exceed 50 feet in length) to the water inlet.Tighten by hand (Figure 5). -
Page 8: How To Start Your Pressure Washer
To start your pressure washer for the first time, follow these instructions step-by-step.This starting information also applies if you have let the pressure washer sit idle for at least a day. • Place the pressure washer near an outside water source capable of supplying water at a flow rate greater than 3.0 gallons per minute and no less than 20 PSI at the... -
Page 9: How To Use The Adjustable Nozzle
• Point the nozzle down towards a firm surface and press the trigger to test the pattern (Figure 11). Figure 11 — Testing the Spray Pattern Snapper 2300 PSI Pressure Washer • Twisting the nozzle adjusts the spray pattern from a narrow pattern to a fan pattern (Figure 12). -
Page 10: Automatic Cool Down System
(prevents streaking). IMPORTANT: You must flush the chemical injection system after each use by placing the filter into a bucket of clean water, then run the pressure washer in low pressure for 1-2 minutes. Pressure Washer Rinsing WARNING! -
Page 11: Product Specifications
• Check detergent siphoning tube and filter for damage. • Check spray gun and adjustable nozzle extension assembly for leaks. • Rinse out garden hose to flush out debris. Snapper 2300 PSI Pressure Washer PRESSURE WASHER MAINTENANCE Check and Clean Inlet Screen Examine the screen on the water inlet. -
Page 12: Cleaning Detergent Siphoning Tube
To remove contaminants from the pump, follow these steps: • Set up the pressure washer as described in “Preparing Pressure Washer For Use”. Connect the water supply and turn water on. • Remove the nozzle extension from the spray gun. -
Page 13: O-Ring Maintenance
NOTE: Purchase a premeasured bottle of pump oil, item number 190586GS, by contacting the nearest authorized service center. Snapper 2300 PSI Pressure Washer Change pump oil as follows: Drain engine oil and fuel from pressure washer. Use a 8mm allen wrench to remove the black pump oil cap between the high pressure outlet and garden hose inlet (Figure 17). -
Page 14: Storage
30 days, follow this procedure: Flush detergent siphoning tube by placing the filter into a pail of clean water while running pressure washer in low pressure mode (adjustable nozzle in the forward position). Flush for one to two minutes. -
Page 15: Troubleshooting
“bogs” when load is added. Out of gasoline. Pressure washer shuts down during operation. Snapper 2300 PSI Pressure Washer Nozzle in low pressure mode. Water inlet is blocked. Inadequate water supply. Inlet hose is kinked or leaking. Clogged inlet hose strainer. -
Page 16: Replacement Parts
KIT,Vibration Mount Items Not Illustrated: Part # Description 192333GS MANUAL, Owner’s 192548GS KIT, Decal BB3061BGS OIL, Engine Snapper 2300 PSI Pressure Washer Item Part # 10 21760GS 11 192309GS 12 192050GS 13 B3335HGS 14 192311GS 15 23139GS 16 189970GS 900 NSP... - Page 17 47 190580GS VALVE, Seat, Stainless 62 190581GS 68 190582GS BALL, Stainless Steel 69 190584GS O-RING 76 21783GS THERMO RELIEF 77 190586GS OIL BOTTLE Snapper 2300 PSI Pressure Washer Item Part # 190709GS 190632GS 190634GS 190710GS 190591GS 190592GS 190593GS 190594GS 189971GS...
-
Page 18: Notes
Snapper 2300 PSI Pressure Washer NOTES... - Page 19 Snapper 2300 PSI Pressure Washer NOTES...
- Page 20 SNAPPER™ OWNER WARRANTY POLICY Effective January 1, 2003 "This Snapper™ product is distributed under license to Briggs & Stratton Power Products. Briggs & Stratton Power Products will repair or replace, free of charge, any part, or parts of the equipment** that are defective in material or workmanship or both.
