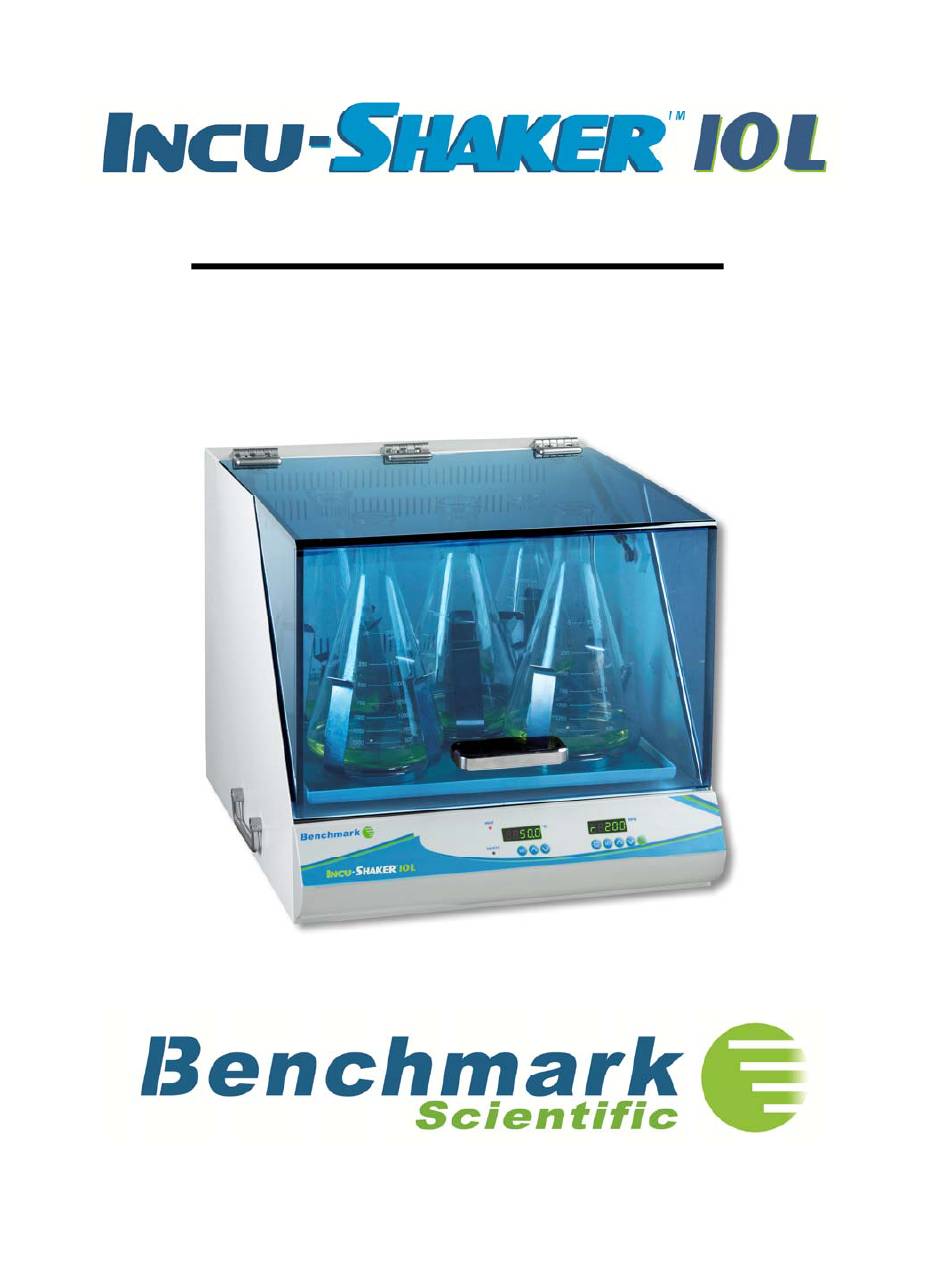

  • Page 1 Operations Manual Items: H1010 and H1012 (-E)
  • Page 2 Index: I. General Information II-1. Introduction II-2. Installation II-3. Specifications II-4. Features III-1, Operation III-2. Platform Installation III-3. Error Messages III-4. Maintenance IV-1. Service and Contact...

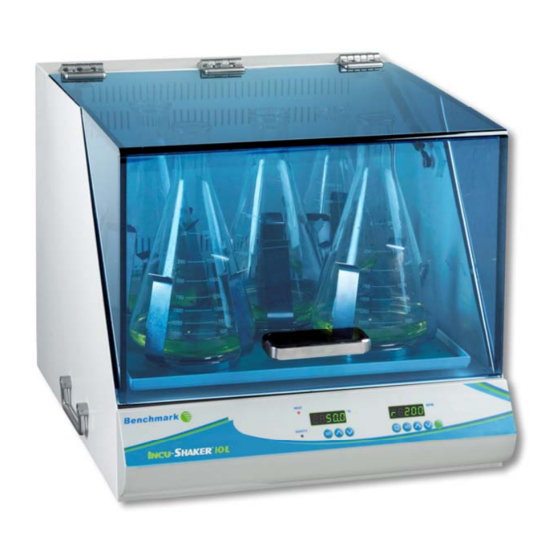

  • Page 3 II-1. Introduction The Incu-Shaker 10L Shaking Incubator series is designed for many applications used in general research laboratories. The Microprocessor’s constant monitoring system ensures accurate temperature and shaking speed.
  • Page 4 II-2. Installation - Choose a location that is free from rapidly changing temperature conditions (away from a heating or cooling vent). - To assure proper ventilation, allow a minimum of 2 inches (5 Cm) of the clearance between the rear and side of the unit and the adjacent wall.
  • Page 5 II-3. Specification H1010 1) Dimension (Exterior) : 51(W) X 65(D) X 47(H) cm / 20(W) x 26(D) x 19(H) in (Internal) : 49.5(W) X 49.5(D) X 28(H) cm / 19.5(W) x 19.5(D) x 11 (H) in. (Platform): 23.5(W) x 29.2(D) cm / 9.5(W) x 11.5(D) in 2) Temperature range : Ambient +5°C to 60°...
  • Page 6 H1012 1) Dimension (Exterior) : 51(W) X 79(D) X 56(H) cm / 20(W) x 31(D) x 22(H) in (Internal) : 49.5(W) X 49.5(D) X 28(H) cm / 19.5(W) x 19.5(D) x 11 (H) in. (Platform): 23.5(W) x 29.2(D) cm / 9.5(W) x 11.5(D) in 2) Temperature range : Ambient -15°C to 60°...
  • Page 7 II-4. Features 1) Constant Monitoring System (CMS) ensures precise control over speed and temperature 2) High Capacity, up to 5x2L 3) Acryl lid allows internal viewing without disturbance. 4) Brushless DC motor and beltless drive system minimizes noise and vibration. 5) Digital control panel displays temperature, speed, time .
  • Page 8 III-1. Operation 1) Place the power switch (located on the right side of the machine) in the "ON" position (the display will illuminate). 2) To set the desired temperature, press the "SET" key located underneath the temperature display. The set temperature is displayed and will blink continuously.
  • Page 9 ** Speed should never be set below 30 rpm. III-2. Platform Installation Microplate Platform and Spring Platform Installation: The Incu-Shaker 10L includes a flat non-stick platform for low speed operation with many common vessels, including trays and dishes. For installation of any of the optional platform the user...
  • Page 10 3.) Screw in the four plastic, platform screws tightly by hand. MAGic Clamp Platform Installation: If you have ordered the H1010-MR MAGic clamp platform as an accessory with your Incu-Shaker 10L, platform may arrive installed on the shaker. If not, please follow the steps below for installation instructions.
  • Page 11 III-3. Error Messages 1) This message “rErrL” represents a low speed speed error - Check the platform to ensure that nothing is obstructing it’s movement - Check the set speed to make sure that it is within the acceptable range (30 to 300rpm) Solution : Use your hand to move platform.
  • Page 12 2) This message “rErrH” represents a high speed error. - Removal of load or partial load. Solution : If a vessel has been removed, replace the vessel or restart the machine. 3) This message, “Error” represents an electrical error. - Machine has lost power during the run. Solution : Check that the power cord is properly installed and restart or check that the circuit has not been interrupted and restart.
  • Page 13 IV-4. Service and Contact Service on the Incu-Shaker should only be performed by qualified service personnel. To request service or technical support, please contact Benchmark Scientific or your local Benchmark representative.
