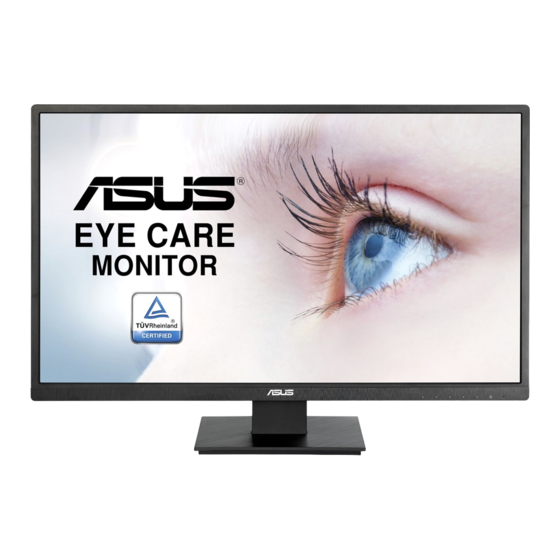

LCD Monitor
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Asus VA279 Series

Summary of Contents for Asus VA279 Series

  • Page 1 VA279 Series LCD Monitor User Guide...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Contents....................... iii Notices......................iv Safety.information..................v Care.&.Cleaning................... vi Takeback.Services..................vii Chapter.1:..Product.introduction 1.1. Welcome!..................1-1 1.2. Package.contents................1-1 1.3. Monitor.introduction..............1-2 1.3.1 Front view ............... 1-2 1.3.2 Back view ................ 1-3 Chapter.2:..Setup 2.1. Assembling.the.monitor.arm/base..........2-1 2.2.

  • Page 4: Notices

    Notices Federal.Communications.Commission.Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.

  • Page 5: Safety.information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.

  • Page 6: Care.&.Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.

  • Page 7: Takeback.services

    These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
  • Page 8 viii...

  • Page 9: Welcome

    Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...

  • Page 10: Monitor.introduction

    Monitor introduction 1.3.1. Front.view VA279HAE VA279HAEL Menu Menu Close Close Input Select Input Select Brightness Brightness Blue Light Filter Blue Light Filter Power button/power indicator • Turns the monitor on/off. • The color definition of the power indicator is as the below table. Status Description White...

  • Page 11: Back View

    To change the hotkey function, go to the Shortcut > Shortcut 2 menu. 1.3.2. Back.view VA279HAE VA279HAEL AC-IN.port. This port connects the power cord. HDMI.port. This port is for connection with an HDMI compatible device. VGA.port..This 15-pin port is for PC VGA connection. Kensington.lock.slot. Control.buttons. ASUS VA279 Series LCD Monitor...
  • Page 12 Chapter 1: Product introduction...

  • Page 13: Assembling.the.monitor.arm/Base

    Attach the base into the arm, making sure the tab on the arm fits into the groove on the base. Fix the base to the arm by fastening the bundled screw. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. VA279HAE VA279HAEL ASUS VA279 Series LCD Monitor...

  • Page 14: Detaching.the.arm/Base.(For.vesa.wall.mount)

    Detaching the arm/base (for VESA wall mount) The detachable arm/base of this monitor is specially designed for VESA wall mount. To detach the arm/base: Have the front of the monitor face down on a table. Remove the rubbers in the four screw holes. (Figure 1) Remove the base (Figure 2).

  • Page 15: Adjusting.the.monitor

    VA279HAE -5°~+20° (Swivel) (Tilt) (Height adjustment) VA279HAEL -5°~+35° 130mm 90° 90° 0° Pivoting.the.monitor.(VA279HAEL) Lift the monitor to the highest position. Tilt the monitor to its maximum angle. Pivot the monitor to the angle you need. ASUS VA279 Series LCD Monitor...

  • Page 16: Connecting.the.cables

    -5°~+35° 0° 130mm 90° It is normal that the monitor slightly shakes while you adjust the viewing angle. Connecting the cables Connect the cables as the following instructions: VA279HAE VA279HAEL •. To.connect.the.power.cord: Connect one end of the power cord securely to the monitor’s AC input port, the other end to a power outlet.

  • Page 17: Turning.on.the.monitor

    Input Select item in the OSD menu. Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in white to show that the monitor is ON. ASUS VA279 Series LCD Monitor...
  • Page 18 Chapter 2: Setup...

  • Page 19: Osd.(On-Screen.display).Menu

    Highlight the desired sub-menu function and press to activate it. Press to change the settings of the selected function. To exit and save the OSD menu, press repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-4. ASUS VA279 Series LCD Monitor...

  • Page 20: Osd Function Introduction

    This function contains 8 sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ASUS VA279 Splendid Standard Mode HDMI 1920 x 1080 @ 60Hz...
  • Page 21 Repeating look up and down (2) Slowly roll your eyes (3) Move your eyes diagonal. • High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light Filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome). ASUS VA279 Series LCD Monitor...
  • Page 22 4:3 is only available when input source is in 4:3 format. OverScan is only available for the HDMI input source. •. VividPixel: Enhances the outline of the displayed picture and generates high-quality images on screen. •. ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. Chapter 3: OSD (On-Screen Display) menu...
  • Page 23 ECO Mo d e O SD Set u p La n g u a ge Key L o ck Mo re •. Splendid.Demo.Mode: Splits the screen into two for Splendid modes comparison. (Scenery mode only) ASUS VA279 Series LCD Monitor...
  • Page 24 •. GamePlus: The GamePlus Function provides a toolkit and creates a better gaming environment for users when playing different types of games. In addition, Crosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games. To active this function: Select ON to enter the GamePlus main menu.
  • Page 25 Key.Lock: To disable all function keys. Press the second button from the right over five seconds to cancel the key lock function. •. Information: Shows the monitor information. •. Power.Indicator: Turns the power LED indicator on/off. •. Power.Key.Lock: Enables or disables the power key. ASUS VA279 Series LCD Monitor...
  • Page 26 •. All.Reset: “Yes” allows you to restore the default settings. Shortcut Defines the functions for Shortcut 1 and 2 buttons. ASUS VA279 Shortcut Standard Mode HDMI 1920 x 1080 @ 60Hz Sh o rt cu t 1 Sh o rt cu t 2 •.

  • Page 27: Specifications.summary

    Swivel VA279HAE: No VA279HAEL: +90°~-90° Height.Adjustment VA279HAE: No VA279HAEL: 0~130 mm Kensington.lock AC.input.voltage AC: 100~240V Power.consumption Power On: < 40 W** (Typ.), Standby: < 0.5 W (Typ.), Power Off: 0.5 W Temperature.(Operating) 0˚C~40˚C Temperature.(Non-operating) -20˚C~+60˚C ASUS VA279 Series LCD Monitor...
  • Page 28 Dimension.(W.x.H.x.D) VA279HAE: 622.6 x 430.55 x 194.94 mm (with stand) 622.6 x 372.65 x 56.6 mm (without stand) 698 x 138 x 455 mm (package) VA279HAEL: 622.6 x 525.85 x 224.36 mm (with stand, highest) 622.6 x 395.85 x 224.36 mm (with stand, lowest) 622.6 x 372.65 x 56.6 mm (without stand) 710 x 203 x 458 mm (package) Weight.(Esti.)

  • Page 29: Outline.dimensions

    55.54 [2.19] 62.9 [2.48] 74.24 [2.92] 82.2 [3.24] 167.8 [6.6] 11.5 [0.45] 23 [0.91] 7.3 [0.29] 17.2 [0.68] 24.27 [0.96] 194.94 [7.67] Active area : 335.63 [13.21] 372.65 [14.67] 46.61 [1.84] 122.29 [4.81] 100 [3.94] ASUS VA279 Series LCD Monitor 3-11...
  • Page 30 139.9[5.5] 150.02[5.9] 216.6[8.5] 226.71[8.9] 226.34[8.9] 527.36[20.76] 167.8[6.61] 154.71[5.74] 11.5[0.45] 177.71[7.00] 23[0.91] 372.65[14.67] 130[5.12] 346.78[13.65] 401.81[15.82] 100[3.94] 3-12 Chapter 3: OSD (On-Screen Display) menu...

  • Page 31: Troubleshooting.(Faq)

    • Perform All Reset via OSD. • Adjust the R/G/B color settings or select the Color Temperature via OSD. Screen image is blurry or fuzzy • Adjust the Phase and Clock settings via OSD. ASUS VA279 Series LCD Monitor 3-13...

  • Page 32: Supported.operating.modes

    Supported operating modes Resolution Vertical.Frequency.(Hz) Horizontal.Frequency.(KHz) 640x350 70(N) 31.47(P) 640x480 59.94(N) 31.47(N) 640x480 66.66(N) 35.00(N) 640x480 72.82(N) 37.87(N) 640x480 75.00(N) 37.5(N) 720x400 70.08(P) 31.47(N) 800x600 56.25(P) 35.16(P) 800x600 60.32(P) 37.88(P) 800x600 72.12(P) 48.08(P) 800x600 75.00(P) 46.86(P) 832x624 74.55(P/N) 49.72(P/N) 1024x768 60.00(N) 48.36(N) 1024x768...
  • Page 33 480p-60Hz 720p60 1280 x 720 74.25 720p-60Hz 576p 720 x 576 31.25 576p-50Hz 720p50 1280 x 720 37.5 74.25 720p-50Hz 1080p60 1920 x 1080 67.5 148.5 1080p-60Hz 1080p50 1920 x 1080 56.25 148.5 1080p-50Hz ASUS VA279 Series LCD Monitor 3-15...
