Rider
Assembly
Seat & Safety Switch Assembly
1. Mount the seat (A, Figure 3) to the seat plate (B)
using four 5/16-18 nylock flange nuts (C) and tighten
securely.
2. Connect the seat switch wire harness (D) to the seat
switch.

Install Ground Speed Control Levers

1. Mount the ground speed control levers (D, Figure 4)
to the control lever base (E) using four 5/16-18 x 1"
bolts, lockwashers, and washers (A, B & C).
NOTE: Before operating the unit the ground speed
control levers and seat must be adjusted to fit the
operator. See SEAT ADJUSTMENTS and GROUND
SPEED CONTROL LEVER ADJUSTMENTS in the
Adjustments section.
8/2007
Simplicity / Snapper ZTR
B

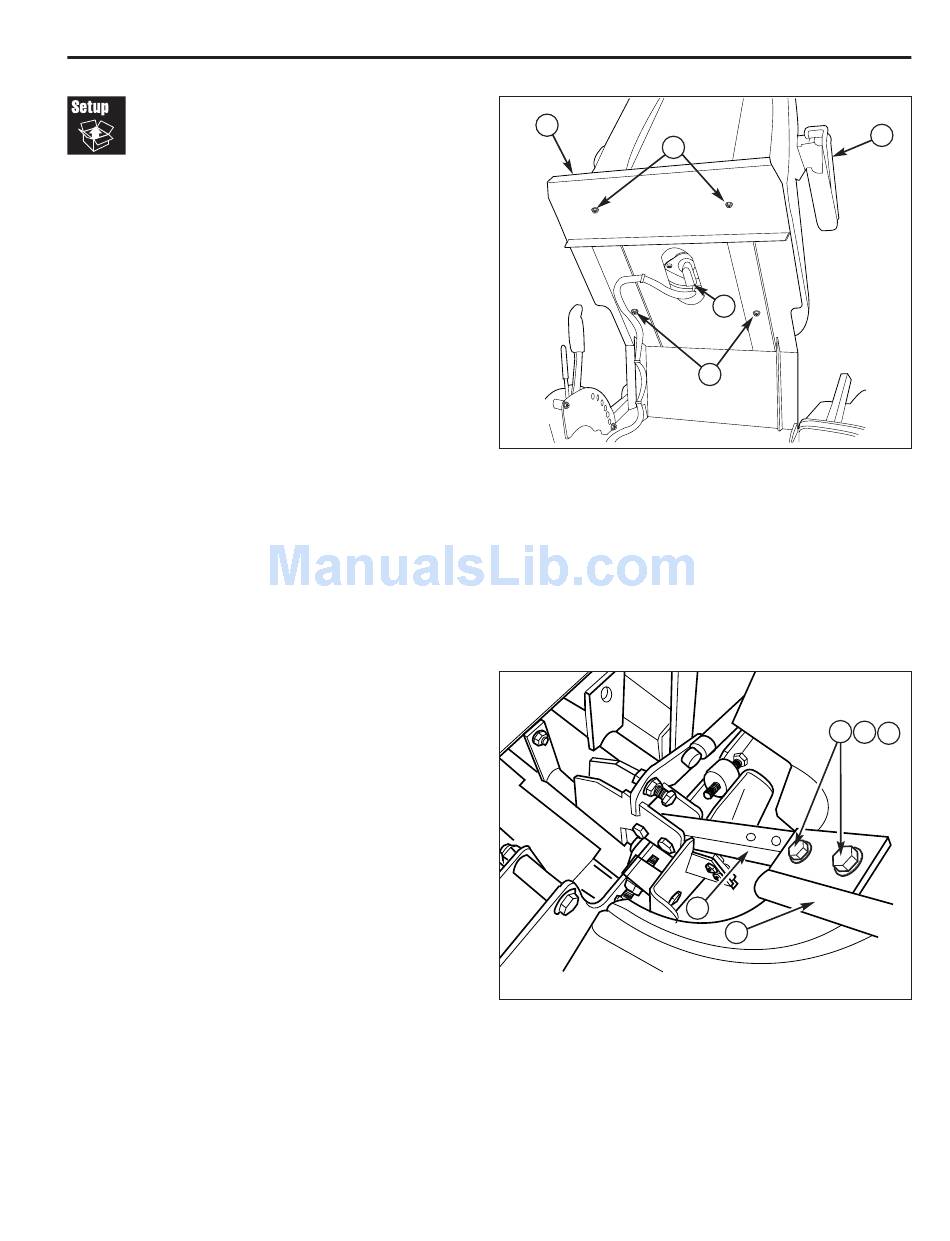

Figure 3. Seat Installation
A. Seat
B. Seat Plate
C. 5/16-18 Nylock Flange Nut (4)
D. Seat Switch Wire Harness
Figure 4. Install Control Levers
A. 5/16-18 x 1" Bolts
B. 5/16 Lockwashers
C. 5/16 Washers
D. Control Lever
E. Control Lever Base
5
C
D
C
A B C
E
D
TP 300-7337-01-CH-SMN
