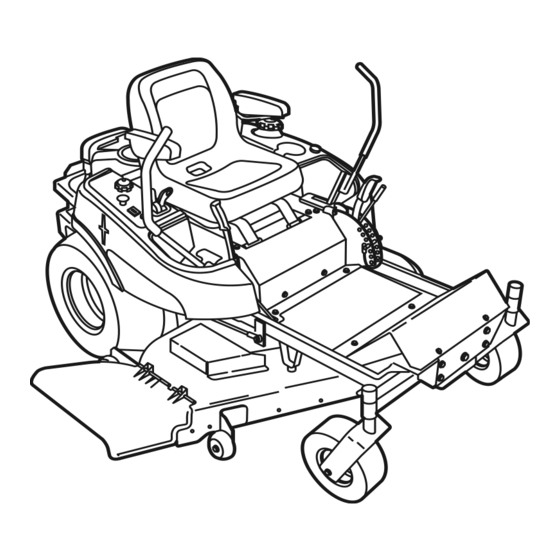

Snapper ZT19441KWV Safety Instructions & Operator's Manual

Fastcut hydro drive ztr series 1
Hide thumbs Also See for ZT19441KWV:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Safety Instructions & Operator's Manual for
DRIVE SYSTEM TYPE
MOWER ORIENTATION
ENGINE HP *
MOWER DECK SIZE
Z - Zero Turning - Hydro Drive
T - Twin Stick Control
18 - Engine Horse Power
19 - Engine Horse Power
Thank you for buying a SNAPPER Product! Before operating your machine, read this manual carefully and
pay particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on pages 2 - 4. Remember that all
power equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use
in accordance with the operating instructions and common sense!
NOTE: Specifications are correct at the time of printing and are subject to change without notice.
* Actual sustained equipment horsepower will likely be lower due to operating limitation and environmental factors.
COPYRIGHT © 2005
SNAPPER - A DIVISION OF SIMPLICITY MFG., INC.
ALL RIGHTS RESERVED
FastCut HYDRO DRIVE ZTR
MODEL NUMBER EXPLANATION
Z
T
20
POWER UNIT
20 - Engine Horse Power
44 - 44" Mower Width
50 - 50" Mower Width
50
1
B
1 - Series Designation
KH - Kohler Engine
KW - Kawasaki Engine
B - Briggs & Stratton Engine
McDonough, GA 30253 USA
MANUAL No. 5100269 (Rev. IR - 7/1/05)
SERIES 1
MODEL
ZT18441KHC
ZT19441KWV
ZT20501BV
V
ENGINE TYPE
ENGINE BRAND
SERIES DESIGNATION
C - Dual Cam OHV
V - Overhead Valve
