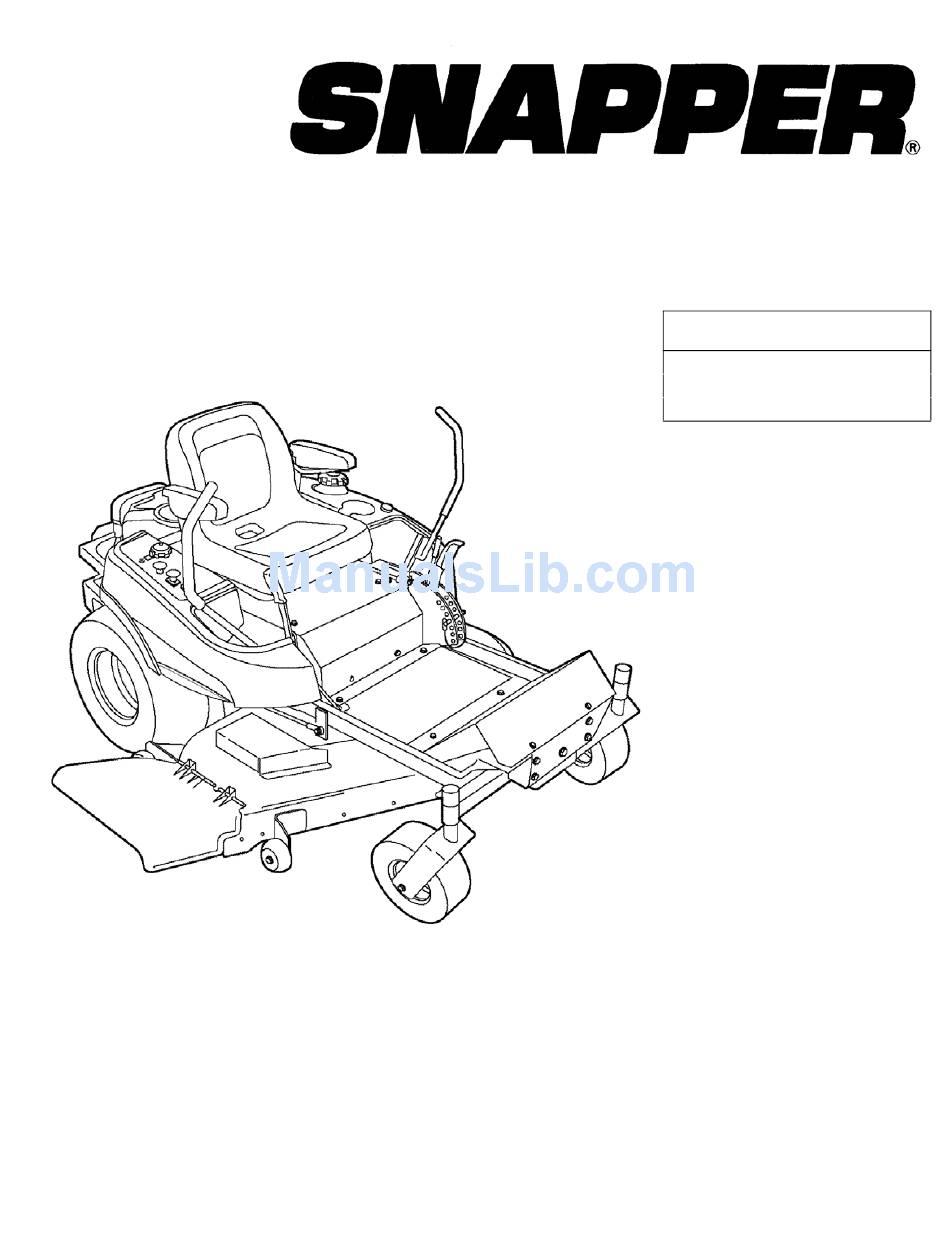

Snapper 355ZB2444 Parts Manual

Snapper 355ZB2444 Parts Manual

355z series 24hp hydro drive ztr
Hide thumbs Also See for 355ZB2444:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
24HP HYDRO DRIVE ZTR
Revision B,
3/26/2008
Parts Manual for
355Z SERIES
MODEL
355ZB2444 (5900681)
355ZB2450 (5900682)
355ZB2450CE (5900685)
Manual No.
TP 400-5275-B-HZ-N
5101225

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 355ZB2444 and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper 355ZB2444

Summary of Contents for Snapper 355ZB2444

  • Page 1 Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 Parts Manual for 24HP HYDRO DRIVE ZTR Revision B, 3/26/2008 355Z SERIES MODEL 355ZB2444 (5900681) 355ZB2450 (5900682) 355ZB2450CE (5900685) Manual No. 5101225 TP 400-5275-B-HZ-N...

  • Page 3: Table Of Contents

    PAGE GROUP Wheel & Tire Group Main Frame Group Seat & Floor Plate Group Fuel Tank & Replacement Parts Group Engine & PTO Group - 24 HP Briggs & Stratton Motion Control Group Parking Brake Group Pump Drive Group Hydraulic Group Transmission SERVICE PARTS Rear Bumper Group Decal Group - Brand &...

  • Page 4: Wheel & Tire Group

    Wheel & Tire Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 5 Wheel & Tire Group Item Part No Description 5022433S WHEEL & TIRE ASSEMBLY, 11 X 4.0 - 5, Complete 5022433X1 TIRE, Front, 11 X 4.0 - 5 (SV) 5022433SX2 WHEEL ASSEMBLY, Complete 2172353 VALVE STEM & CAP ASSEMBLY (SV) 5022579 BEARING, Roller 5021043 BEARING, Retainer...

  • Page 6: Main Frame Group

    Main Frame Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...

  • Page 7: Main Frame Group

    NUT, 5/16-18 HEX NYLON LOCK 5020095 GREASE FITTING, 1/4-28 STRAIGHT 5020602 COLLAR, 1" SPLIT 5402896D WELD, MAINFRAME, SNAPPER ZT, RED 5025303 SCREW, 5/16-18 X 1 FLAT HD SC 5100930 PAD, FRICTION, .375 X 1.25 X 4.00 5025284 NUT, 3/4-16 HEX NYLON LOCK...

  • Page 8: Seat & Floor Plate Group

    Seat & Floor Plate Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 9 Seat & Floor Plate Group Item Part No Description 5402937D PLATE, SEAT SUPPORT, CONS Z - RED 5025011X8 BOLT, 5/16-18 X 1 GD 5 YZ 5025292 WASHER, 5/16 GD. 9 FLAT 5025392 NUT, 5/16-18 HEX NYLOCK FLANGE 7078299 SPRING, SEAT SUPPORT 5025156 WASHER, 3/8 SAE 5100999...

  • Page 10: Fuel Tank & Replacement Parts Group

    Fuel Tank & Replacement Parts Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 11 Fuel Tank & Replacement Parts Group Item Part No Description 5101181 TANK, FUEL, LH 5048752 TANK, FUEL, RH 5048909D PLATE, FUEL TANK BADGE 5025011X6 BOLT, 5/16-18 X 3/4 GD5 5025155 WASHER, 5/16 SAE 5025170 WASHER, 5/16 LOCK YZ 5400836D BRACKET, REAR SUPPORT - LH - RED 5048763D BRACKET, REAR SUPPORT - RH 5022158...

  • Page 12: Engine & Pto Group - 24 Hp Briggs & Stratton

    Engine & PTO Group - 24 HP Briggs & Stratton Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 13 Engine & PTO Group - 24 HP Briggs & Stratton Item Part No Description * ENGINE, 24HP B&S, ELS Mod. #44M777-0121-E1 5023100 CLUTCH, #51110100, ELECTRIC, 1" SHAFT 5043636 CLUTCH ANCHOR PAD 5044617 WASHER, .34 X 1.25 X 10 GA 5023253 CAPSCREW, CRANKSHAFT, 7/16-20 x 3-1/4"YZ 5042132 SPACER, .45 X 1.62 X .37...

  • Page 14: Motion Control Group

    Motion Control Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 15 Motion Control Group Item Part No Description 5022068 GRIP, FOAM, 3/4 ID, 16 LONG 5025011X8 BOLT, 5/16-18 X 1 GD5 YZ 5025155 WASHER, 5/16 SAE 5025170 WASHER, 5/16 LOCK YZ 5048264 SPACER, .39 X .63 X 1.50 5025011X20 BOLT, 5/16-18 X 2-1/2" GD5 YZ 5025392 NUT, 5/16-18 HEX NYLOCK FLANGE 5025179X4...
  • Page 16 Motion Control Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 17 Motion Control Group Item Part No Description 5047055D WELD, HANDLE MOTION CONTROL - LH 5047056D WELD, HANDLE MOTION CONTROL - RH Footnotes: 24HP HYDRO DRIVE ZTR 355Z SERIES Note Manual No. 5101225 TP 400-5275-B-HZ-N...

  • Page 18: Parking Brake Group

    Parking Brake Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...

  • Page 19: Parking Brake Group

    Parking Brake Group Item Part No Description 5101058 ROD, BRAKE CTRL, LOWER - CONZ 5021102 SPRING, COMPRESSION 5020047 COLLAR, 5/16" SET 5402883D WELD, SHAFT, BRAKE HANDLE - RED 5402884D WELD, BRAKE SHAFT - RED 5044992 SPACER, .38 X .50 X 1.56 5025013X18 BOLT, 3/8-16 X 2-1/4 GD5 YZ 5025394...

  • Page 20: Pump Drive Group

    Pump Drive Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...

  • Page 21: Pump Drive Group

    Pump Drive Group Item Part No Description 5101296 PULLEY, CRANKSHAFT 5021079 IDLER PULLEY 5049184 SPACER, HYDRO PULLEY 5025013X24 BOLT, 3/8-16 X 3 GD5 YZ 5025013X16 BOLT, 3/8-16 X 2 GD5 YZ 5025156 WASHER, 3/8 SAE 5025394 NUT, 3/8-16 HEX NYLOCK FLANGE 5025165 WASHER, 3/8 FENDER 5101033...

  • Page 22: Hydraulic Group

    Hydraulic Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...

  • Page 23: Hydraulic Group

    Hydraulic Group Item Part No Description 5101026 TRANSMISSION, RH HYDRO-GEAR 5101027 TRANSMISSION, LH, HYDRO-GEAR 5025474 CLAMP, HOSE, 1/2 5101060 ROD, DUMP VALVE, LH - CONZ 5101061 ROD, DUMP VALVE, RH - CONZ 5025010X6 BOLT, 1/4-20 X 3/4 GD5 YZ 5025154 WASHER, 1/4 SAE 5025391 NUT, 1/4-20 HEX NYLOCK FLANGE...

  • Page 24: Transmission Service Parts

    Transmission SERVICE PARTS Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...

  • Page 25: Transmission Service Parts

    Transmission SERVICE PARTS Item Part No Description 5101026X1 OIL FILTER 5101026X2 SEAL, LIP, 18 X 32 X 7 5101026X3 SEAL, LIP, 17 X 40 X 7 5101026X4 RING, RET 2.06 INT 5101026X5 BEARING, BALL, 1.0 X 52 X 15 OPEN 6205M 120 5101026X6 FAN, 7", 10 BLADE 121 5101026X7...

  • Page 26: Rear Bumper Group

    Rear Bumper Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...

  • Page 27: Rear Bumper Group

    Rear Bumper Group Item Part No Description 5402844D WELD, BUMPER - CONS Z - SNP RED 5023484 PLUG, PANEL, 1.25 - BLACK 5025013X8 BOLT, 3/8-16 X 1 GD 5 YZ 5025156 WASHER, 3/8 SAE 5025394 NUT, 3/8-16 HEX NYLOCK FLANGE Footnotes: 24HP HYDRO DRIVE ZTR 355Z SERIES...

  • Page 28: Decal Group - Brand & Model

    Decal Group - Brand & Model Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 29 Part No Description 1731955 DECAL, SNAPPER-SILVER/BLACK 8.5LG 5100476 DECAL, BADGE, LH, SNAPPER 5100477 DECAL, BADGE, RH, SNAPPER 1725072 DECAL, TOUCH UP PAINT SNAPPER 5101327 DECAL, 355Z 24HP, SNAPPER Footnotes: 24HP HYDRO DRIVE ZTR 355Z SERIES Note (LOCATED UNDER SEAT PLATE) Manual No.

  • Page 30: Decal Group - Safety & Common

    Decal Group - Safety & Common Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 31 Decal Group - Safety & Common Item Part No Description 5100280 DECAL, THROTTLE CONTROL 5048970 DECAL, IGNITION SWITCH 5100710 DECAL, MAIN 1725703 DECAL, HEIGHT OF CUT 5100136 DECAL, DANGER, MOWER 5100137 DECAL, DANGER, MOWER DISCHARGE 1722789 DECAL, 44"- SILVER ON BLACK W/STRIPE 1722790 DECAL, 50"...

  • Page 32: Export Decal Group - Safety & Common

    Export Decal Group - Safety & Common Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 33 Export Decal Group - Safety & Common Item Part No Description 5061108 DECAL, MAIN, CE 5100280 DECAL, THROTTLE CONTROL 5048970 DECAL, IGNITION SWITCH 5101062 DECAL, TRANSAXLE RELEASE 5101102 DECAL, BELT & BLADE, CONS Z 1725703 DECAL, HEIGHT OF CUT 1722789 DECAL, 44"- SILVER ON BLACK W/STRIPE 1722790 DECAL, 50"- SILVER ON BLACK W/STRIPE...

  • Page 34: Deck Lift Group

    Deck Lift Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 35 Deck Lift Group Item Part No Description 5025394 NUT, 3/8-16 HEX NYLOCK FLANGE 5025013X8 BOLT, 3/8-16 X 1 GD5 YZ 5025156 WASHER, 3/8 SAE 5403057D WELD, HANDLE, DECK LIFT - RED 5025013X6 BOLT, 3/8-16 X 3/4 GD5 YZ 5403041D WELD, SHAFT, REAR DECK LIFT - RED 5025128 NUT, 3/8-16 HEX SERRATED FLANGE 5044960...
  • Page 36 Deck Lift Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 37 Deck Lift Group Item Part No Description 5400839D WELD, QUICK RELEASE HANDLE, REAR - RED 5025356 BOLT, 3/8-16 X 3/8", 1/2" SHOULDER 5048733D LINK, DECK LIFT SHAFT 5020639 SPRING, EXTENSION 5023198 COVER, VINYL HANDLE 5025203X6 PIN, COTTER, 1/8" X 3/4 5023202 WASHER, WAVE, M10 5048884D...

  • Page 38: 44" & 50" Mower Deck - Belt & Idler Group

    44" & 50" Mower Deck - Belt & Idler Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 39 44" & 50" Mower Deck - Belt & Idler Group Item Part No Description 5023256 BELT, #7-8060, 151" E.L. 5044960 SPACER, .39 X 1.00 X .25 5044933 SPACER, .39 X .75 X .38 5023156 BOLT, 5/16-18 X 1 1/4 FLANGE 5025013X22 BOLT, 3/8-16 X 2-3/4"...

  • Page 40: 44" & 50" Mower Deck - Housing, Arbors & Blades Group

    44" & 50" Mower Deck - Housing, Arbors & Blades Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 41 BOLT-RD HD SH SQ NK 1/4-20X0. 875 G5 BLK 1705115 PLUG-BUTTON FOR 0.344 SQ HOLE BLACK POLY 5401091D GUARD, BELT - RH, 44", SNAPPER RED 1960518 NUT-PUSH FOR .250 DIA THREAD .500 OD BLK 1960353 WASHER, 0.250 (0.26 ID X 0.84 OD X .12 THK) BLK 1704873 CLAMP, WIRE, .312DIA .
  • Page 42 44" & 50" Mower Deck - Housing, Arbors & Blades Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 43 44" & 50" Mower Deck - Housing, Arbors & Blades Group Item Part No Description 5025144X14 BOLT, CARRIAGE, 1/4-20 X 1.25, GD5, BLACK 5600125 DECK SHELL W/ DECALS, 50 - SNP (2008) 5048446D GUARD, BELT, RH 1708229A BLADE, MOWER, 18-1/8 5600127 EXPORT DECK SHELL W/DECALS, 50 - SNP (2008) Footnotes:...

  • Page 44: Mower Deck - Rollers Group

    44" & 50" Mower Deck - Rollers Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...

  • Page 45: 44" & 50" Mower Deck - Rollers Group

    44" & 50" Mower Deck - Rollers Group Item Part No Description 1714760 WHEEL, 2.00 WIDE 3.92 DIA 0.531 ID POLY 5025392 NUT, 5/16-18 HEX NYLOCK FLANGE 5025145X6 BOLT, 5/16-18 X 3/4", CARRIAGE 5025394 NUT, 3/8-16 HEX NYLOCK FLANGE 5025145X8 BOLT, 5/16-18 X 1, CARRIAGE 1724538A SHORT BLOWOUT BAFFLE BLACK...

  • Page 46: Instrument Control Panel Group

    Instrument Control Panel Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...

  • Page 47: Instrument Control Panel Group

    Instrument Control Panel Group Item Part No Description 5047143 CABLE, THROTTLE CONTROL 5025095 NUT, 1/4-20 HEX NYLON LOCK 5025010X6 BOLT, 1/4-20 X 3/4 GD5 YZ 1709188 PLUG, .820 X 1.44 HOLE, BLACK PLASTIC 5022269 O-RING, 7/8 ID X 1/16 W 5022222 RING, SWITCH RETAINER 5025035...

  • Page 48: Electrical Group

    Electrical Group Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...

  • Page 49: Electrical Group

    Electrical Group Item Part No Description 5020927 SWITCH, IGNITION 5022789 KEY, IGNITION MOLDED (SV) 5022790 COVER (SV) 5022791 PLASTIC NUT (SV) 1725523 HOUR METER, DIGITAL 5022180 SWITCH, PTO 5402849 WIRE HARNESS, CONSUMER Z 5023488 BATTERY CABLE, POSITIVE, 22" 1716368 SWITCH, SEAT, GRAY, NC (BOLT IN) 5100541 SWITCH, SEAT, GRAY, NC (TWIST IN) 1960536...

  • Page 50: Wiring Schematic - 24 Hp Briggs & Stratton

    Wiring Schematic - 24 HP Briggs & Stratton Manual No. 5101225 24HP HYDRO DRIVE ZTR TP 400-5275-B-HZ-N 355Z SERIES...
  • Page 51 Wiring Schematic - 24 HP Briggs & Stratton Item Part No Description WIRING SCHEMATIC INCLUDES HARNESS # 5402849 WIRING SCHEMATIC INCLUDES HARNESS # 5402479 Footnotes: 24HP HYDRO DRIVE ZTR 355Z SERIES Note (CE / EXPORT MODELS ONLY) Manual No. 5101225 TP 400-5275-B-HZ-N...
  • Page 54 IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 www.snapper.com Copyright © 2008 Briggs & Stratton Corporation Milwaukee, WI USA. All Rights Reserved Manual No. 5101225...
