Roller Bar Leveling

(select models)
The rollers on this Zero Turn unit are not intended to ride
on the ground. DO NOT adjust rollers to ride on the
ground. Rollers riding on the ground will damage turf and
or unit.
1. First level the mower deck using the procedure found
in MOWER DECK LEVELING.
2. With the mower installed, place the rider on a
smooth, level surface such as a concrete floor. Turn
the front wheels so they are straight.
3. Place the mower cutting height pin in the 4th hole
from the bottom (C, Figure 20).
4. Measure the distance between the outside ends of
the roller bar and the ground. If there is more than
1/8" (3mm) difference between the measurements on
each side, proceed to step 5.
5. Locate the roller bar leveling eccentric and locknuts
(A, Figure 22). Loosen the locknut and turn the
eccentric to raise or lower a side. When the correct
level is achieved, hold the eccentric with a wrench
and tighten the locknut. Repeat step 4 if necessary.
TP 300-7337-01-CH-SMN
A

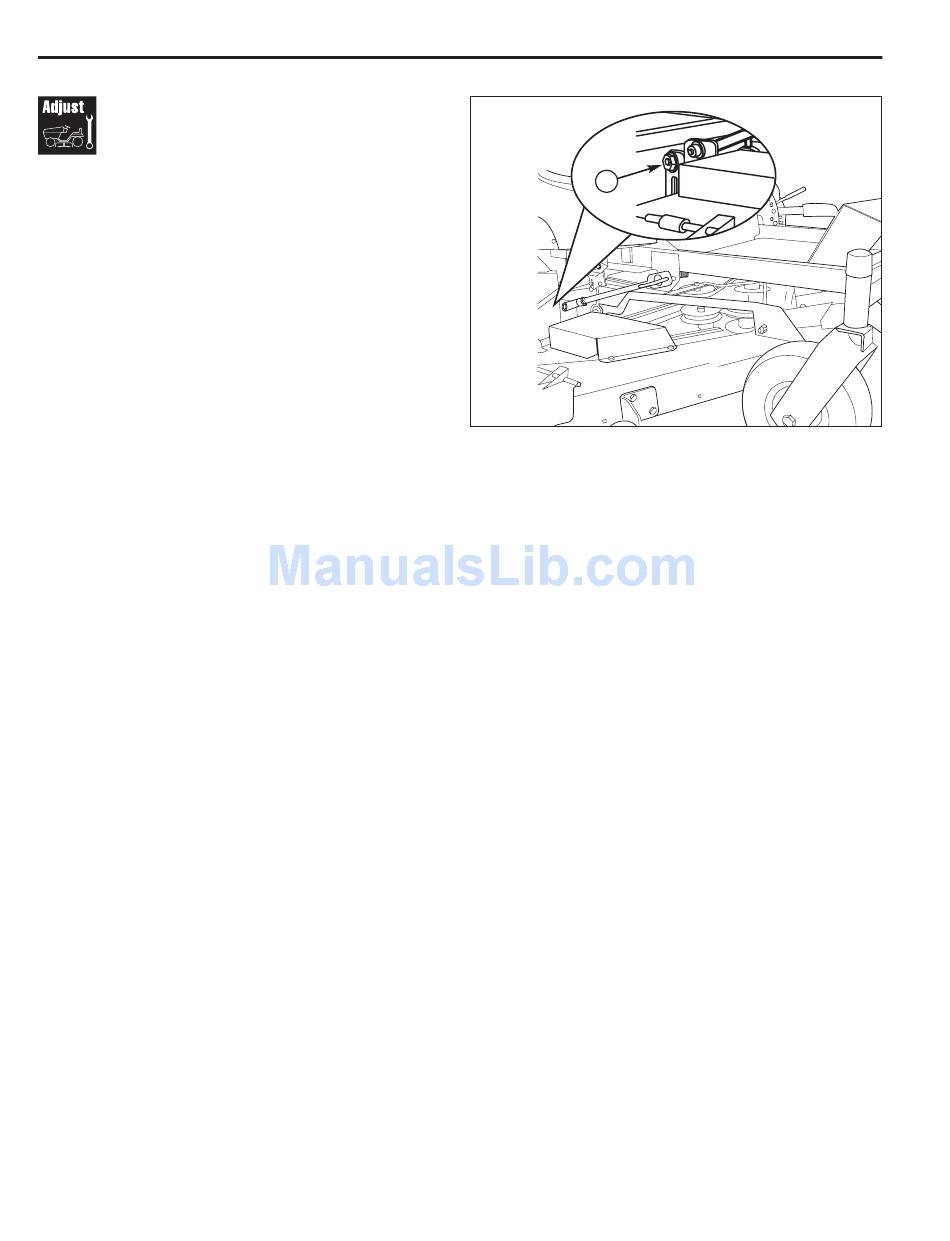

Figure 22. Roller Bar Leveling
A. Eccentric and Locknut
