DRIVING INSTRUCTION
REMOTUS BC7400 USA
Variant 1 (variant 2, see page 4)
MANUAL BC7400 No. 926137-000 USA
Version: A0 Approved by: HH

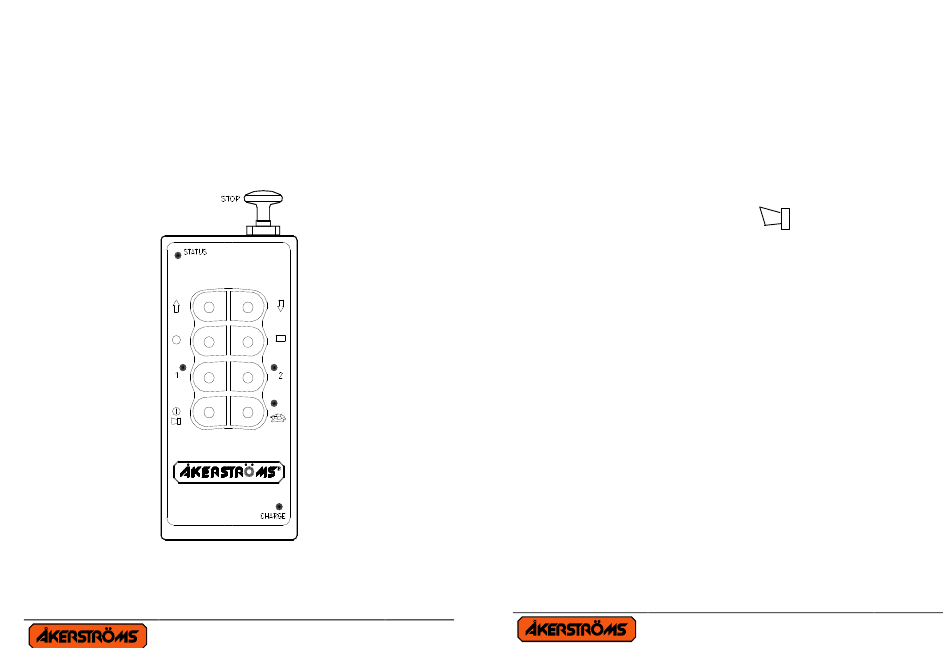

TRANSMITTER ON
Pull out the stop button and the transmitter is switched on. The
operation indicator lamp (STATUS) starts blinking and the
transmitter is on.
MAIN CONTACTOR ON
Then the transmitter is on press the
Main Contactor in the receiver (the Main Contactor of the telpher)
and the telpher is ready for operation.
NORMAL RUN
The transmitter is designed with two pushbuttons for UP/DOWN
and two for FORWARD/BACKWARD. Each button is divided into
2 steps (a perceptible resistance), which facilitates the running at a
certain speed. The first speed is obtained when the pushbutton is
half compressed and the second speed is obtained when the
pushbutton is totally compressed.
All the motions can be run simultaneously and the motions stop
when the pushbutton is released, otherwise make an QUICK STOP.
Page 1 (11)
•
. This activates the
MANUAL BC7400 No. 926137-000 USA
Version: A0 Approved by: HH
Page 2 (11)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Akerstroms REMOTUS BC7400 USA
Summary of Contents for Akerstroms REMOTUS BC7400 USA
- Page 1 TRANSMITTER ON DRIVING INSTRUCTION Pull out the stop button and the transmitter is switched on. The REMOTUS BC7400 USA operation indicator lamp (STATUS) starts blinking and the transmitter is on. Variant 1 (variant 2, see page 4) MAIN CONTACTOR ON •...
- Page 2 MICRO RUN Variant 2 Push in the button for MICRO and the diode lamp for micro lights. The micro-run movements are only at lowest speed in micro-run mode irrespective of the compression of the pushbuttons. The buttons are looped so that only one movement can be operated at a time.
- Page 3 TRANSMITTER ON QUICK STOP Pull out the stop button and the transmitter is switched on. The Depress the STOP button for QUICK STOP. operation indicator lamp (STATUS) starts blinking and the transmitter is on. AUTOMATIC SWITCH OFF FUNCTION MAIN CONTACTOR ON The indicator lamp for operation goes out and the Main Contactor is •, de-energized.
- Page 4 RUN DOWN BATTERY DISCHARGED BATTERY. The transmitter is equipped with an indicator lamp for battery status A Li-Ion battery is environment conformed, but as usually, all (STATUS). The lamp blinks slowly when the battery voltage is batteries shall be handed back for recycling. When the battery will normal, but starts to blink rapidly when it falls.
- Page 5 INSTRUCTIONS FOR CRANE OPERATORS Find out where the crane's main power disconnector is in These instructions have to be followed. Marked order to be able to quickly switch off if required. Check that the radio transmitter operates on the crane, Never hand over the transmitter to anybody who has not got which you are going to drive (ex.
- Page 6 FCC Identifier OG4BC7418 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
