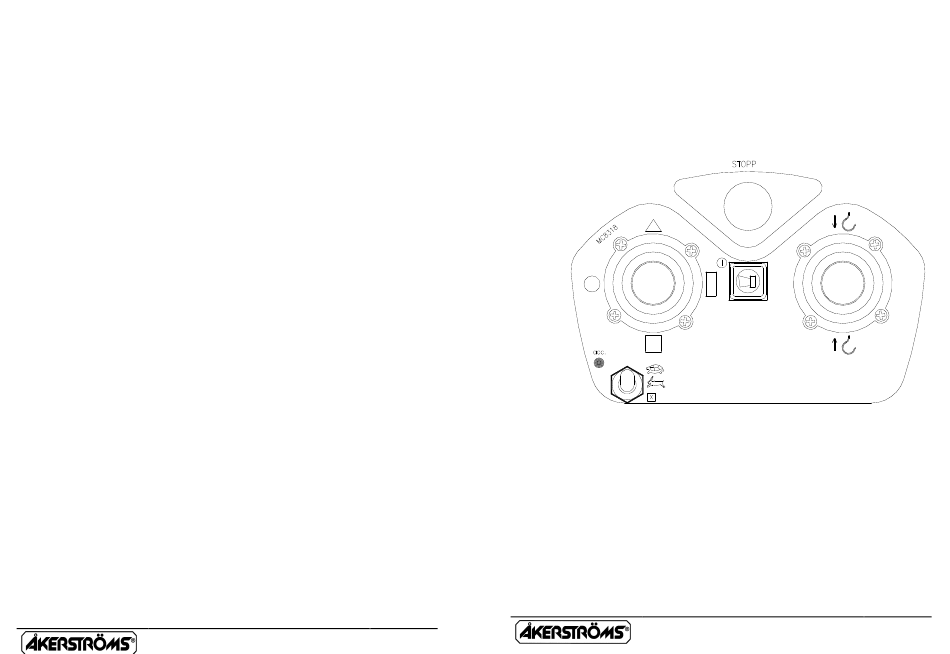

- Page 1 Variant 1 DRIVING INSTRUCTION REMOTUS MC8318 923477-000 USA MANUAL MC8318 No. 923477-000 USA Page. 2 (12) MANUAL MC8318 No. 923477-000 USA Page. 1 (12) Version: A0 Approved by: HH Version: A0 Approved by: HH...
- Page 2 Variant 2 TRANSMITTER ON Pull out the STOP button and the transmitter will make a self-test during 0,5 seconds. The operation indicator lamp (acc.) starts blinking and the transmitter is on. MAIN CONTACTOR ON Then the transmitter is on press the signal button and this actuates the Main Contactor in the receiver (the Main Contactor of the traverse closes) and the traverse is ready for operation.
- Page 3 MICRO RUN (NOT SIMULTANEOUS) SIGNAL A signal can be emitted at any time during the run and is obtained as Set the selector for MICRO / NORMAL / EXTRA in position MICRO. long as the push button switch is depressed. The micro-run movements are only at lowest speed in micro-run mode irrespective of the deflections of the manipulator.
- Page 4 TRANSMITTER OFF RUN DOWN ACCUMULATOR MAIN CONTACTOR OFF The transmitter is equipped with an indicator lamp (green and yellow) Depress the STOP button which switches off the transmitter. At the for accumulator status. The lamp blinks green when the accumulator same time the Main Contactor is deactivated (the Main Contactor of voltage is normal(?7,2V), but starts to blink yellow when it falls the traverse cuts out).
- Page 5 CHARGING INSTRUCTIONS INSTRUCTIONS FOR CRANE OPERATORS These instructions have to be followed. Marked ∗ The accumulator has got power for 10 hours continuous operation. ∗ Charging time 2 hours (quick-charge) there upon automatically Check that the radiotransmitter operates on the crane which you changes to maintenance charging which does not need supervising.
- Page 6 If you loose control of the crane movements, release the FCC Identifier OG4MC8318 manipulators to obtain the zero position in order to stop the crane. If still it does not stop, actuate the STOP function. This device complies with Part 15 of the FCC rules. Operation is Find out where the crane's main power disconnector is, in order subject to the following two conditions: (1) This device may not cause to be able to quickly switch off the power if required.
