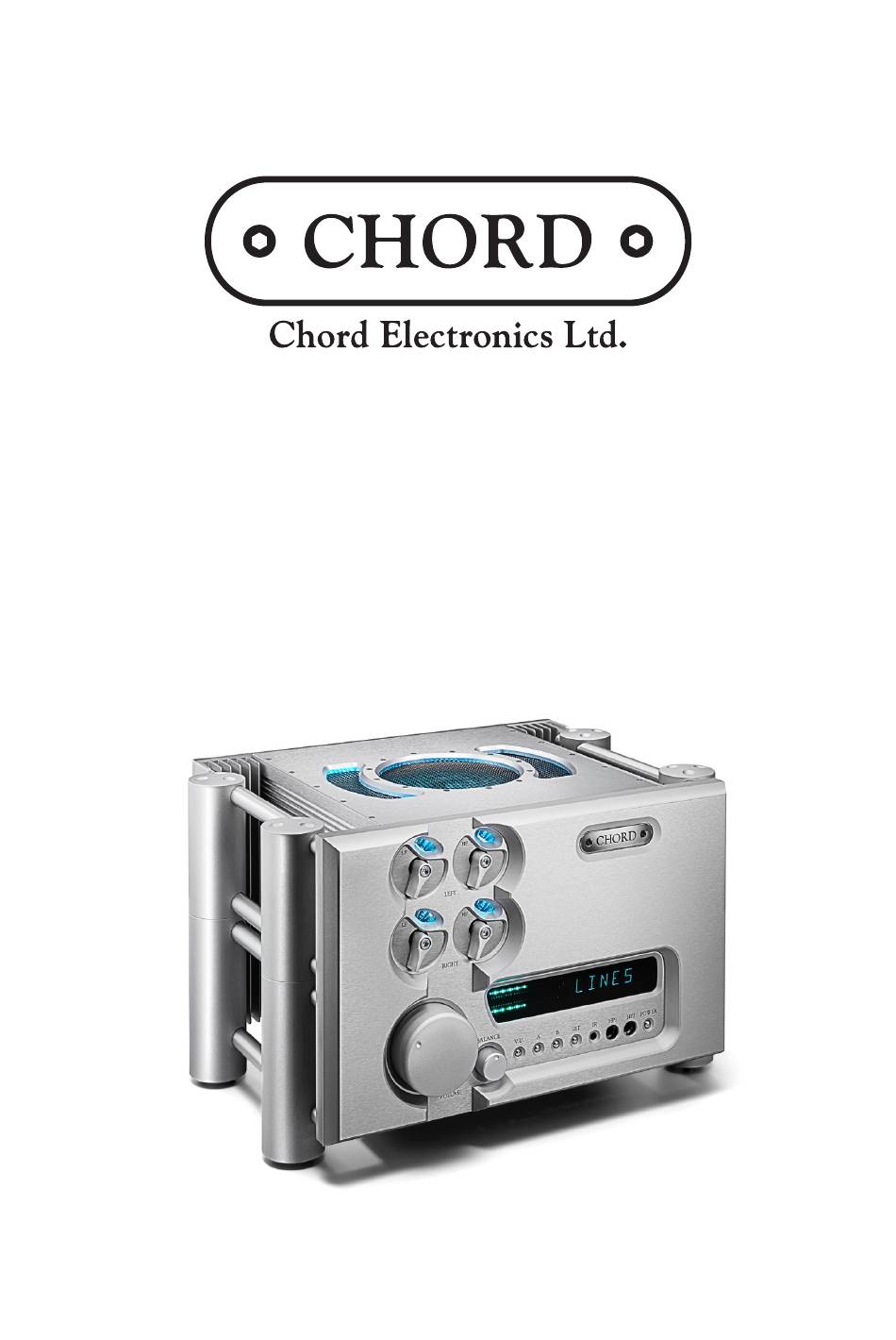

ULTIMA PRE – REFERENCE PREAMPLIFIER
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTIMA PRE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chord ULTIMA PRE

Summary of Contents for Chord ULTIMA PRE

  • Page 1 ULTIMA PRE – REFERENCE PREAMPLIFIER USER MANUAL...

  • Page 2: Table Of Contents

    Contents Product description Page 3 Inventory Page 3 Setting up Page 4 Safety warnings Page 5 AC Power connection Page 6 AC Connector Page 6 Connecting your equipment Page 7 Input connections Page 8 Output connections Page 9 Recording Page 10 Headphones Page 12 Everyday use...

  • Page 3: Product Description

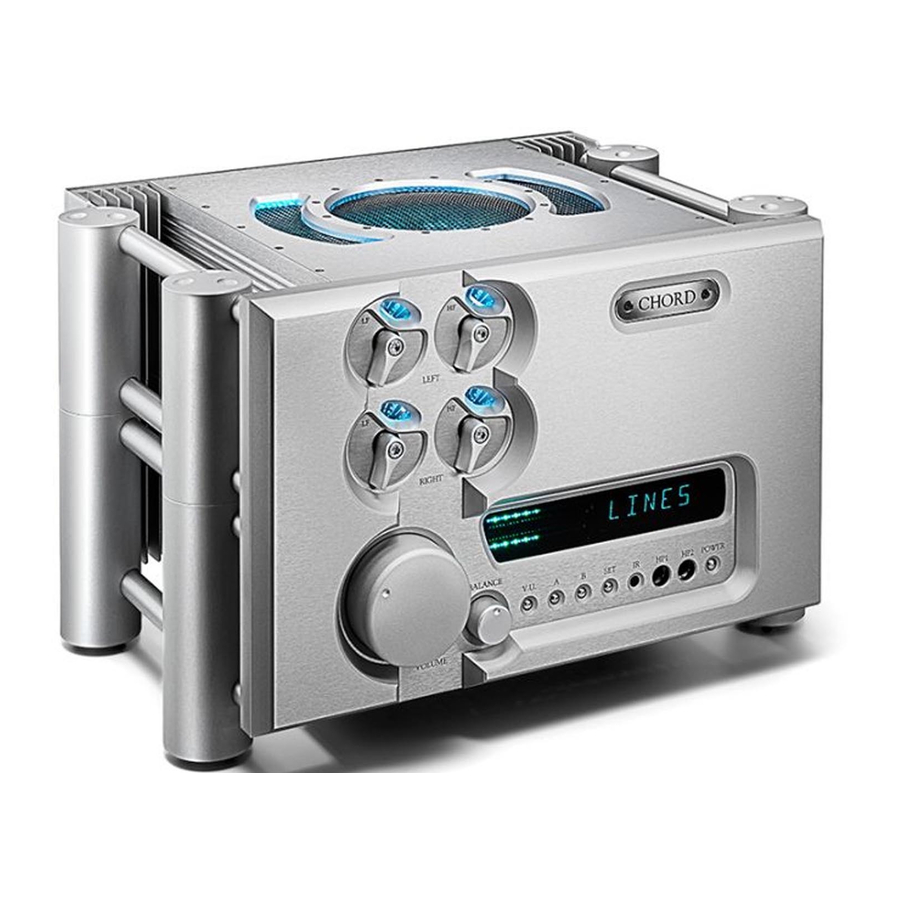

    Product Description The Ultima Pre is the ultimate high-end reference product and is the perfect partner to the Ultima mono block amplifiers. In the same double height format to match it has all the features of the already advanced CPA5000 but now includes three pairs of outputs, true dual mono construction with separate power supplies for each channel, and separate left and right frequency EQ adjust.

  • Page 4: Setting Up

    Ventilation Your Ultima pre should have at least 5cm of clear space all around it to ensure a free flow of air at all times. We do not recommend that you place Ultima Pre directly on a carpet. AC lead and plug All Chord equipment comes supplied with the correct power lead and plug.

  • Page 5: Safety Warnings

    Safety Warnings It is important that your Ultima Pre is earthed at all times via its own mains lead. Failure to do this may be hazardous. The power supply components within the Ultima Pre are designed to operate at lethal voltages and energy levels.

  • Page 6: Ac Power Connection

    AC Power connection The AC power connector of Ultima Pre is at the back of the unit. Plug the female end (socket) of the power cord into the power connector of the preamplifier, and the male end(plug) of the power cord into AC wall socket or AC extension socket.

  • Page 7: Connecting Your Equipment

    Chord amplifiers are supplied with and designed to be connected using balanced inputs. The interconnecting cables you use will depend on the available input and output sockets on your other equipment. We have installed unbalanced inputs on all Chord equipment, thus enabling you to mix Chord Electronics and other manufacturer’s equipment.

  • Page 8: Input Connections

    It does not matter which input you choose just select the same type of connection that your source has. Note: Moving coil turntables without an internal amplifier will require an external phono stage amplifier such as the Chord Symphonic before connecting to the Ultima Pre.

  • Page 9: Output Connections

    Output Connections You need to connect the outputs on the back of the Ultima Pre to a power amplifier in order to drive your loudspeakers. There are three pairs of balanced XLR outputs and three pairs of RCA phono outputs, each of which will drive a 68 ohm load.

  • Page 10: Recording

    Recording You can record an input from another audio source or two sources at the same time. If you’ve been using a tape recorder as an input source, it will already be connected to the 7 or 8 input sockets. If you haven’t, first connect the tape’s output to the 7 or 8 input sockets.
  • Page 11 EQ Frequency Controls On the front panel are the EQ frequency controls. There are four controls, two for each channel, one for high frequency and one for low frequency. Using these you can adjust the low and high frequency response for the left or the right channel. The settings affect all the inputs and outputs but not the AV bypass or tape output loop.

  • Page 12: Headphones

    AV processor reaches the power amplifier exactly as if it were connected directly. This has the advantage of allowing the Ultima Pre to remain in an AV system to give the best possible stereo two channel playback whilst still being able to switch to AV bypass mode to allow the processor to playback multichannel film content.

  • Page 13: Everyday Use

    Select the input source Press and hold button A on the front panel to select Bus A. Your Ultima Pre should be set to Bus A for normal operation and the display will read the last selected input with no dots underneath. The selected...
  • Page 14 Cycle of input selection options for Bus A To select Bus B press and hold the B button on the front panel. The currently selected line input will be displayed with dots underneath to indicate Bus B. The selected input will automatically be sent to the tape recording T2 phono outputs: Press and release the B button to cycle through the inputs:...
  • Page 15 The volume range runs from 0 to 98 and is displayed on the Ultima Pre display as you change the volume. If the outputs are muted, a volume change will un-mute the outputs to prevent large changes in volume from damaging your loudspeakers.

  • Page 16: The Remote Control

    The Ultima Pre is supplied with the system remote control that is a universal controller for all Chord products, televisions and DVD players. Full instructions can be found in the System Remote Manual supplied but for the purposes of controlling the Ultima Pre the main functions are listed on the next few pages.
  • Page 17 Press OP1 to select the main output. Press BYPASS (OP2) to select AV Bypass output. OP1+2 selects the EQ frequency control. Mute Press the mute key to mute the Ultima Pre. To un-mute Press the mute key again, or select an output, or change the volume.
  • Page 18 However, older audio equipment may have an output voltage of less than 2V, in which case you may like to adjust the input gain. Note: When using the Chord QBD76 please set the line gain to 0.5. Increasing the input gain 1.

  • Page 19: Maintenance

    AAA batteries as shown inside the battery compartment. Servicing There are no user serviceable parts in your Chord amplifier, and it should only be serviced by Chord Electronics Limited or their expressly approved Service Agents. Frequently asked questions Why aren’t any of the remote control buttons working?

  • Page 20: Trigger Outputs

    The external trigger should be connected via a standard 1/8 inch / 3.5mm (mono or stereo) jack plug to the socket fitted to the rear of the unit. The trigger outputs will go high when the Ultima Pre front panel power switch is pressed on.
