5.
To assemble form, insert punches in the top and bottom vertical seam joint holes of sheets and pull them to one side so
that the finished form will be the smallest diameter. Install and tighten 3/8" x 1" bolts in all seams and remove punches.
Install and tighten bottom bolts. NOTE: Before commencing assembly of form, one option is to lay polyethylene and
compact the second layer of gravel without the form in the way.
6.
Rotate forms so that grain bin door will be centered on full length form sheet.
7.
Thread one nut onto each arm of form bracket so that one half
inch of thread is protruding. Insert brackets into forms as shown
in Figure 2 and fasten outside nuts. Outside nut should be flush
with end of arm when tightened.
8.
Position form so screeder can rotate freely around entire form.
Drive a 20" piece of 10M rebar through a bracket, level form and
tighten set screw (rebar should not extend more than ¼" above
bracket). Using the same method, level form at approximately
Sealform Concrete Form
quarter points or third points around circumference.
procedure for remaining brackets.
9.
Once the form is levelled, pack gravel in any spaces under form.
Lay polyethylene over gravel base and under form. Place and
Grain Bin
compact gravel on the poly as per Figure 3 and Table 4. Place
a ring of 10M rebar on top of bottom leg of brackets and wire tie
Installation and Storage Instructions
it to the corner of the bracket, as shown in Figure 3. Tie a
second ring under top arm of brackets, with joints staggered
from those of bottom ring. Lay floor rebar grid above top rebar ring as shown in Figure 3 and Figure 4 and tie into place.
Support grid at numerous intersections with small pieces of concrete, ensuring that there will be at least two inches of
poured concrete above grid.

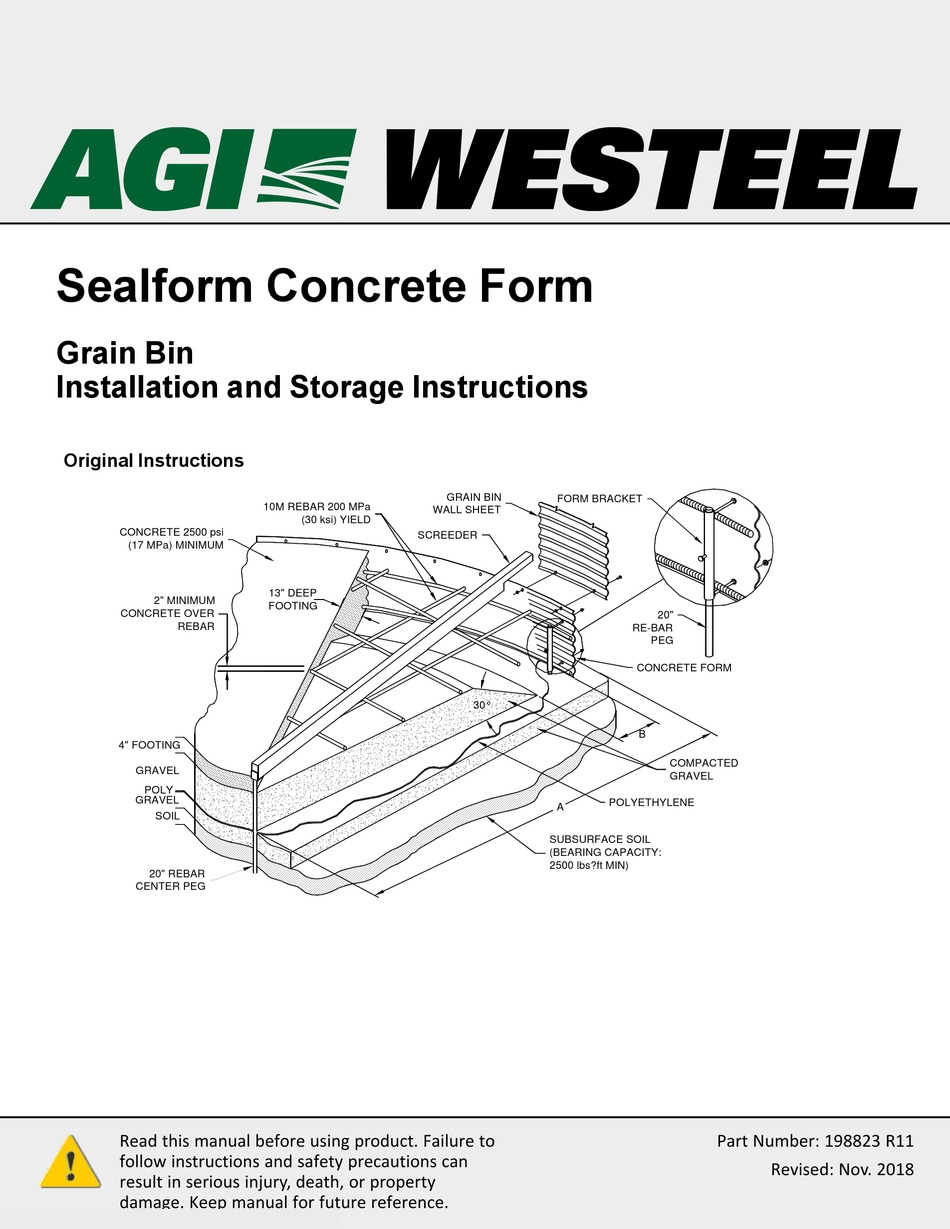

Original Instructions
CONCRETE 2500 psi
(17 MPa) MINIMUM
2" MINIMUM
CONCRETE OVER
REBAR
4" FOOTING
GRAVEL
POLY
GRAVEL
SOIL
20" REBAR
CENTER PEG
Read this manual before using product. Failure to
follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
10M REBAR 200 MPa
WALL SHEET
(30 ksi) YIELD
SCREEDER
13" DEEP
FOOTING
Page 2
20"
RE-BAR
PEG
Repeat
TUBULAR
STEEL
FORM
BRACKET
3
" X 1"
8
BOLT
GRAIN BIN
FORM BRACKET
30°
POLYETHYLENE
A
SUBSURFACE SOIL
(BEARING CAPACITY:
2500 lbs?ft MIN)
3
"
8
NUTS
20"
RE-BAR
PEG
CONCRETE FORM
B
COMPACTED
GRAVEL
Part Number: 198823 R11
Revised: Nov. 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sealform Concrete Form and is the answer not in the manual?

Questions and answers

Related Manuals for Westeel Sealform Concrete Form

Summary of Contents for Westeel Sealform Concrete Form

  • Page 1 Drive a 20” piece of 10M rebar through a bracket, level form and tighten set screw (rebar should not extend more than ¼” above " bracket). Using the same method, level form at approximately Sealform Concrete Form NUTS quarter points or third points around circumference. Repeat...
  • Page 2 New in this Manual The following changes have been made in this revision of the manual: Description Section Updated Safety Decal Locations 2.6. Safety Decal Locations and Details on page 7...

  • Page 3: Table Of Contents

    5.1. Assembly Safety ........................16 5.2. Site Selection and Preparation....................16 6. Specifications ............................20 6.1. Concrete and Rebar Specifications ..................20 7. Appendix ............................... 21 7.1. Sealform Materials List......................21 8. Limited Warranty: Westeel Grain Bin Products .................. 22 198823 R11...

  • Page 4: Introduction

    SEALFORM CONCRETE FORM – GRAIN BIN 1. Introduction This manual describes how to assemble a Westeel Sealform Concrete Form. Before assembling the sealform, please read this manual. Familiarize yourself with the process and the necessary precautions for efficient and safe assembly.

  • Page 5: Safety

    SEALFORM CONCRETE FORM – GRAIN BIN 2. SAFETY 2. Safety 2.1. Safety Alert Symbol and Signal Words This safety alert symbol indicates important safety messages in this manual. When you see this symbol, be alert to the possibility of injury or death, carefully read the message that follows, and inform others.

  • Page 6: Safety Decals

    2. SAFETY SEALFORM CONCRETE FORM – GRAIN BIN Safety Glasses • Wear safety glasses at all times to protect eyes from debris. Coveralls • Wear coveralls to protect skin. Hard Hat • Wear a hard hat to help protect your head.

  • Page 7: Safety Decal Locations And Details

    SEALFORM CONCRETE FORM – GRAIN BIN 2. SAFETY 2.6. Safety Decal Locations and Details Replicas of the safety decals that are attached to the sealform and their messages are shown in the figure(s) that follow. Safe operation and use of the sealform requires that you familiarize yourself with the various safety decals and the areas or particular functions that the decals apply to, as well as the safety precautions that must be taken to avoid serious injury, death, or damage.
  • Page 8 2. SAFETY SEALFORM CONCRETE FORM – GRAIN BIN WARNING WARNING SAFETY INSTRUCTIONS ENTRAPMENT HAZARD • Read operator’s manual and all safety decals Never enter the bin when loading or before assembling, using, or servicing bin. unloading grain. • Close/latch all access doors when not in use.
  • Page 9 SEALFORM CONCRETE FORM – GRAIN BIN 2. SAFETY NOTICE WARNING When equipped with aeration system, to prevent roof and/or bin damage: • Consult dealer to install adequate roof venting. • Ensure all roof vents are open and unobstructed. • Discontinue use of aeration fan if roof vents become obstructed with ice.

  • Page 10: Before You Begin

    43,500 lbs. per sq. in. (300 MPa) re-bar. The foundation designs included in this manual are suggestions only, and will vary according to local soil conditions. Westeel will not assume any liability for results arising from their use.

  • Page 11: Methods Of Installation

    Local safety authorities should be contacted as standards vary between jurisdictions. 3.4. Methods of Installation The recommendations for assembling and installing Westeel grain bins must be closely followed to achieve the full strength of the bin and to achieve adequate weather sealing. The product warranty is void if: 1.

  • Page 12: Product Storage

    3. BEFORE YOU BEGIN SEALFORM CONCRETE FORM – GRAIN BIN 9. If installing an existing bin on a hopper, make sure the bin is designed for a hopper application, and that the foundation is capable of withstanding the substantial point loads that the hopper legs apply. If uprights are present, make sure that they are supported.

  • Page 13: Grain Bin Use

    • Never enter a loaded grain bin for any reason. Grain can be a killer. 3.8. Important Notes • Westeel does not provide a foundation design for this product, and is not liable for any damages or injuries related to inadequately designed or constructed foundations. Customers must contract professional services for all foundation design and construction work.
  • Page 14 3. BEFORE YOU BEGIN SEALFORM CONCRETE FORM – GRAIN BIN • Contact local power officials for minimum power line clearance. • See Section 3.5. – Critical Assembly Requirements on page 11 for mandatory siting and assembly requirements. • Store only non-corrosive, free-flowing materials up to 55 lbs/ft...

  • Page 15: Preparation

    SEALFORM CONCRETE FORM – GRAIN BIN 4. PREPARATION 4. Preparation 4.1. Check Shipment Unload the parts at the assembly site and compare the packing slip to the shipment. Ensure that all items have arrived and that none are damaged. Report damaged parts or shortages immediately to the delivering carrier, followed by a confirming letter requesting inspection by the carrier, if required.

  • Page 16: Assembly

    5. ASSEMBLY SEALFORM CONCRETE FORM – GRAIN BIN 5. Assembly Before continuing, ensure you have completely read and understood this manual’s Safety section, in addition to the safety information in the section(s) below. 5.1. Assembly Safety • Do not take chances with safety. The components can be large, heavy, and hard to handle.
  • Page 17 Table 1: Presumptive Bearing Capacity of Soils Class Material Capacity (lb/ft (KPa) SEALFORM CONCRETE FORM – GRAIN BIN 5. ASSEMBLY Hard dry consolidated clay 10000 Loose coarse to medium; medium compact fine sand 8000 3. Cut a screeder board to the dimensions shown in...
  • Page 18 5. ASSEMBLY SEALFORM CONCRETE FORM – GRAIN BIN Note Before commencing assembly of the form, one option is to lay polyethylene and compact the second layer of gravel without the form in the way. 6. Rotate the forms so that the grain bin door will be centered on full length form sheet.
  • Page 19 Lay floor rebar grid above top rebar ring as shown in Figure 3 and Figure 4 and tie into place. SEALFORM CONCRETE FORM – GRAIN BIN 5. ASSEMBLY Support grid at numerous intersections with small pieces of concrete, ensuring that there will be at least two inches of poured concrete above grid.

  • Page 20: Specifications

    6. SPECIFICATIONS SEALFORM CONCRETE FORM – GRAIN BIN 6. Specifications 6.1. Concrete and Rebar Specifications Table 4: Concrete Specifications Table 3. Concrete Specifications O/S Radius of Footing Width Concrete Model Gravel “A” (in) “B” (in) (cu. Yd.) O/S Radius of Gravel “A” (in) Footing Width “B”...

  • Page 21: Appendix

    SEALFORM CONCRETE FORM – GRAIN BIN 7. APPENDIX 7. Appendix 7.1. Sealform Materials List Table 6. Concrete Form 235300 235307 Wall Sheet Bundle 235301 235308 Hardware Pail 235322 235323 Table 7. Wall Sheet Bundle 235301 235308 Wall Sheet - Long...

  • Page 22: Limited Warranty: Westeel Grain Bin Products

    (the "goods") subject to the following terms and limitations, (the "warranty"): Duration of Warranty This warranty will run from the date of purchase from the dealer or distributor, authorized by Westeel. The duration of the warranty is limited as follows: 5 years...
  • Page 23 2. improper storage of the goods both prior to and after purchase; 3. damage caused by, or in the course of, installation or assembly; 4. any use of the goods which is not an intended use as specified in Westeel's published product literature, or otherwise specified by Westeel in writing;...
  • Page 24 8. LIMITED WARRANTY: WESTEEL GRAIN BIN SEALFORM CONCRETE FORM – GRAIN BIN PRODUCTS competent jurisdiction to be void or unenforceable, in whole or in part, such provision shall be deemed severable and will not affect or impair the legal validity of any other provision of the warranty.
  • Page 25 SEALFORM CONCRETE FORM – GRAIN BIN 8. LIMITED WARRANTY: WESTEEL GRAIN BIN PRODUCTS 198823 R11...
  • Page 26 450 Desautels Street P.O. Box 792 Winnipeg, Manitoba, R3C 2N5 Canada Phone: (866) 299-4312 Fax: (204) 235-0796 Website: www.westeel.com Email: info@westeel.com ©Ag Growth International Inc. 2018 Printed in Canada...
