Section 3 - MAINTENANCE

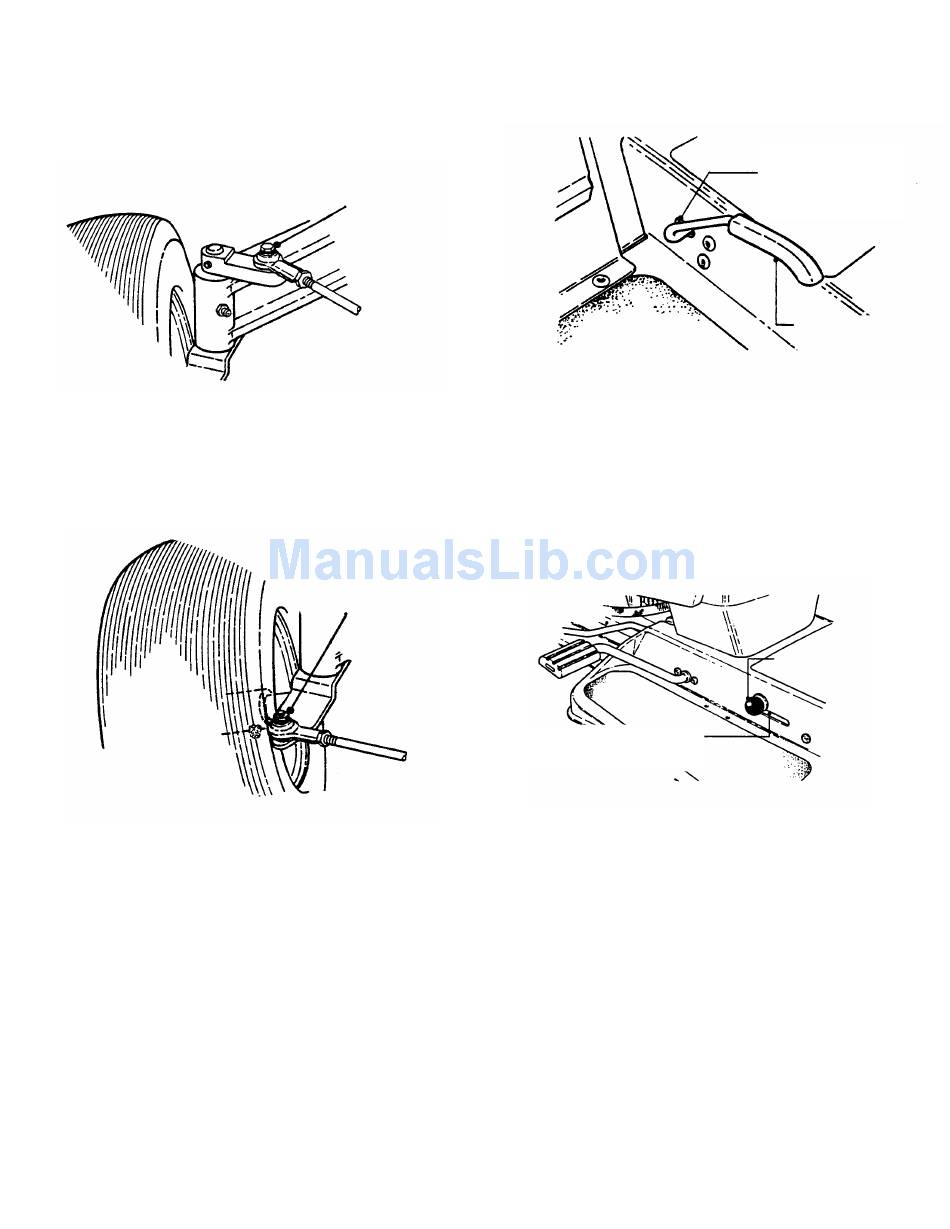

6. Steering Drag Link

Lubricate both ends of steering drag link with a small
amount of SAE30 oil. See Figure 3.10.
FIGURE 3.10
3.3.4. TRACTOR LUBRICATION
(Continued From Previous Page)

7. Steering Tie Rod

Lubricate both ends of steering tie rod with a small
amount of SAE30 oil. See Figure 3.11.
FIGURE 3.11

8. Blade Engagement Mechanism

Using SAE30 oil, lubricate the blade engagement
mechanism pivot points, which are located on the
R.H. underside of tractor. See Figure 3.12.
DRAG LINK
LUBRICATION
POINT
LUBRICATE
BOTH ENDS
OF TIE ROD
LUBRICATE COMPONENTS ON
UNDERSIDE OF TRACTOR

3.4 SERVICE - ANNUALLY

16
FIGURE 3.12

9. Park Brake Lever

Using general purpose grease, lubricate the park
brake lever mechanism pivot points, which are
located on the left hand underside of tractor. See
Figure 3.13. Mechanism with a thin coat of 30 wt.
motor oil.
FIGURE 3.13
10.

Deck Lift Mechanism

Lubricate all wear and pivot points of the deck lift
Perform all maintenance as described in Section
"SERVICE - EVERY 25 OPERATING HOURS". Also
see service schedule.
3.4.1.

ENGINE

1. Service engine according to engine owner's
manual.
LUBRICATE
COMPONENTS ON
UNDERSIDE OF
TRACTOR
BLADE
ENGAGEMENT
LEVER
PARK BRAKE
LEVER
