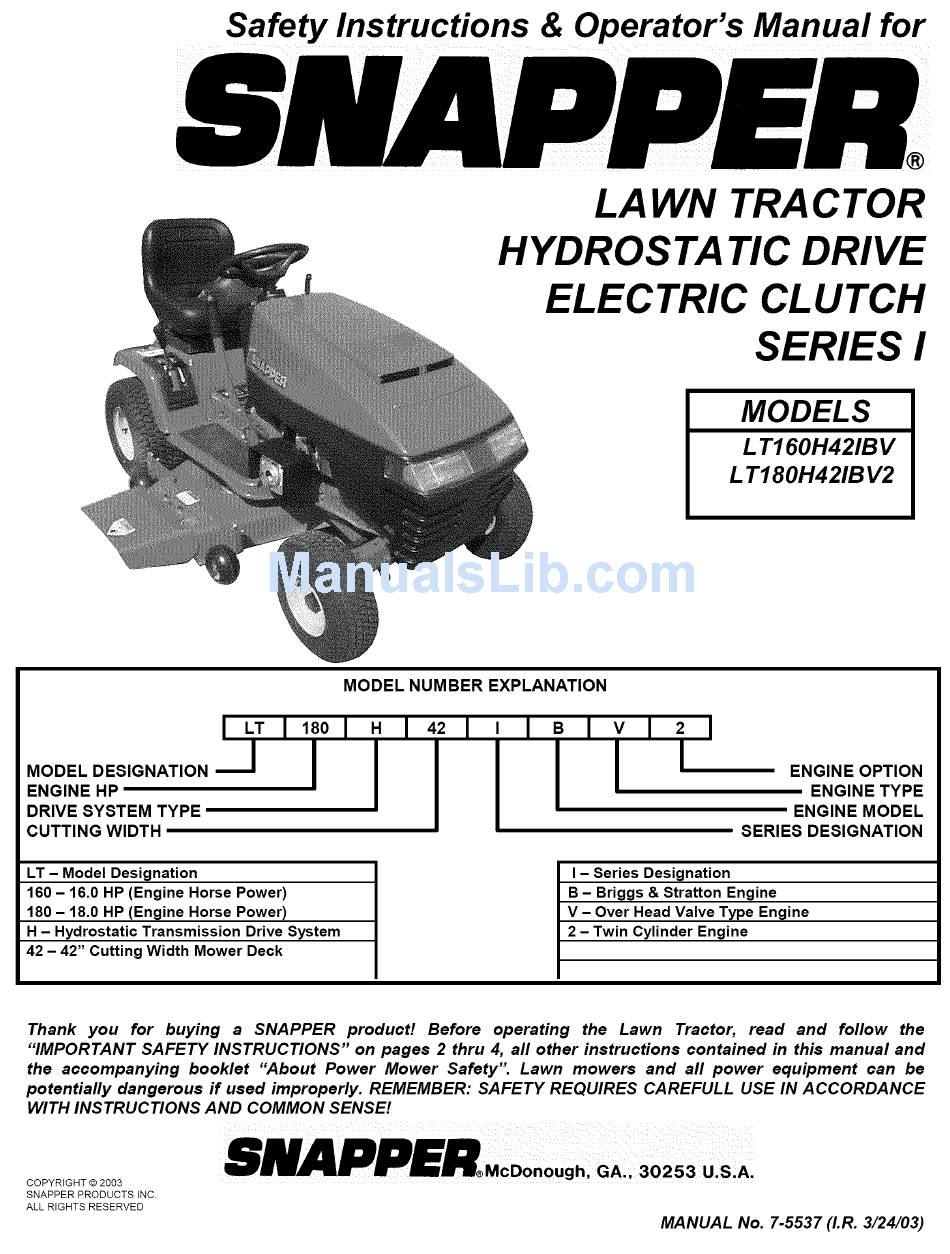

Safety Instructions
& Operator's Manual for
LAWN TRA C TOR
HYDROSTA TIC DRIVE
ELECTRIC
CLUTCH
SERIES I
MODELS
L T160H421B V
L T180H421BV2
MODEL NUMBER EXPLANATION
I
LT
I 1;
MODEL DESIGNATION
----]
ENGINE HP
DRIVE SYSTEM TYPE
CUTTING WIDTH
;I
I i_ I r I 2 I
I
ENGINE OPTION
ENGINE TYPE
ENGINE MODEL
SERIES DESIGNATION
LT - Model Designation
160 - 16.0 HP (Engine Horse Power)
180 - 18.0 HP (Engine Horse Power)
H - Hydrostatic Transmission
Drive System
42 - 42" Cutting Width Mower Deck
I - Series Designation
B - Briggs & Stratton Engine
V - Over Head Valve Type Engine
2 - Twin Cylinder Engine
Thank you
for buying
a SNAPPER
product!
Before
operating
the Lawn
Tractor,
read and follow
the
"IMPORTANT
SAFETY INSTRUCTIONS"
on pages 2 thru 4, all other instructions
contained in this manual and
the accompanying
booklet
"About
Power Mower Safety"
Lawn mowers
and all power equipment
can be
potentially dangerous if used improperly. REMEMBER: SAFETY REQUIRES CAREFULL USE IN ACCORDANCE
WITH INSTRUCTIONS
AND COMMON SENSE!
alll_uu===.,
W
coonough,
o,,, 0
COPYRIGHT
© 2003
SNAPPER
PRODUCTS
INC.
ALL RIGHTS RESERVED
MANUAL No. 7-5537 (I.R. 3/24/03)
