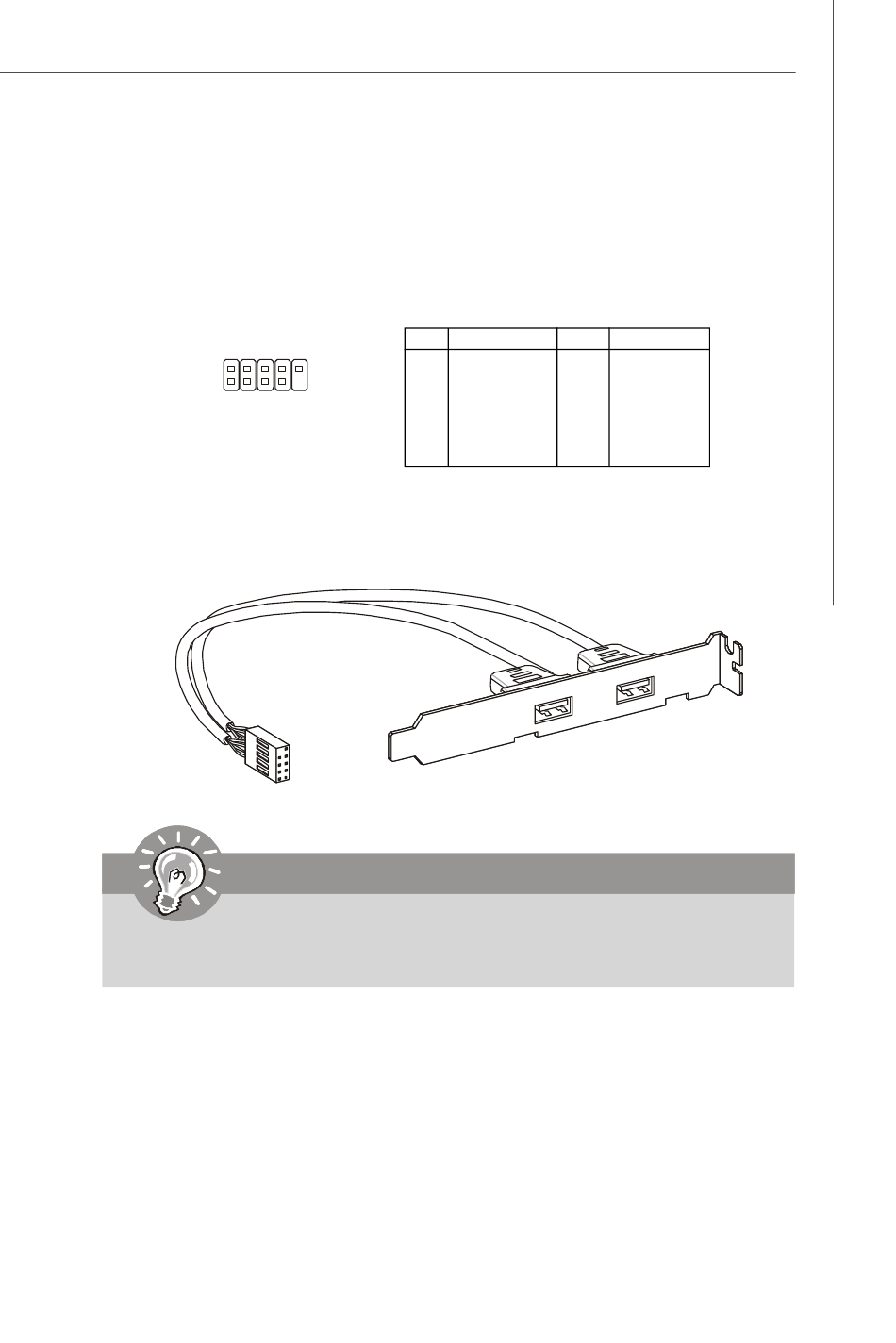

Front USB Connector: JUSB1, JUSB2
This connector, compliant with Intel
necting high-speed USB interface peripherals such as USB HDD, digital cameras,
M P3 players, printers, modems and the like.
JUSB1/2
2
1
Important
Note that the pins of VCC and GND must be connected correctly to avoid
possible damage.
®
I/O Connectivity Design Guide, is ideal for con-
PIN SIGNAL
1 VCC
10
9
3 USB0-
5 USB0+
7 GND
9 Key (no pin)
Hardware Setup
Pin Definition
PIN SIGNAL
2 VCC
4 USB1-
6 USB1+
8 GND
10 NC
USB 2.0 Bracket
(Optional)
2-13
