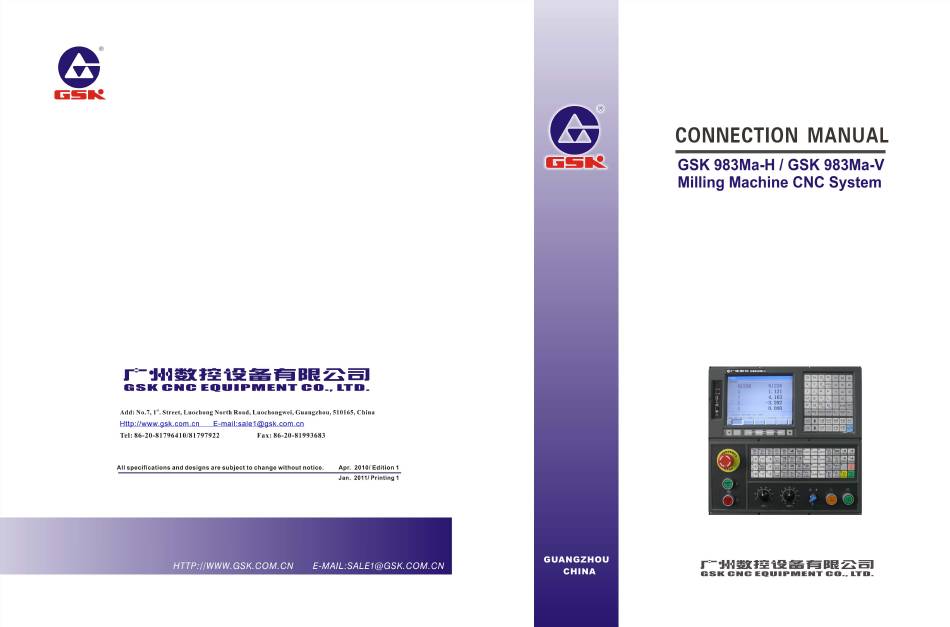

- Page 2 “impossible” or “unallowable”. Copyright is reserved to GSK CNC Equipment Co., Ltd. It is illegal for any organization or individual to publish or reprint this manual. GSK CNC Equipment Co., Ltd. reserves the right to ascertain their legal liability.
-
Page 3: Safety Responsibility
Be responsible for the failure to observe the provisions for operation, adjustment, —— maintenance, installation and storage in the manual. This manual is reserved by end user. We are full of heartfelt gratitude to you for supporting us in the use of GSK’s products. - Page 4 GSK983Ma-H/V Milling CNC System Connection Manual Contents Precautions ..........................1 1. NC Unit Interfaces........................3 2. Interconnect Block Diagram ..................... 4 3. Connection between NC Unit and DA98D Drive Unit (without Brake) ........5 4. Connection between NC Unit and DA98D Drive Unit (Z Axis with Brake) ......6 5.
- Page 5 GSK983Ma-H/V Milling CNC System Connection Manual...
- Page 6 GSK983Ma-H/V Milling CNC System Connection Manual Precautions 1. The system-matched power box is exclusive for GSK983Ma. Do NOT supply this power to other devices (such as brake and magnetic valve); otherwise, serious danger may occur! 2. Requirements for electrical cabinet The electrical cabinet adopts full-enclosed structure and dustproof design.
- Page 7 GSK983Ma-H/V Milling CNC System Connection Manual 5. Wiring The joints between wires and the system or drive unit should be tight and firm. The low-current type wires such as signal wires and control wires should be laid far away from heavy current and electromagnetic interference, and be arranged in an uncurled manner as far as possible, because winding annularly could easily cause the acquisition of interference signal.
- Page 22 GSK983Ma-H/V Milling CNC System Connection Manual 15. I/O Points Definition (X1) Terminal Signal Name Signal Function Address High/low level selection for group X32 X32.COM X32 common port X axis “+” direction limit (short it to 0V when *+LX（fixed） X32.0 X32.0 unused) X axis “-”...
- Page 23 GSK983Ma-H/V Milling CNC System Connection Manual X38.5 X38.5 X38.6 X38.6 X38.7 X38.7 High/low level selection for group X48 X48.COM X48 common port X48.0 X48.0 5th axis “+” direction limit *+L5（fixed） X48.1 X48.1 5th axis “-” direction limit *-L5（fixed） X48.2 X48.2 X48.3 X48.3 X48.4...
- Page 24 GSK983Ma-H/V Milling CNC System Connection Manual Y0.3 Y0.3 Y0.4 Y0.4 Y0.5 Y0.5 Y0.6 Y0.6 Y0.7 Y0.7 Y1.0 Y1.0 Y1.1 Y1.1 Y1.2 Y1.2 Y1.3 Y1.3 Y1.4 Y1.4 Y1.5 Y1.5 Y1.6 Y1.6 Y1.7 Y1.7 Y2.0 Y2.0 Y2.1 Y2.1 Y2.2 Y2.2 Y2.3 Y2.3 24V power ground +24V 24V power output...
- Page 25 GSK983Ma-H/V Milling CNC System Connection Manual 16. Instructions for Installing Mechanical Position Detection Switch for Spindle Orientation To further improve the accuracy and reliability of the spindle orientation, and to protect the tool magazine and tools, the 983M system adds mechanical position confirmation signal. During tool change, besides checking the orientation in-position signal of spindle servo drive unit, the system also checks the mechanical position confirmation signal for spindle orientation.
- Page 26 GSK983Ma-H/V Milling CNC System Connection Manual 17. Instruction for installing mechanical position detection switch at Z axis 2nd reference point To further improve the accuracy and reliability of the spindle orientation, and to protect the tool magazine and tools, the 983M system adds mechanical position confirmation signal for Z axis 2 reference point.
- Page 32 GSK983Ma-H/V Milling CNC System Connection Manual GSK983Ma-H/V Milling CNC System Connection Manual Version Upgrading Records Date Version Contents 2010-4-7 First version...
